Screen Display 15

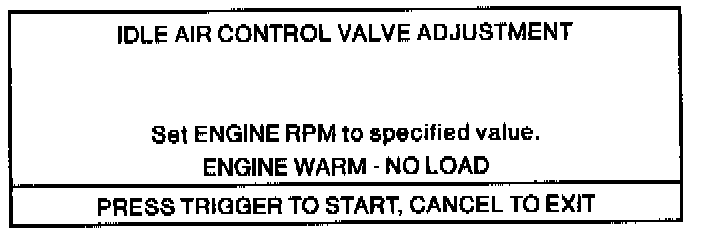

Screen Display #15A:




Screen Display #15B:





15. Screen Display # 15 (A and B).
Follow the instructions on Screen Display # 15A to adjust the idle air control valve. Press TRIGGER to start. An adjustment screen (15B) will appear. Engine RPM, Engine Coolant Temperature (ECT), Throttle Position (TP) voltage, Air-Conditioner Switch (AC SW) signal, and Idle Switch (IDLE SW) condition are displayed. The IAC valve setting is held at 0%, while the IAC valve is manually positioned for the proper engine RPM. Press CANCEL to exit to Screen Display # 13, where you can select THROTTLE SENSOR ADJUST if needed. Press CANCEL again (while in Screen Display # 13) to exit to Screen Display #9. Turn the menu dial to highlight another function, ACTIVE TESTS. Press TRIGGER. Screen Display # 16 will appear.

NOTE: ACTIVE TESTS function is available only on ENGINE.
