Screen Display 16

Screen Display #16A:

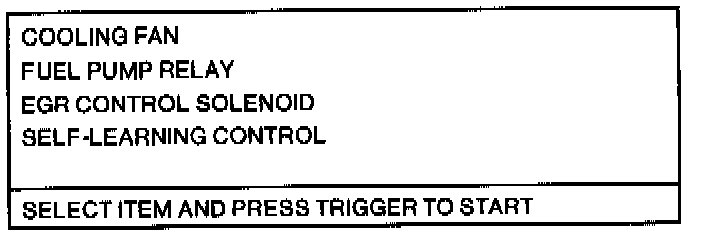

Screen Display #16B:





16. Screen Display # 16 (A and B).
Turn the menu dial to highlight the item in question. Keep turning the menu dial to see what items are available on the next screen (Screen Display # 16B). For a description of each test, turn the menu dial to highlight the first item, FUEL INJECTION. Press TRIGGER. Screen Display # 17 will appear.
