Screen Display 18

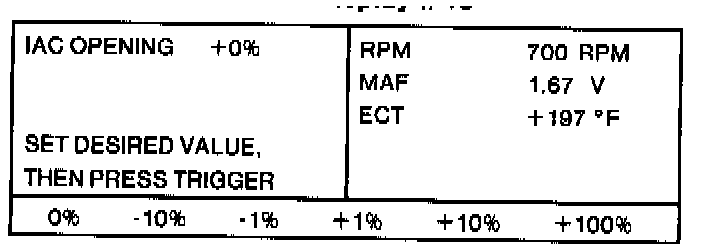

Screen Display #18:

18. Screen Display # 18.
The IAC valve opening can be varied from 0% (closed) to 100% (wide open) by pressing number keys, 3 through 8, to set the desired value. Engine RPM, MAF sensor voltage, and ECT sensor temperature are displayed. When this test is completed, press CANCEL to return to Screen Display # 16. Turn the menu dial to highlight ENGINE COOLANT TEMP. Press TRIGGER. Screen Display # 19 will appear.
