Screen Display 19

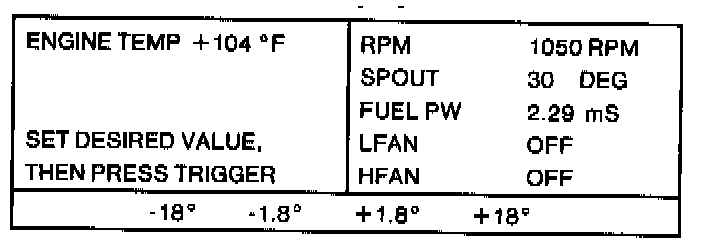

Screen Display #19:

Screen Display # 19.
The Engine Coolant Temperature level can be varied from -30° C to +110° C (-22° F to +230° F) by pressing any of the number keys, 4 through 7. Engine RPM, SPOUT, FUEL PW, LFAN and HFAN status are displayed. When this test is completed, press CANCEL to return to Screen Display # 16. Turn the menu dial to highlight IGNITION TIMING. Press TRIGGER. Screen Display #20 will appear.
