Screen Display 21

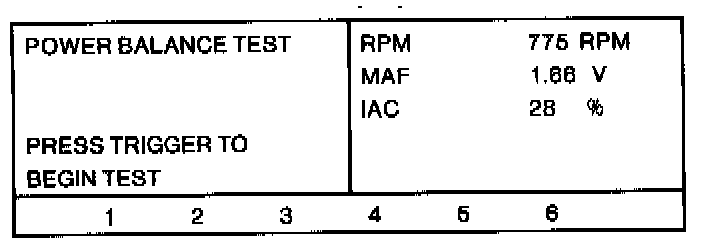

Screen Display #21:

Screen Display #21.
Fuel injectors to any or all of the six cylinders can be initialized by pressing key number 3 for cylinder # 1, key number 4 for cylinder #2, etc. Engine RPM, MAF sensor voltage and IAC valve opening are displayed. When this test is completed, press CANCEL to return to Screen Display # 16. Turn the menu dial to highlight COOLING FAN. Press TRIGGER. Screen Display #22 will appear.
