Screen Display 24

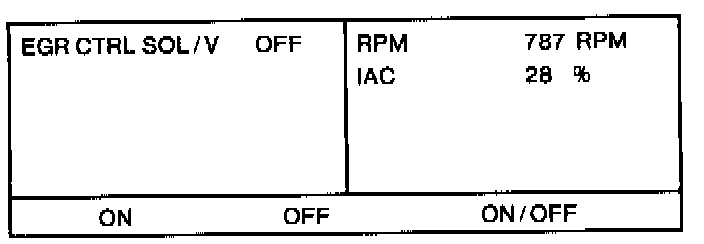

Screen Display #24:

Screen Display # 24.
The EGR Control Solenoid can be set to ON, OFF, or ON/OFF (solenoid is repeatedly cycled on and off in 3 second intervals) by pressing the number key 3, 5 or 7. Engine RPM and IAC valve opening are displayed. When this test is completed, press CANCEL to return to Screen Display # 16. Turn the menu dial to highlight SELF-LEARNING CONTROL. Press TRIGGER. Screen Display #25 will appear.
