Screen Display 27


Turn the menu dial, while in Screen Display #8, to highlight AUTOMATIC TRANSMISSION. Press TRIGGER. Screen Display #27 will appear.

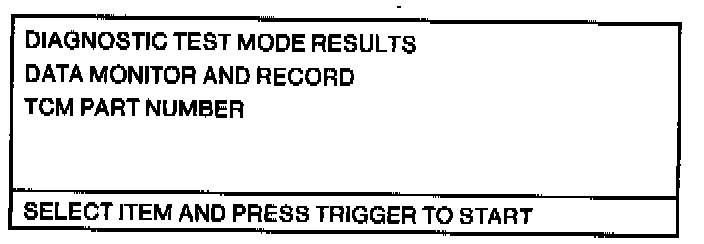

Screen Display #27:





Screen Display #27.

Screen Display #27 displays the functions available on the AUTOMATIC TRANSMISSION. Follow the logic used in the above ENGINE functions to view each function displayed on this screen and to see what options are available in each function. The following screen display (#28) is an example of a screen from the DIAGNOSTIC TEST MODE RESULTS function:
