Screen Display 7

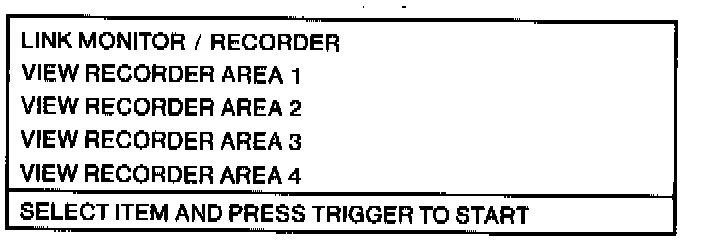

Screen Display #7:





7. Screen Display #7.
LINK MONITOR/RECORD will be the first item on this screen, and it will be highlighted. Press TRIGGER. Screen Display #8 will appear.
