Screen Display 8

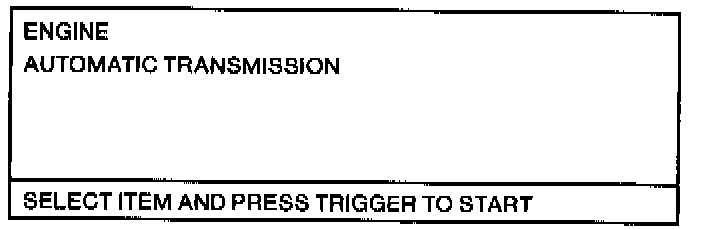

Screen Display #8:





8. Screen Display #8.
Turn the menu dial to highlight either ENGINE or AUTOMATIC TRANSMISSION, depending on what you are testing. For example, highlight ENGINE and press TRIGGER. All functions available on ENGINE will appear on Screen Display #9.
