Engine Controls

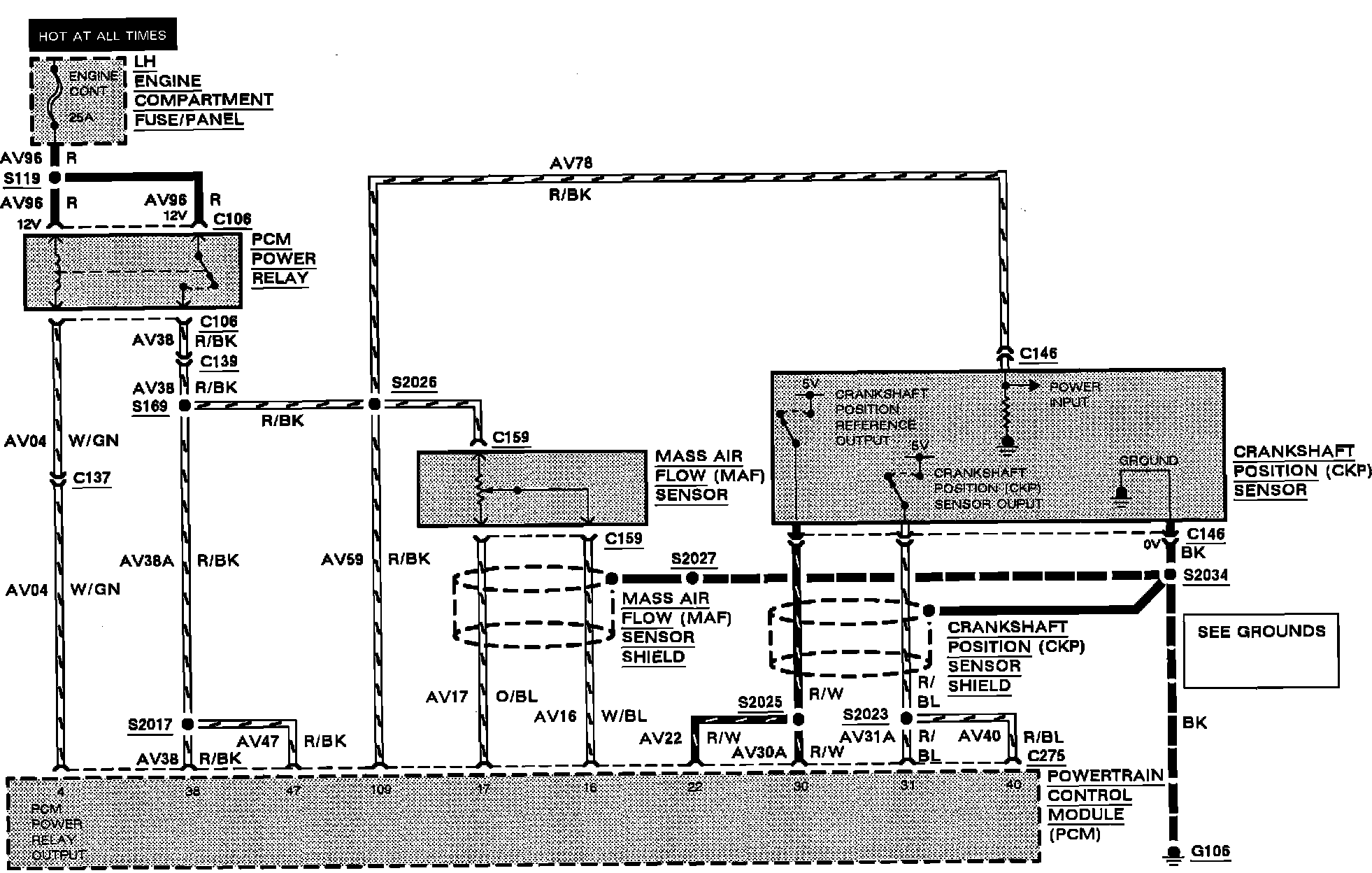

Electronic Engine Control:

CRANKSHAFT POSITION SENSOR
MASS AIR FLOW SENSOR (MAF)
PCM POWER RELAY
POWERTRAIN CONTROL MODULE (PCM)

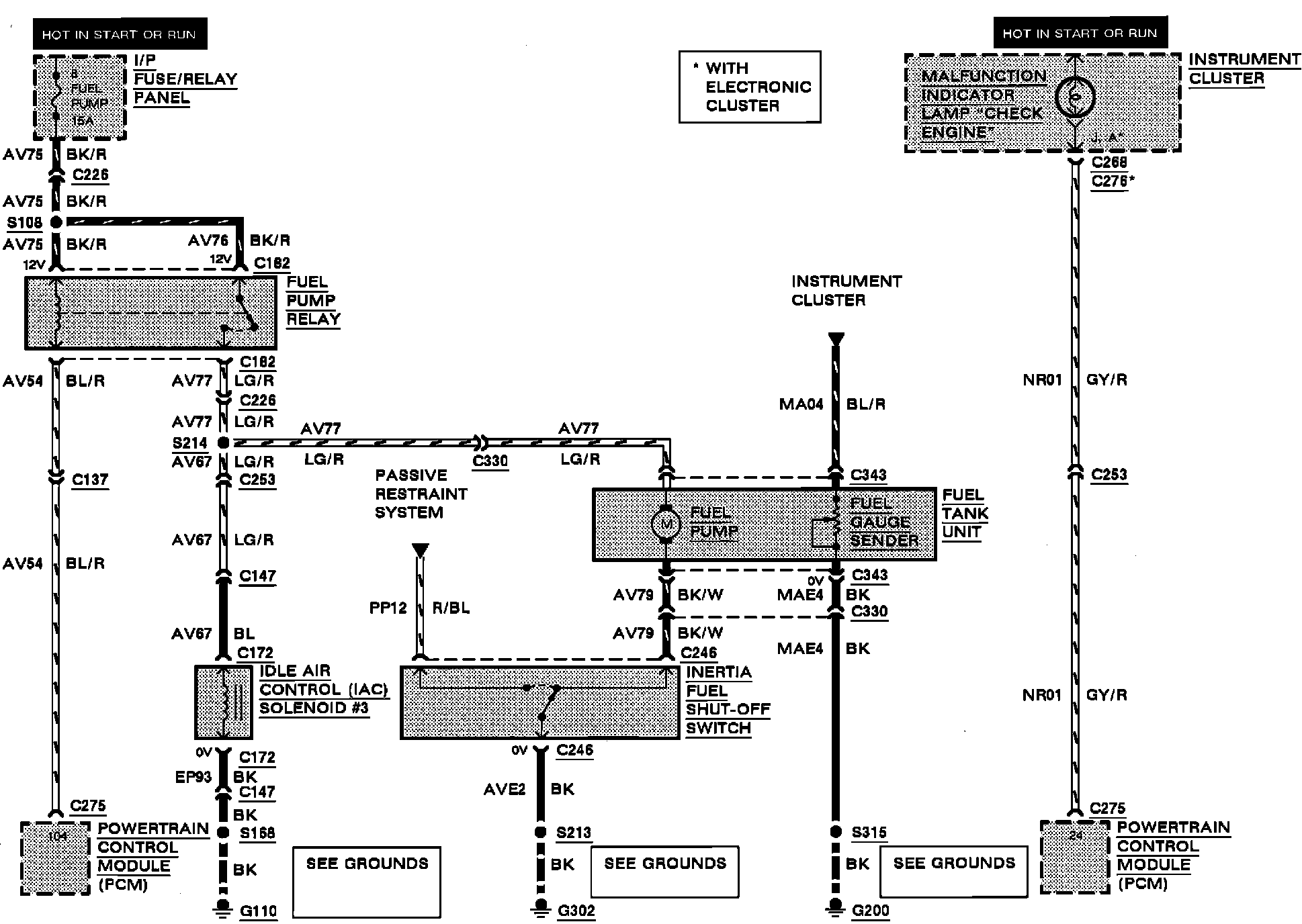

Electronic Engine Control:

FUEL PUMP RELAY
FUEL PUMP RELAY
FUEL TANK UNIT
IDLE AIR CONTROL SOLENOID #3 (IAC)
INERTIA SHUT-OFF SWITCH
MALFUNCTION INDICATOR LAMP

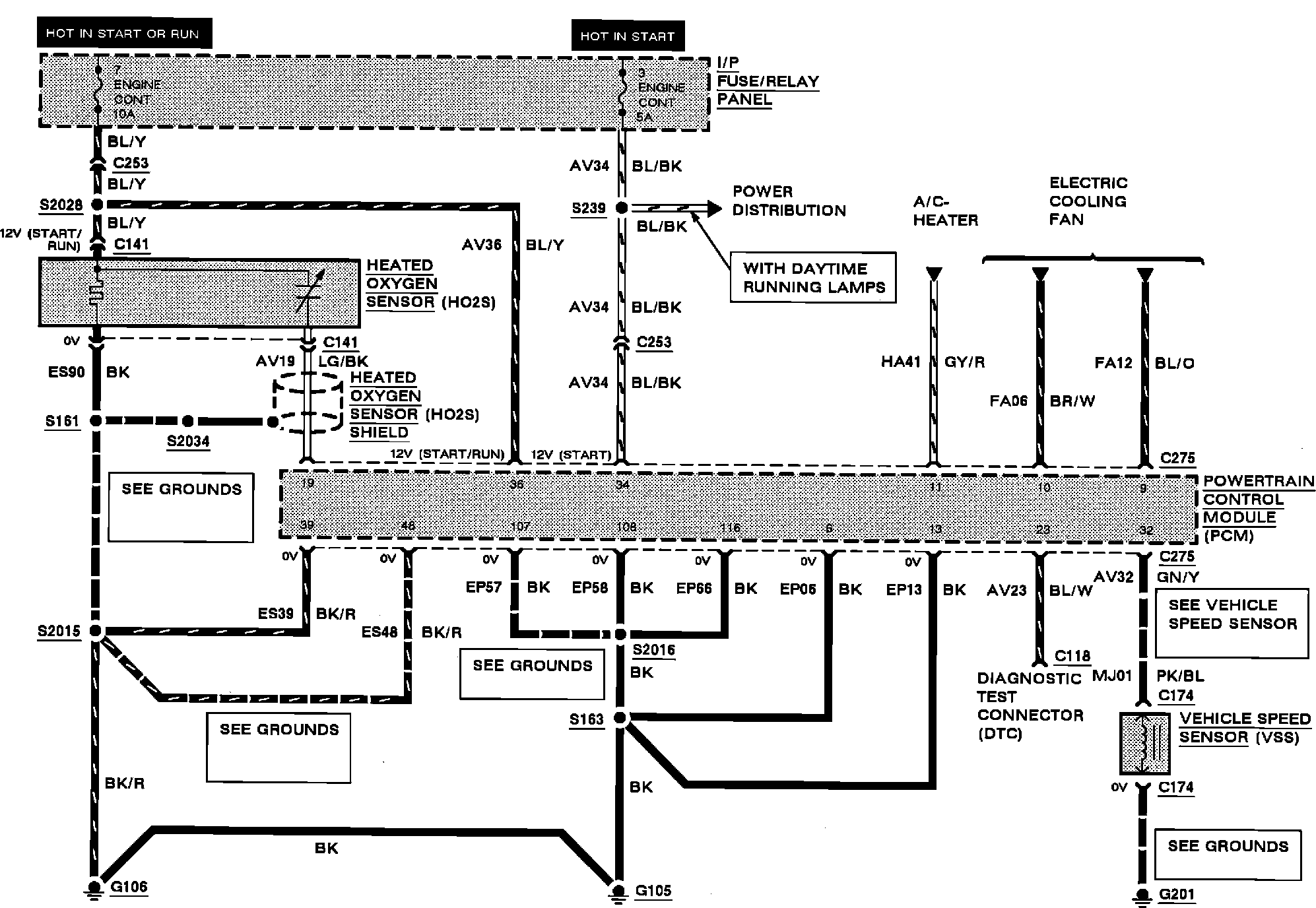

Electronic Engine Control:

HEATED OXYGEN SENSOR (HO2S)
INSTRUMENT PANEL FUSE/RELAY PANEL
POWERTRAIN CONTROL MODULE (PCM)
VEHICLE SPEED SENSOR (VSS)

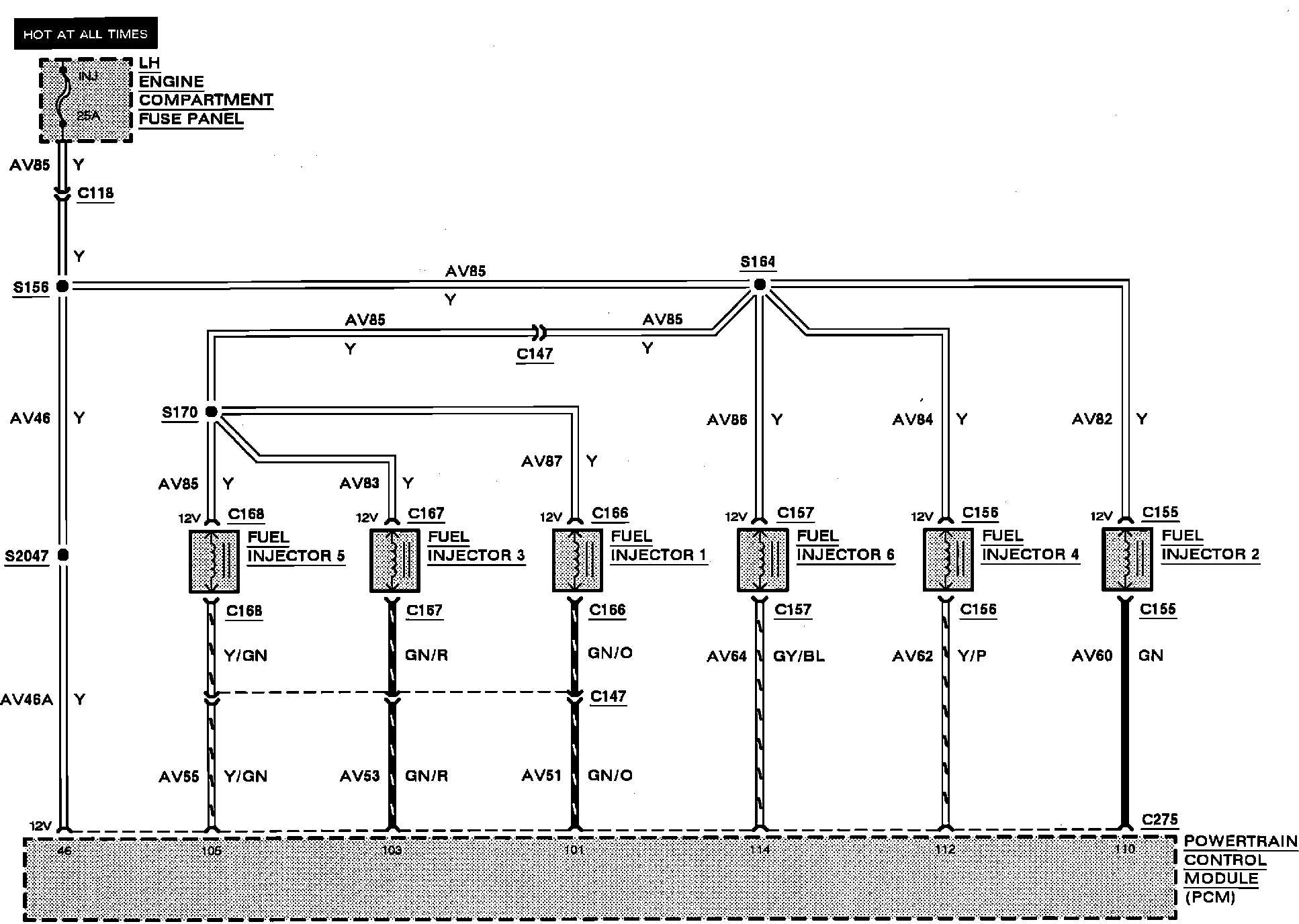

Electronic Engine Control:

FUEL INJECTORS
LH ENGINE COMPARTMENT FUSE PANEL
POWERTRAIN CONTROL MODULE (PCM)

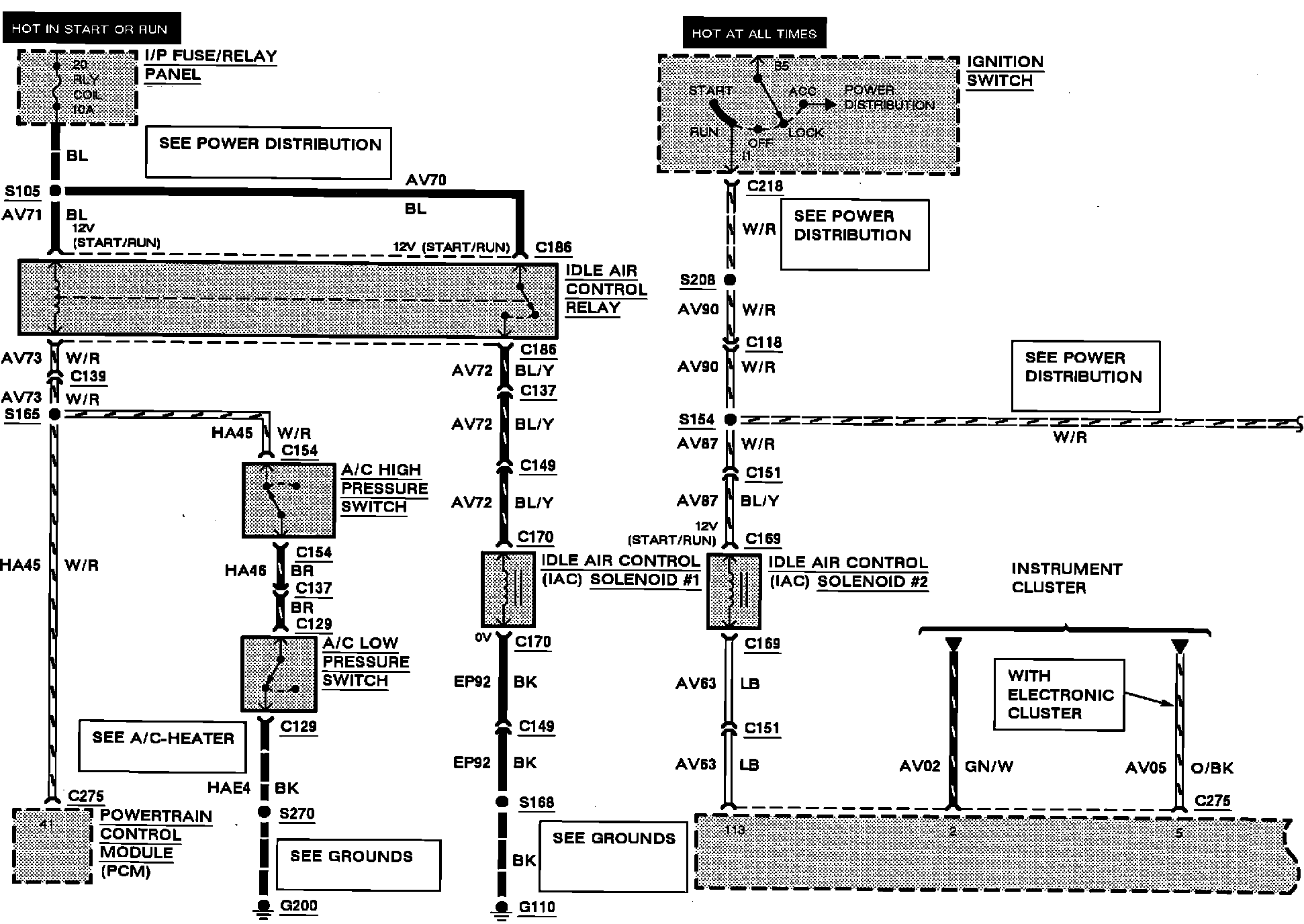

Electronic Engine Control:

IGNITION SWITCH
IDLE AIR CONTROL RELAY
A/C HIGH PRESSURE SWITCH
A/C LOW PRESSURE SWITCH
IDLE AIR CONTROL SOLENOID #2 (IAC)
IDLE AIR CONTROL SOLENOID #3 (IAC)

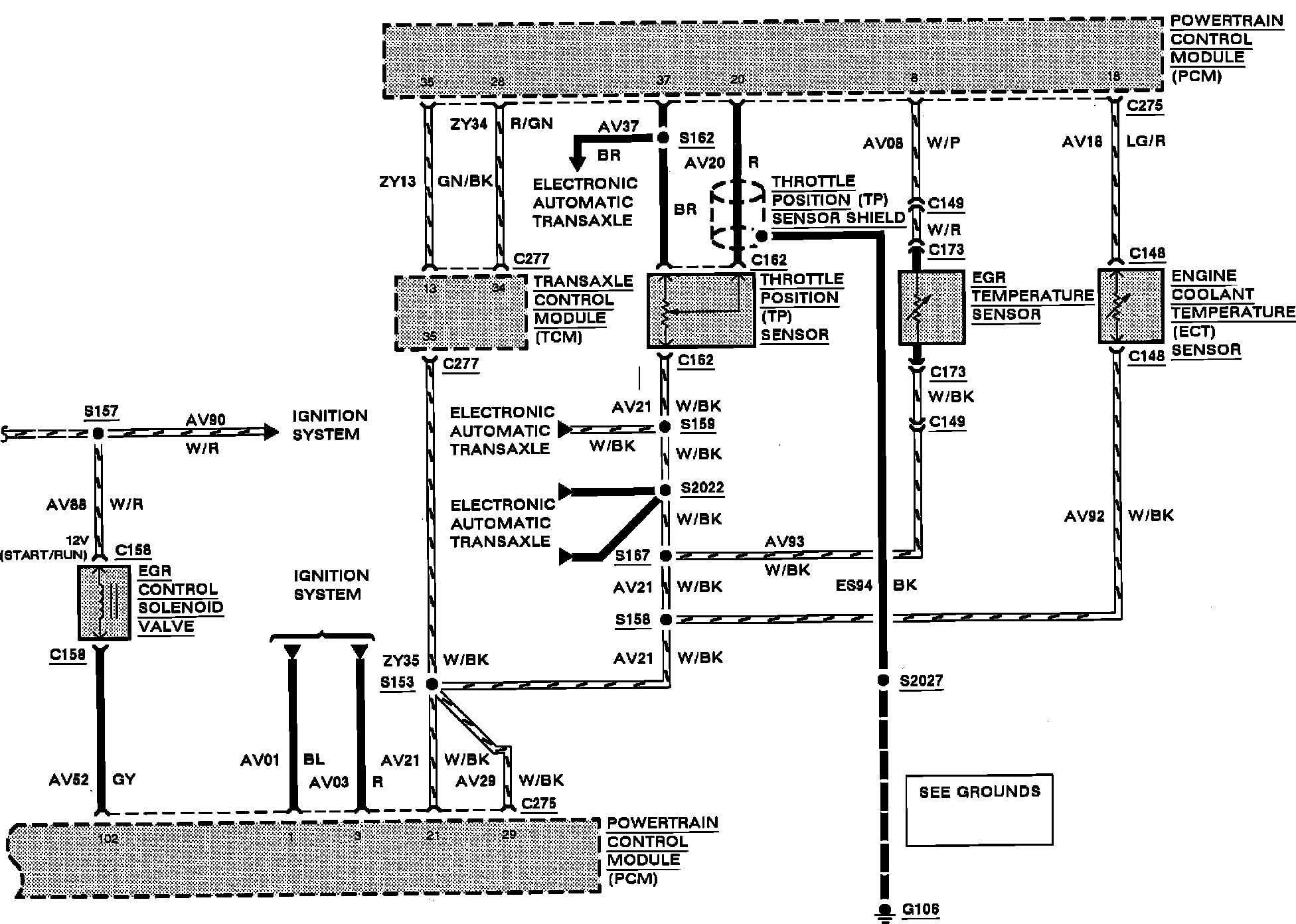

Electronic Engine Control:

POWERTRAIN CONTROL MODULE (PCM)
TRANSAXLE CONTROL MODULE (TCM)
THROTTLE POSITION SENSOR (TP)
EGR TEMPERATURE SENSOR
ENGINE COOLANT TEMPERATURE SENSOR (ECT)
EGR CONTROL SOLENOID VALVE

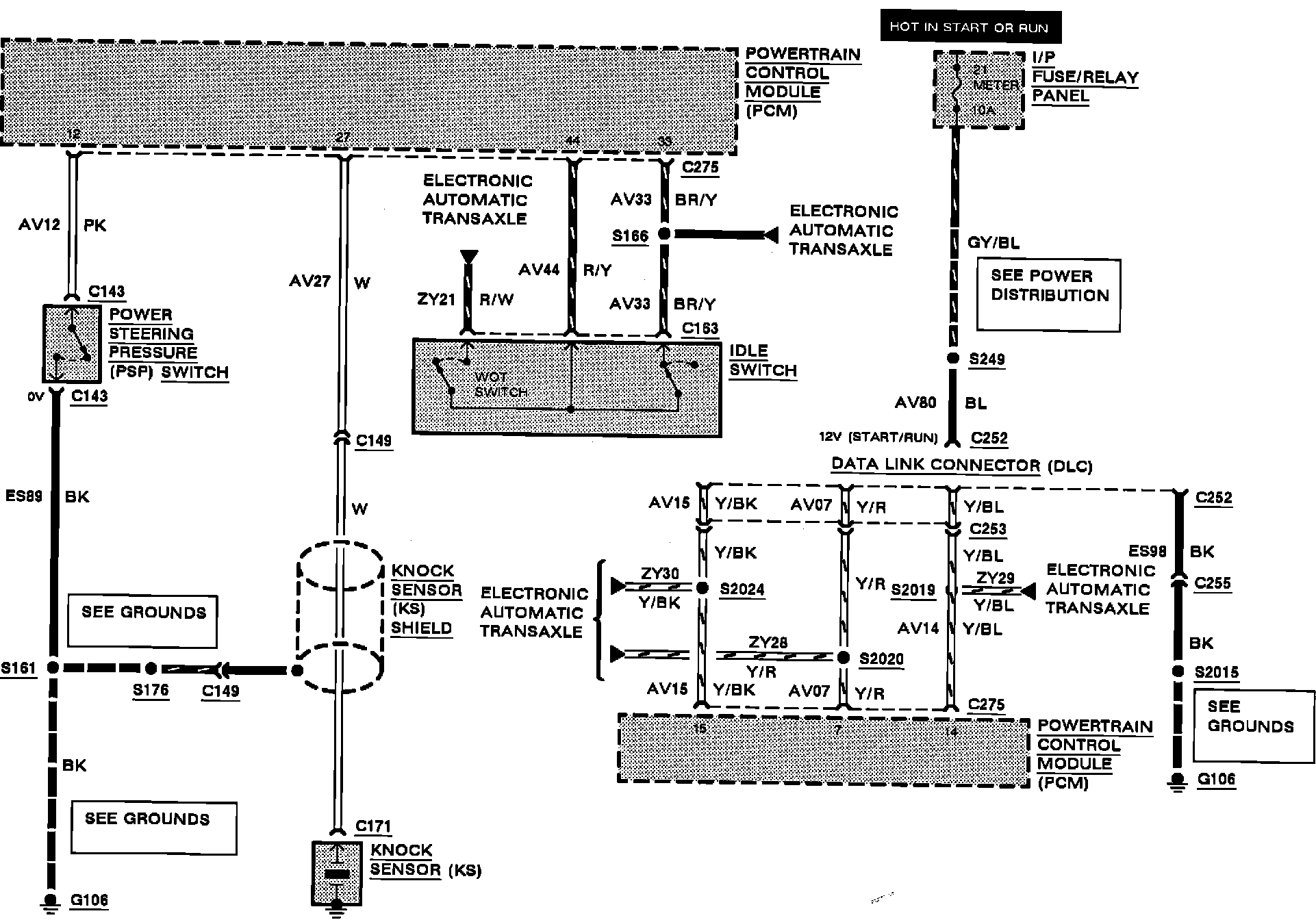

Electronic Engine Control:

POWERTRAIN CONTROL MODULE (PCM)
IDLE SWITCH
POWER STEERING PRESSURE SWITCH
ELECTRONIC AUTOMATIC TRANSAXLE
