BARO Test Notes

NOTE: You should enter this Pinpoint Test only when diagnostic trouble code 14 is received in Erase and Retest or Key On Engine Running (KOER) test, or when Component Verification Test directs you here.

REMEMBER: This Pinpoint Test is intended to diagnose only the following:

- Circuit: BARO

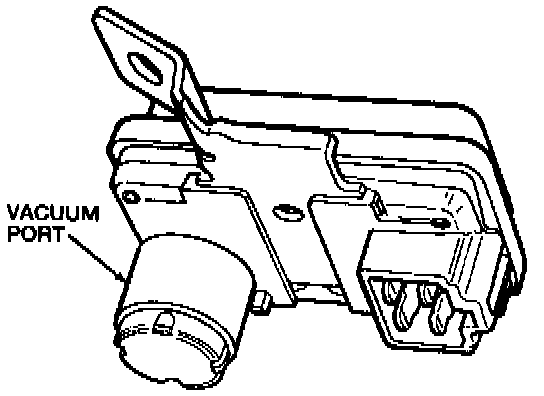

Barometric Pressure (BARO) Sensor:
