Fuse Meter

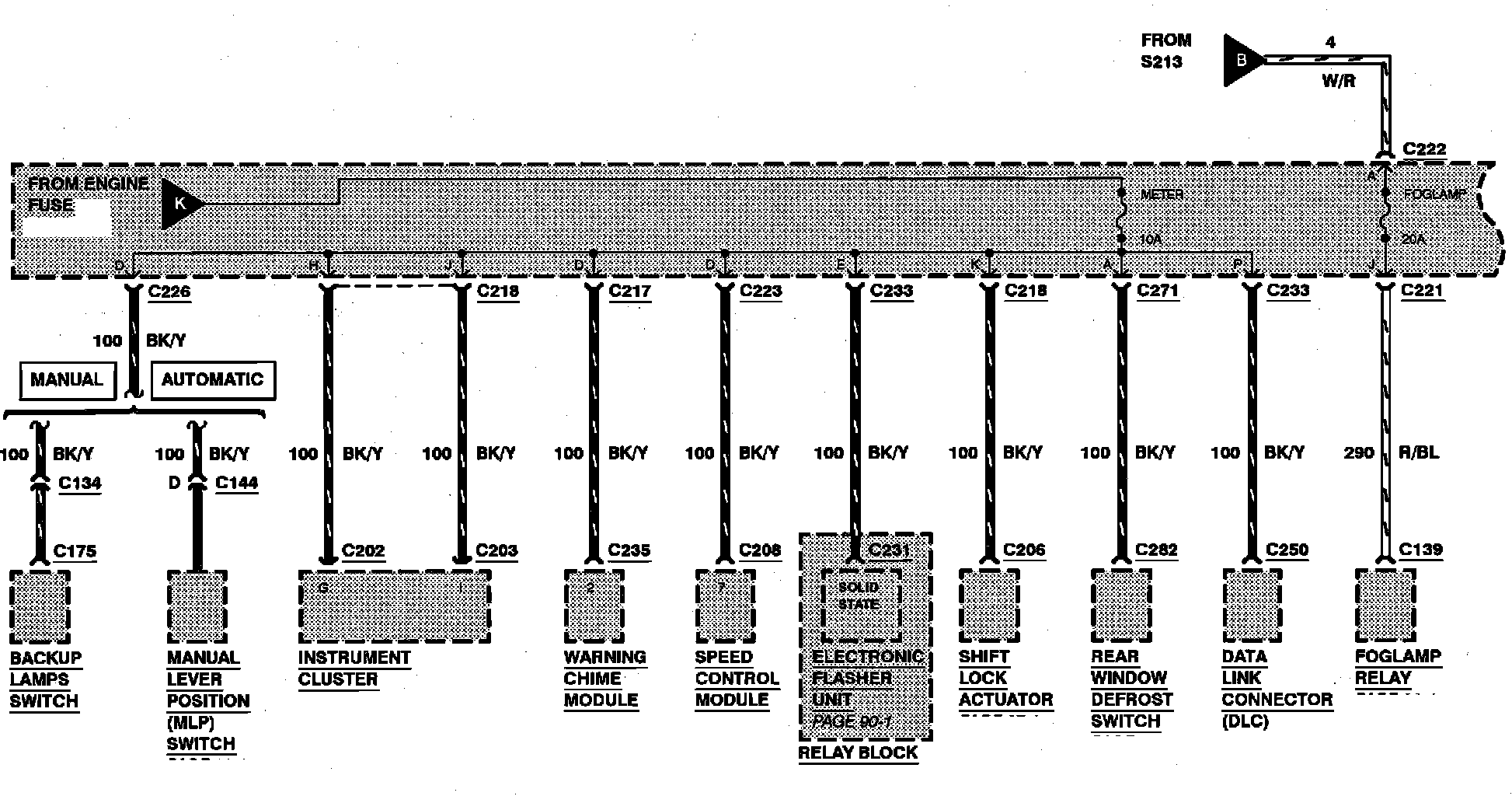

Fuse Meter - protects the following circuits:
- Transmission Control
- Speed Control
- Instrument Cluster
- Rear Window Defroster
- Warning Chime
- Turn/Hazard
- Backup Lamps

Power Distribution:
