Diagnostic Reference Values

NOTE: For tests involving switches, the values will be: switch OFF (released) / switch ON (depressed).

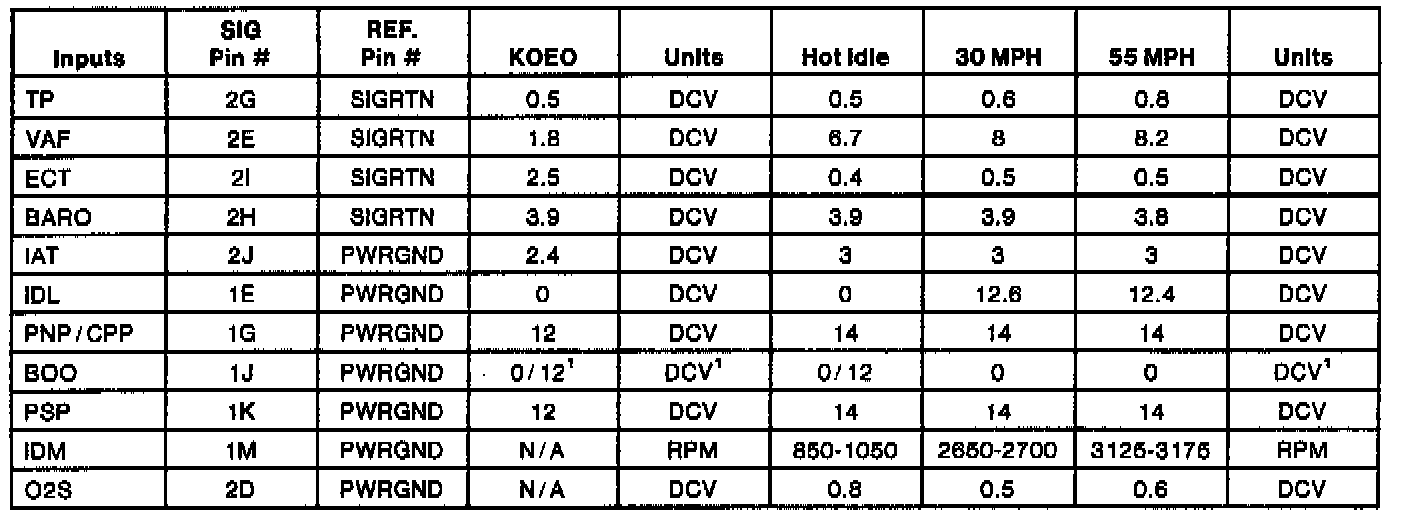

Inputs

Diagnostic Reference Values:

1 12 volts with brake pedal depressed, 0 volts with brake pedal released.

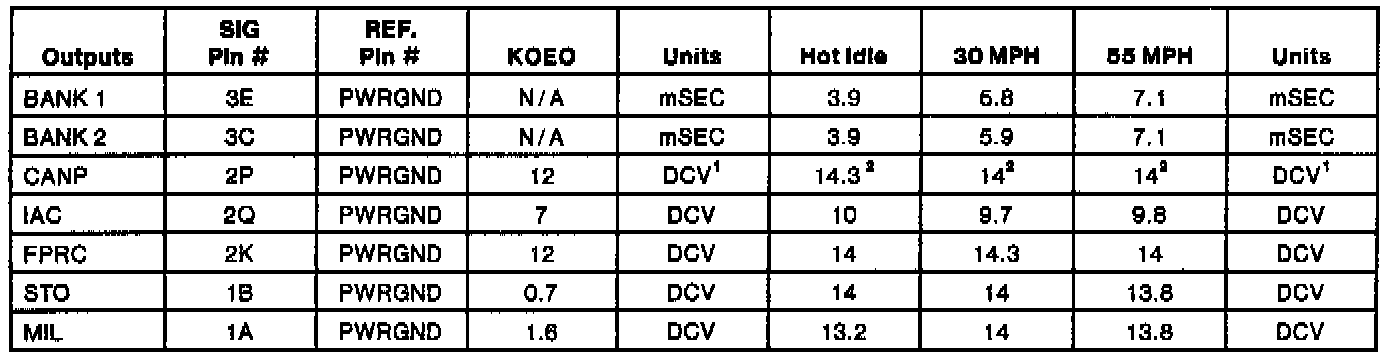

Outputs

Diagnostic Reference Values:

1 Test in manual DCV.

2 Voltage may be lower while purging occurs.

NOTE: Reference values shown may vary approximately +/-20 percent depending on operating conditions and other factors.
