Engine Controls

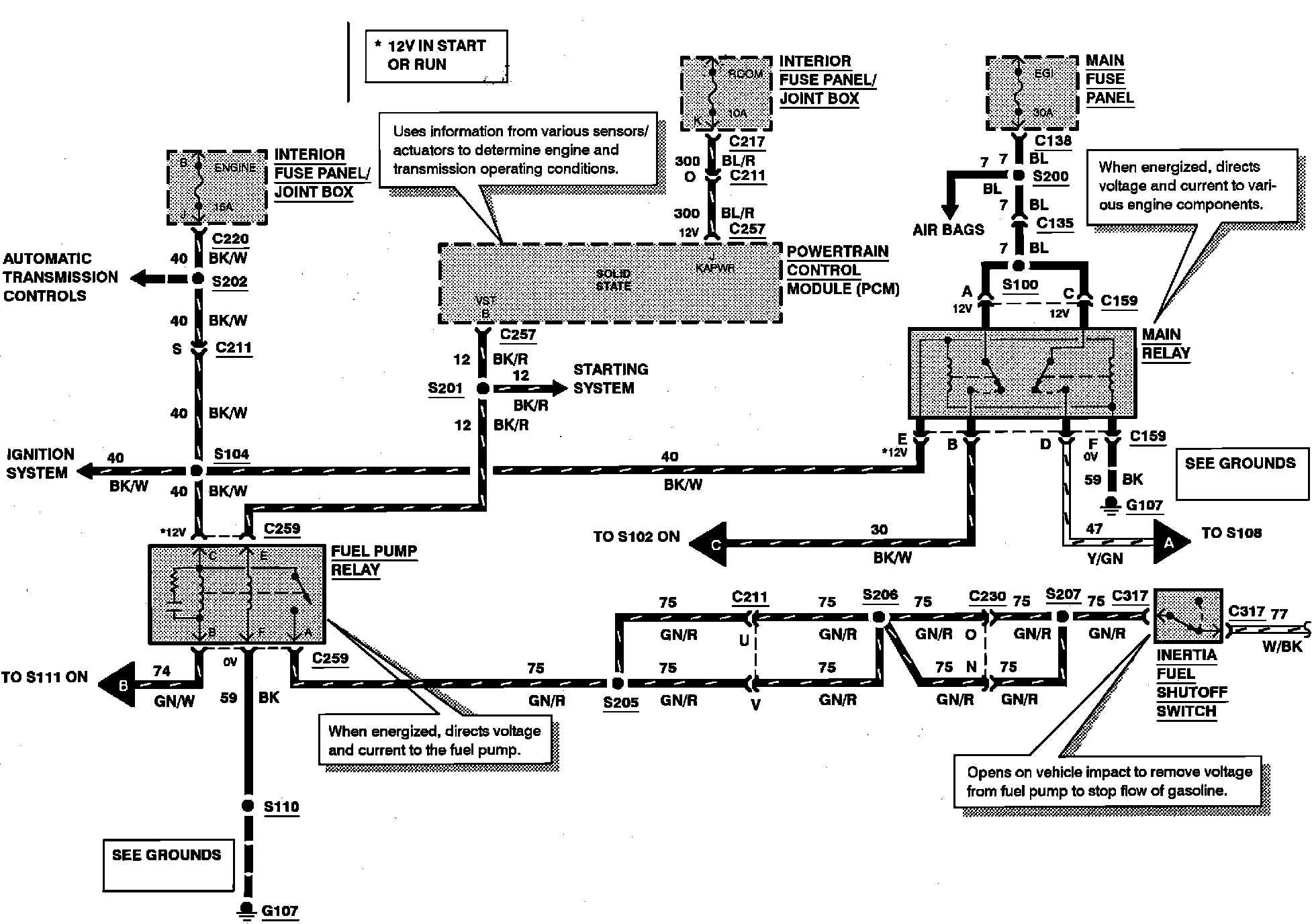

Electronic Engine Controls:





FUEL PUMP RELAY
INERTIA FUEL SHUTOFF SWITCH
INTERIOR FUSE PANEL/JOINT BOX
MAIN FUSE PANEL
MAIN RELAY

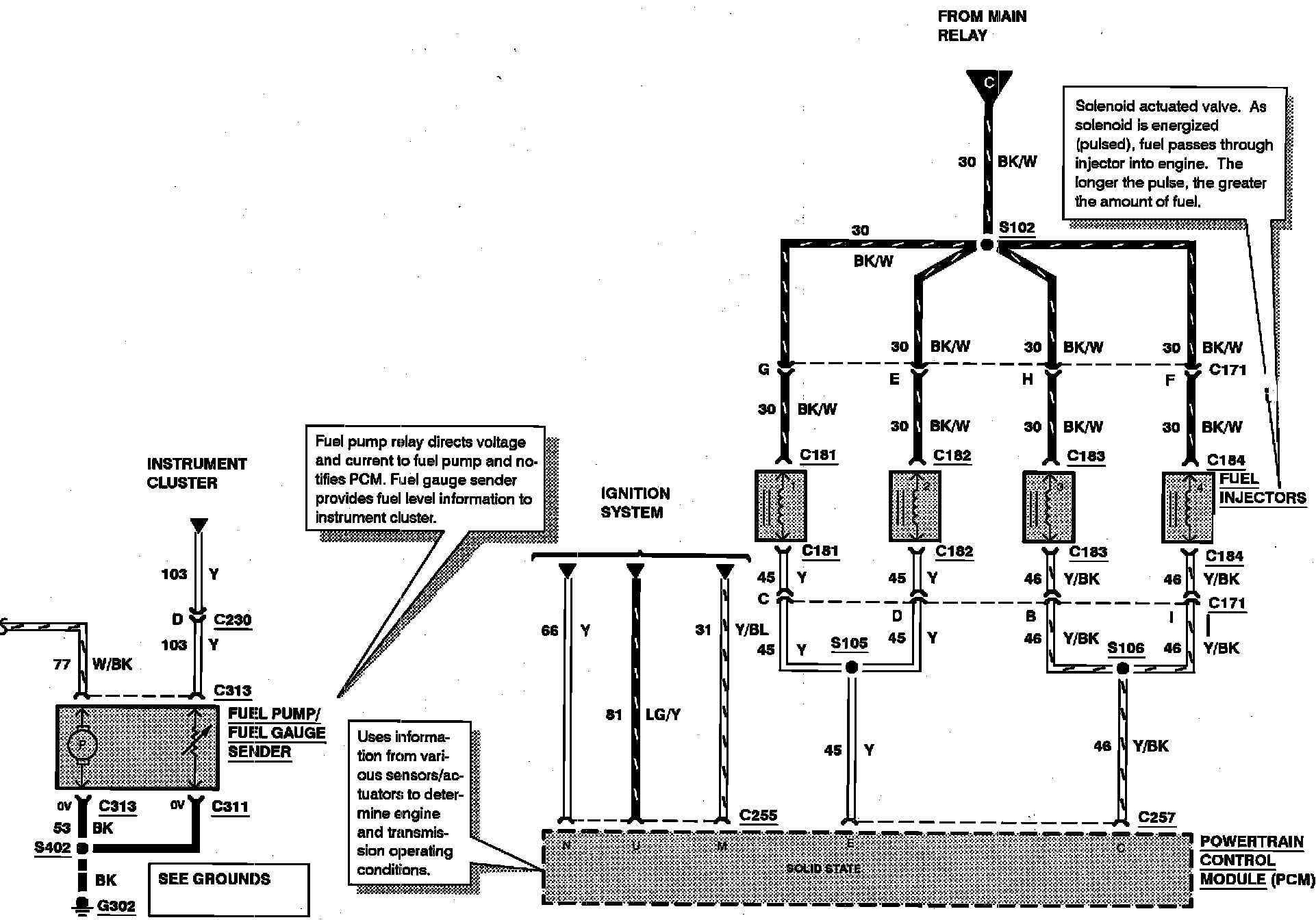

Electronic Engine Controls:





FUEL INJECTORS
FUEL PUMP/FUEL GAUGE SENDER

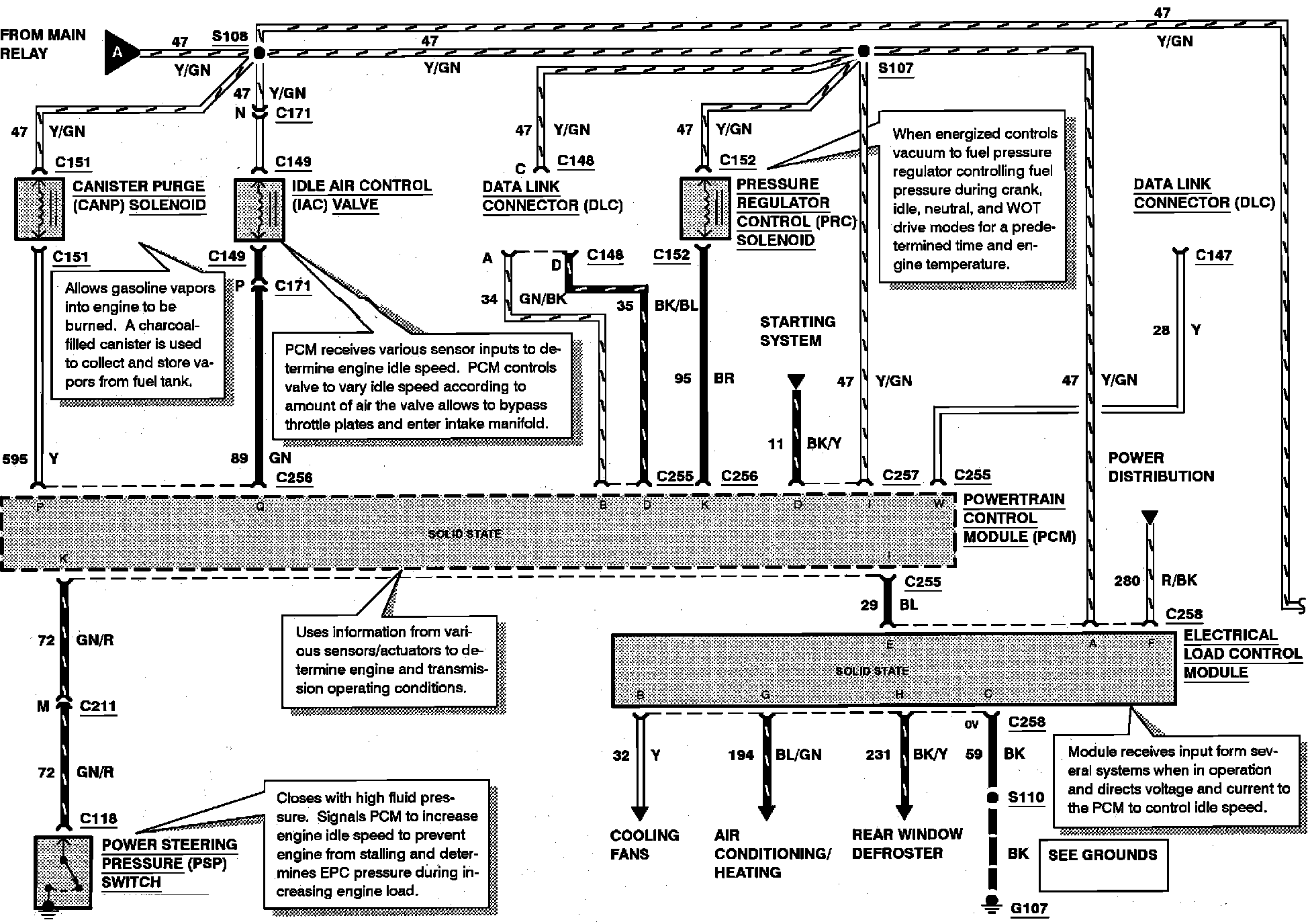

Electronic Engine Controls:





CANISTER PURGE (CANP) SOLENOID
ELECTRICAL LOAD CONTROL MODULE
IDLE AIR CONTROL (IAC) VALVE
POWER STEERING PRESSURE (PSP) SWITCH
PRESSURE REGULATOR CONTROL (PRC) SOLENOID

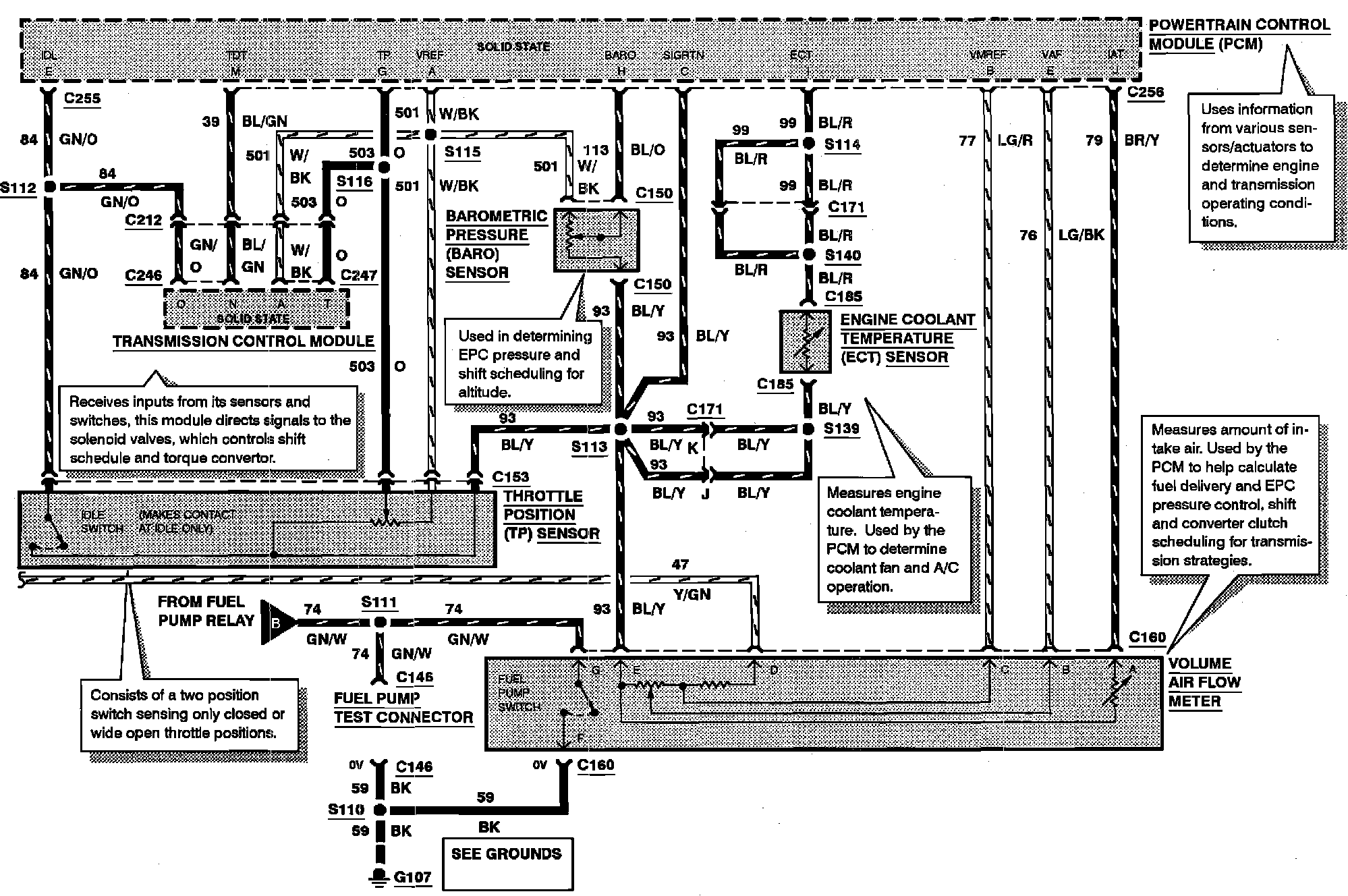

Electronic Engine Controls:





BAROMETRIC PRESSURE (BARO) SENSOR
ENGINE COOLANT TEMPERATURE (ECT) SENSOR
THROTTLE POSITION (TP) SENSOR
VOLUME AIR FLOW METER

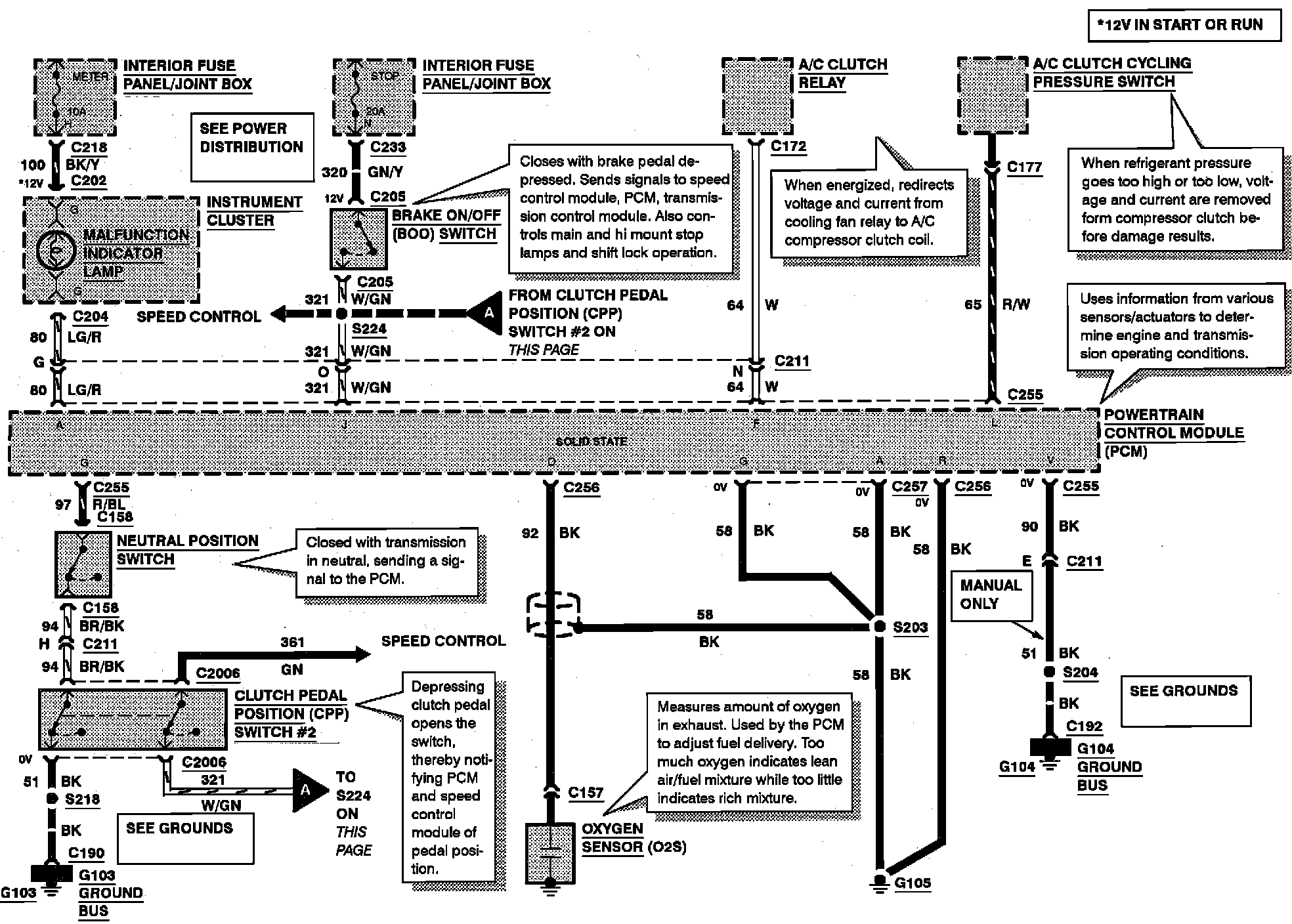

Electronic Engine Controls:





A/C CLUTCH CYCLING PRESSURE SWITCH
A/C CLUTCH RELAY
BRAKE ON/OFF (BOO) SWITCH
CLUTCH PEDAL POSITION (CPP) SWITCH #2
MALFUNCTION INDICATOR LAMP
NEUTRAL POSITION SWITCH
INTERIOR FUSE PANEL/JOINT BOX
OXYGEN SENSOR (O2S)
