4F50N

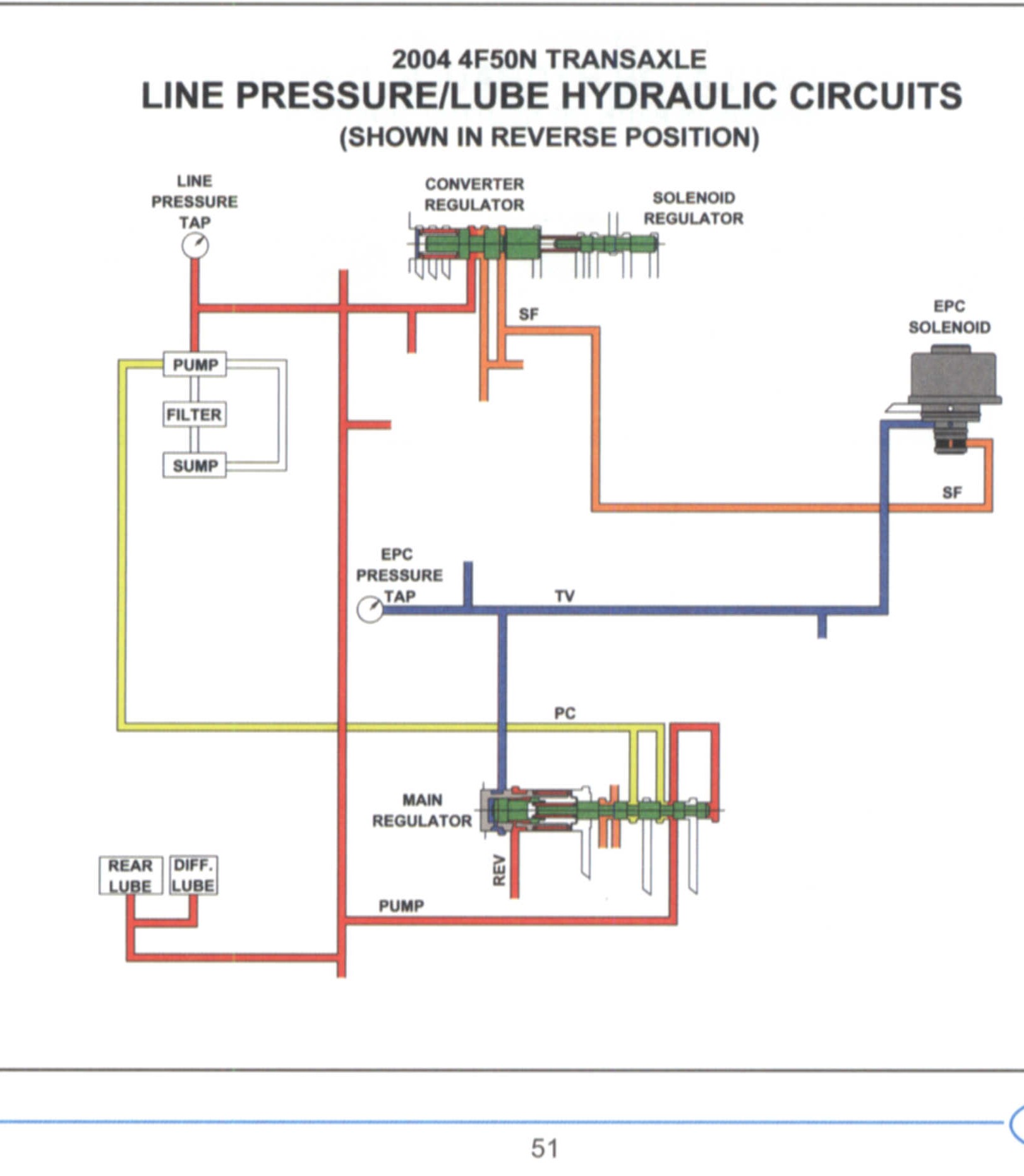

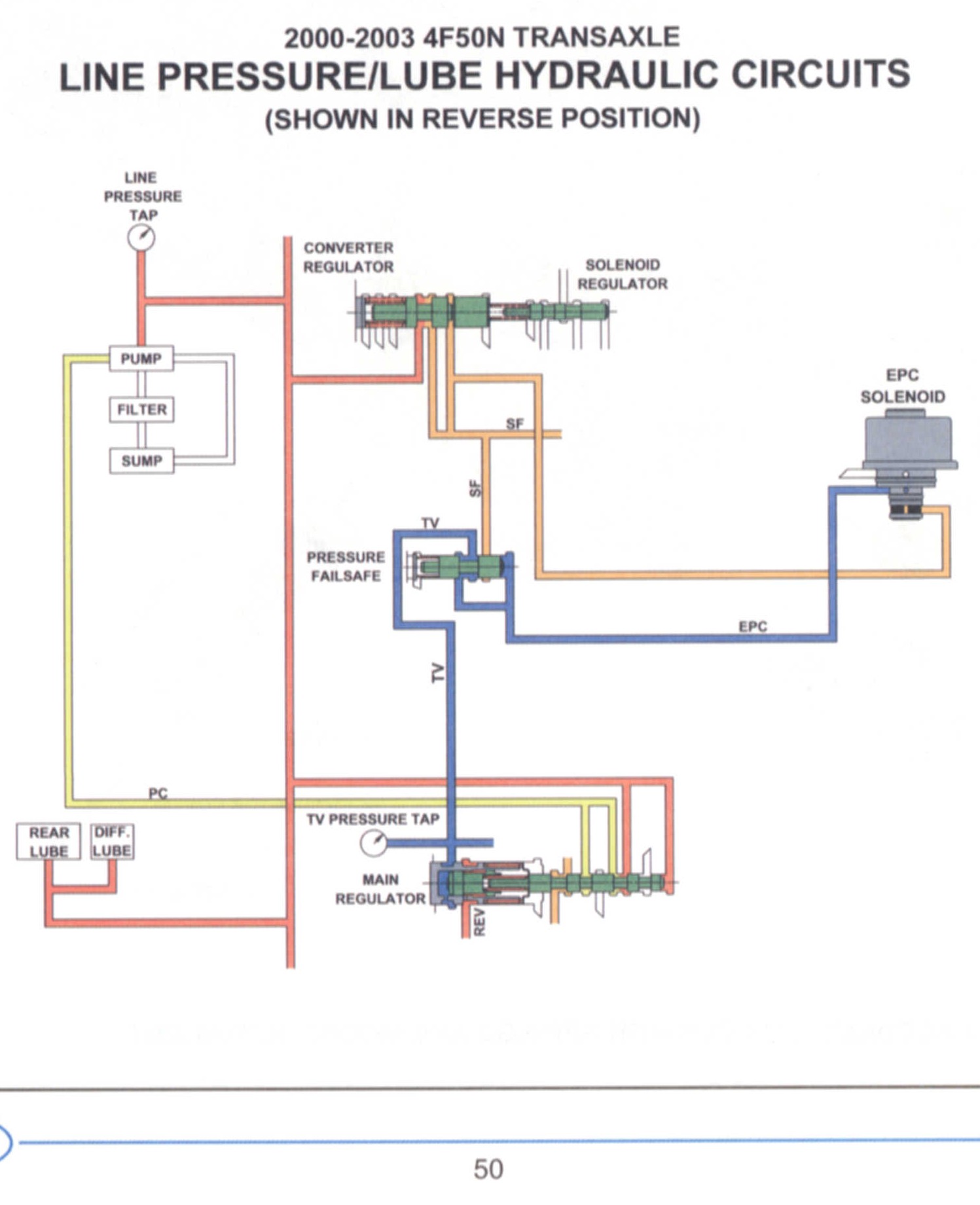

Line Pressure In Reverse

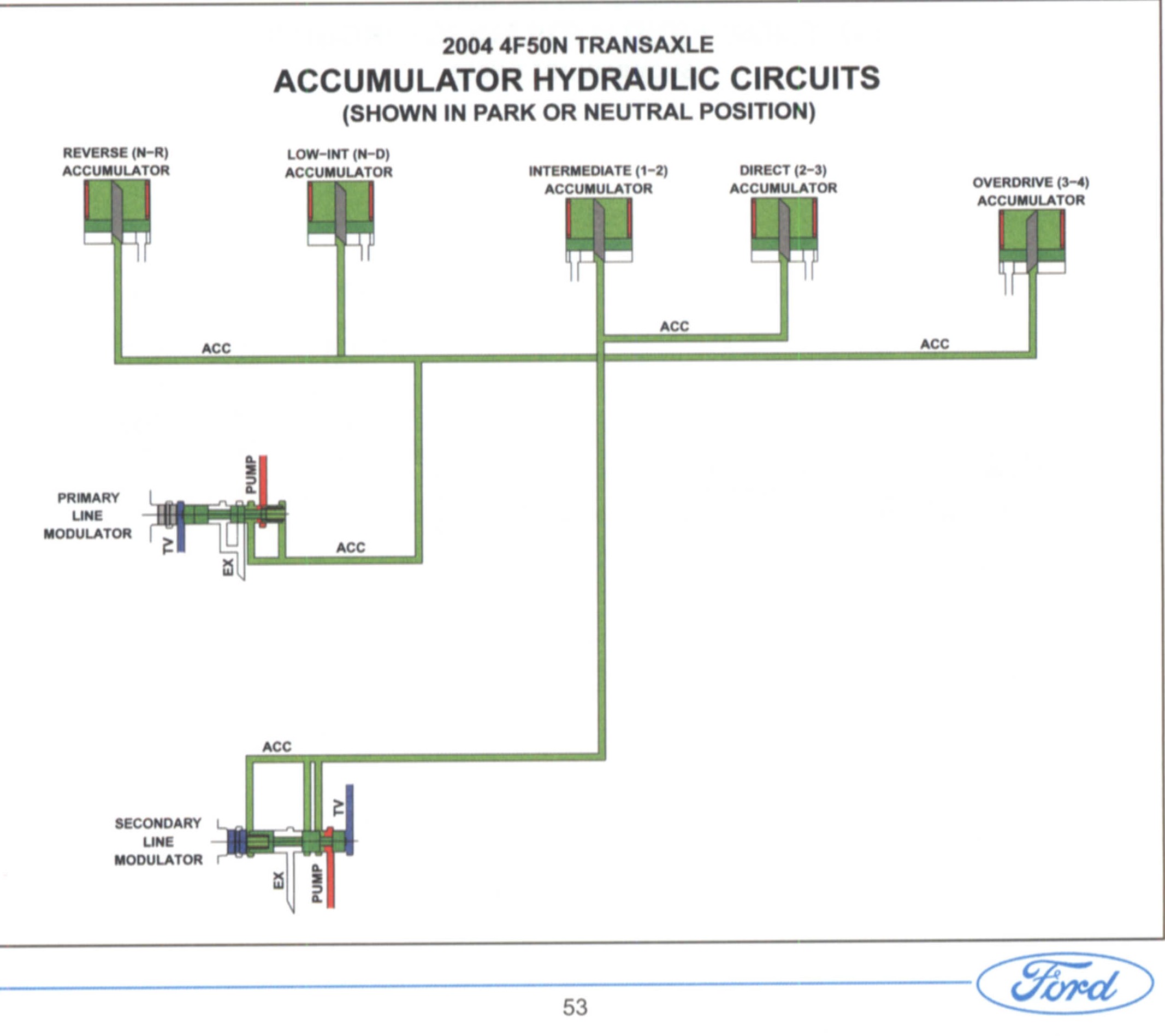

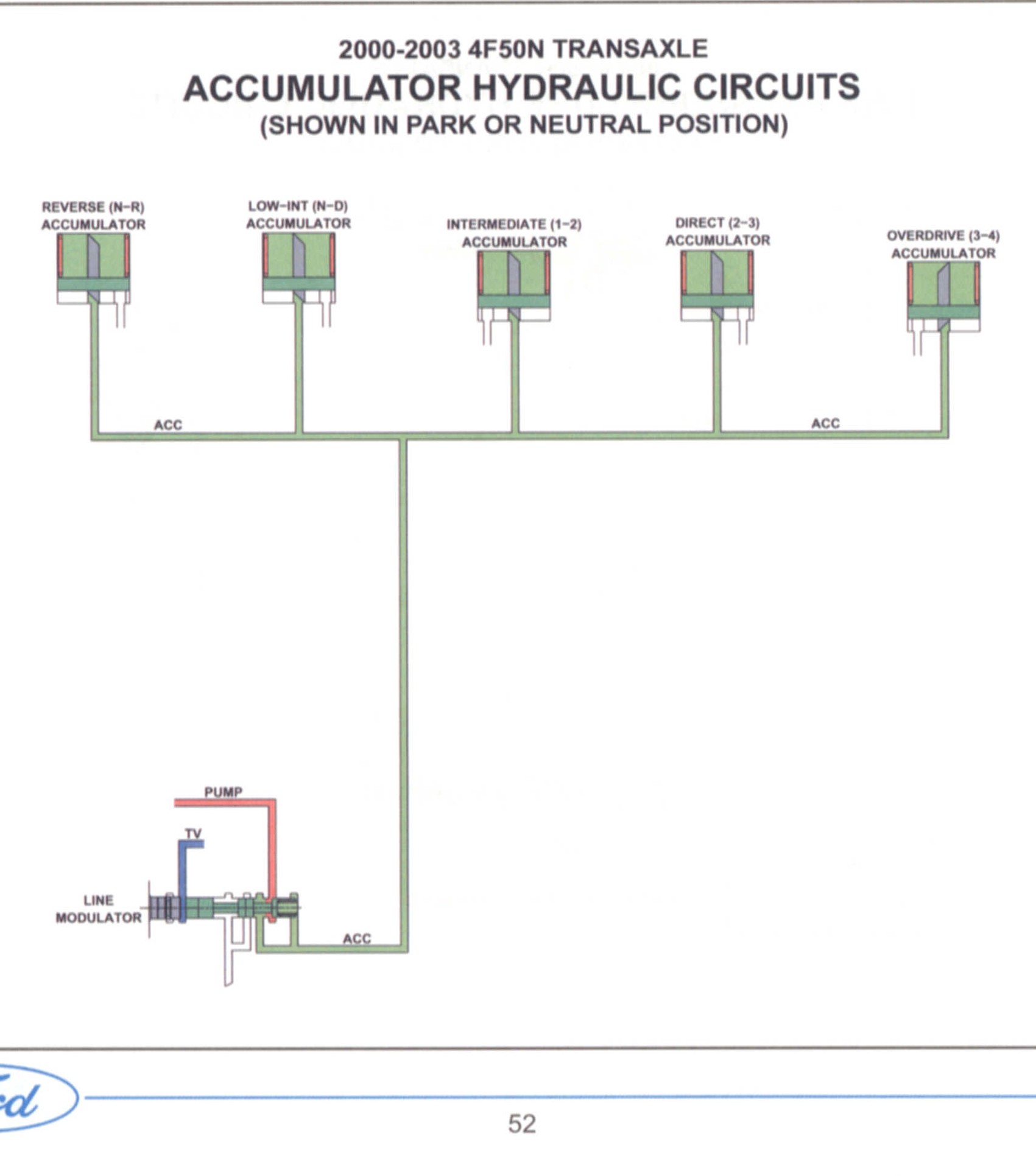

Accumulator Circuit In Park Or Neutral

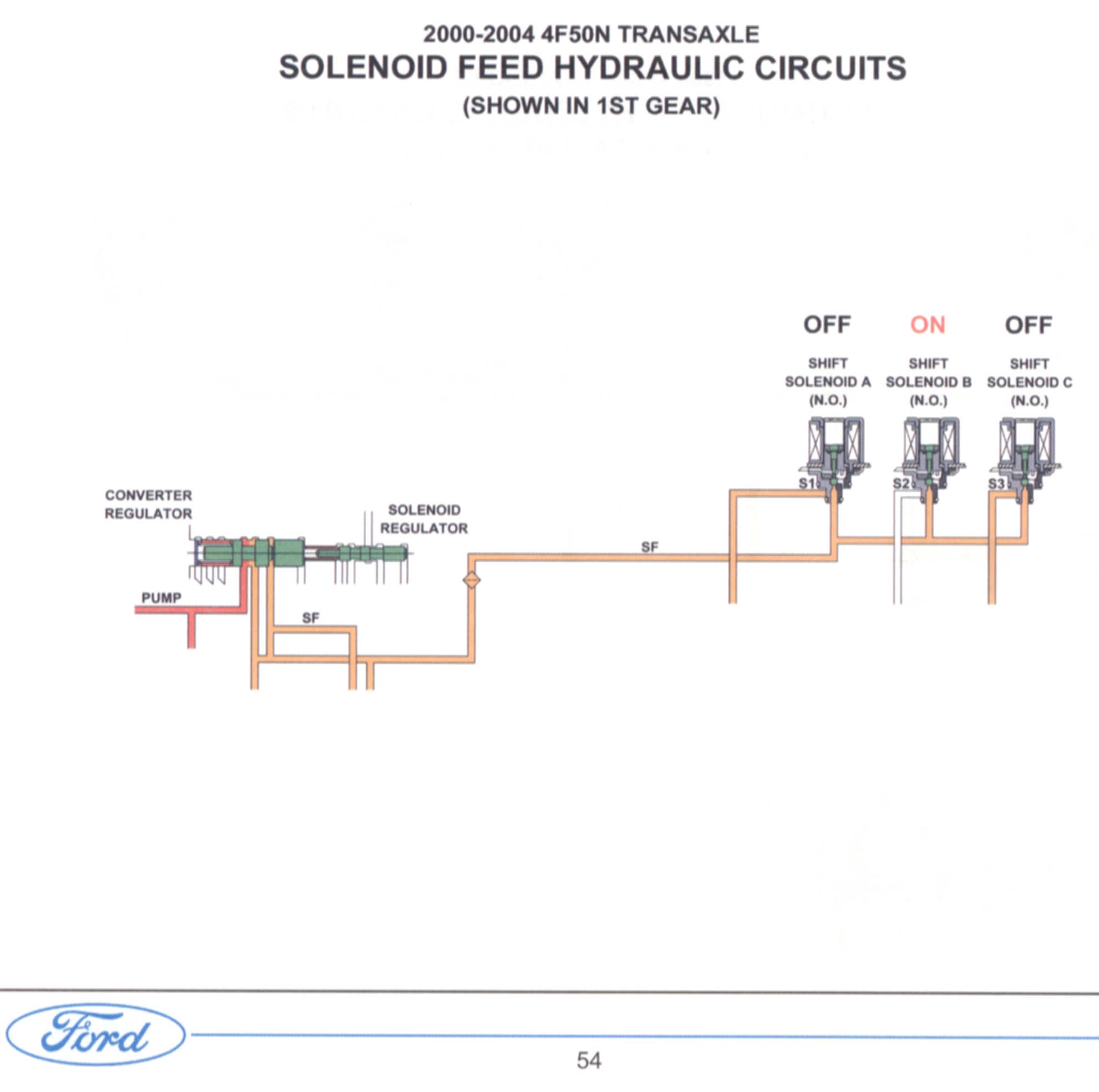

Solenoid Feed Circuit In 1st Gear

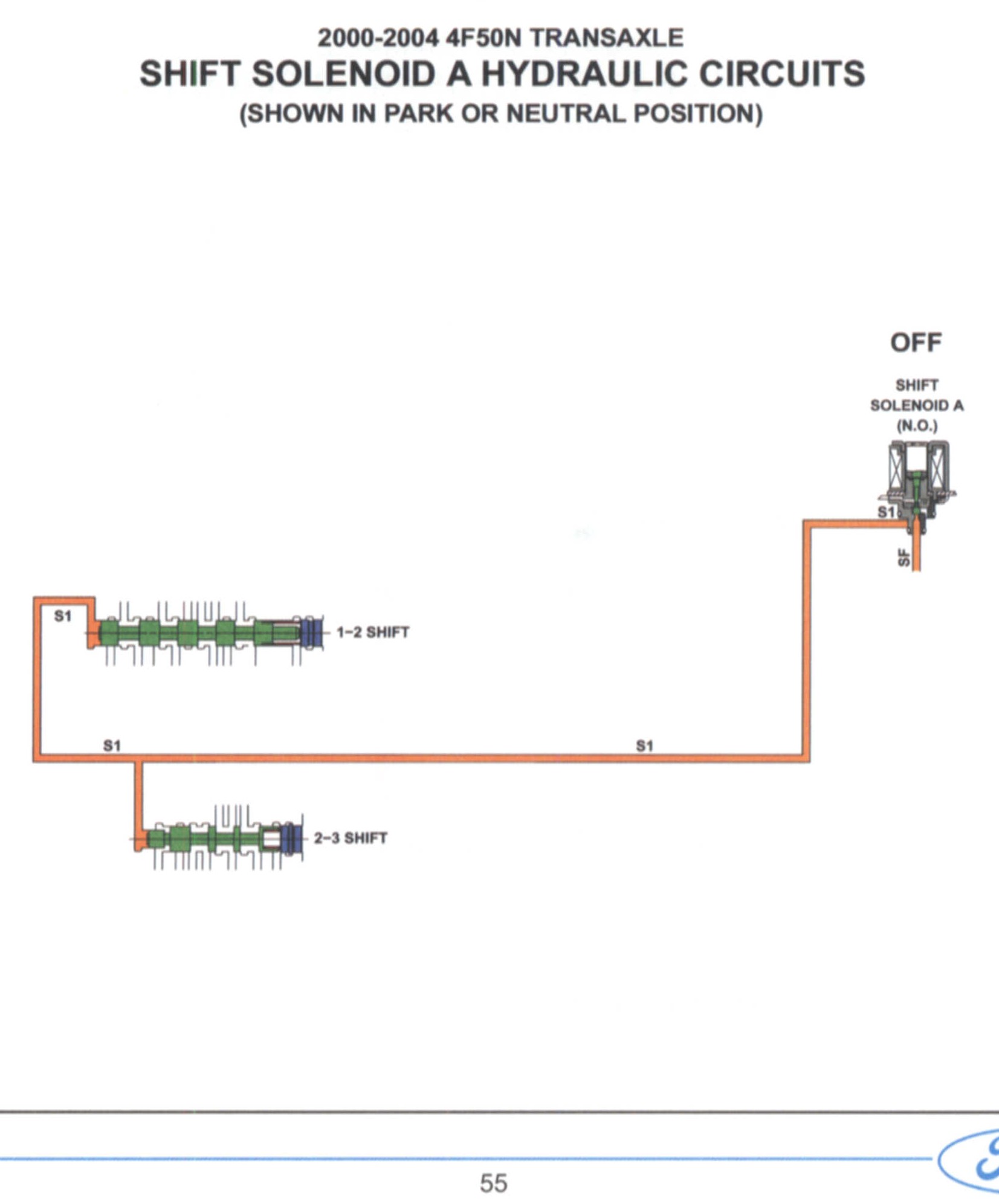

Shift Solenoid Circuit In Park Or Neutral

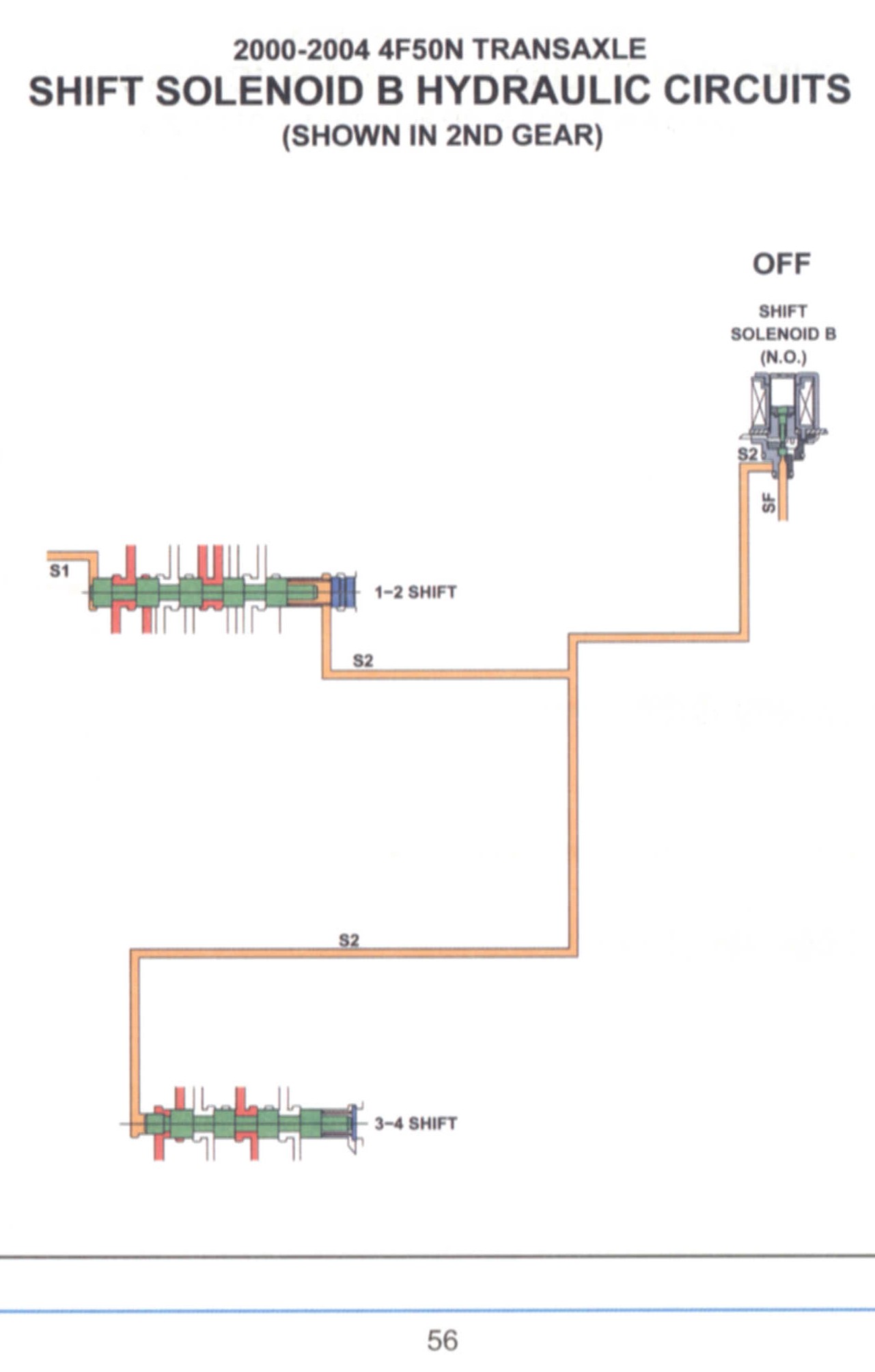

Shift Solenoid Circuit B In 2nd Gear

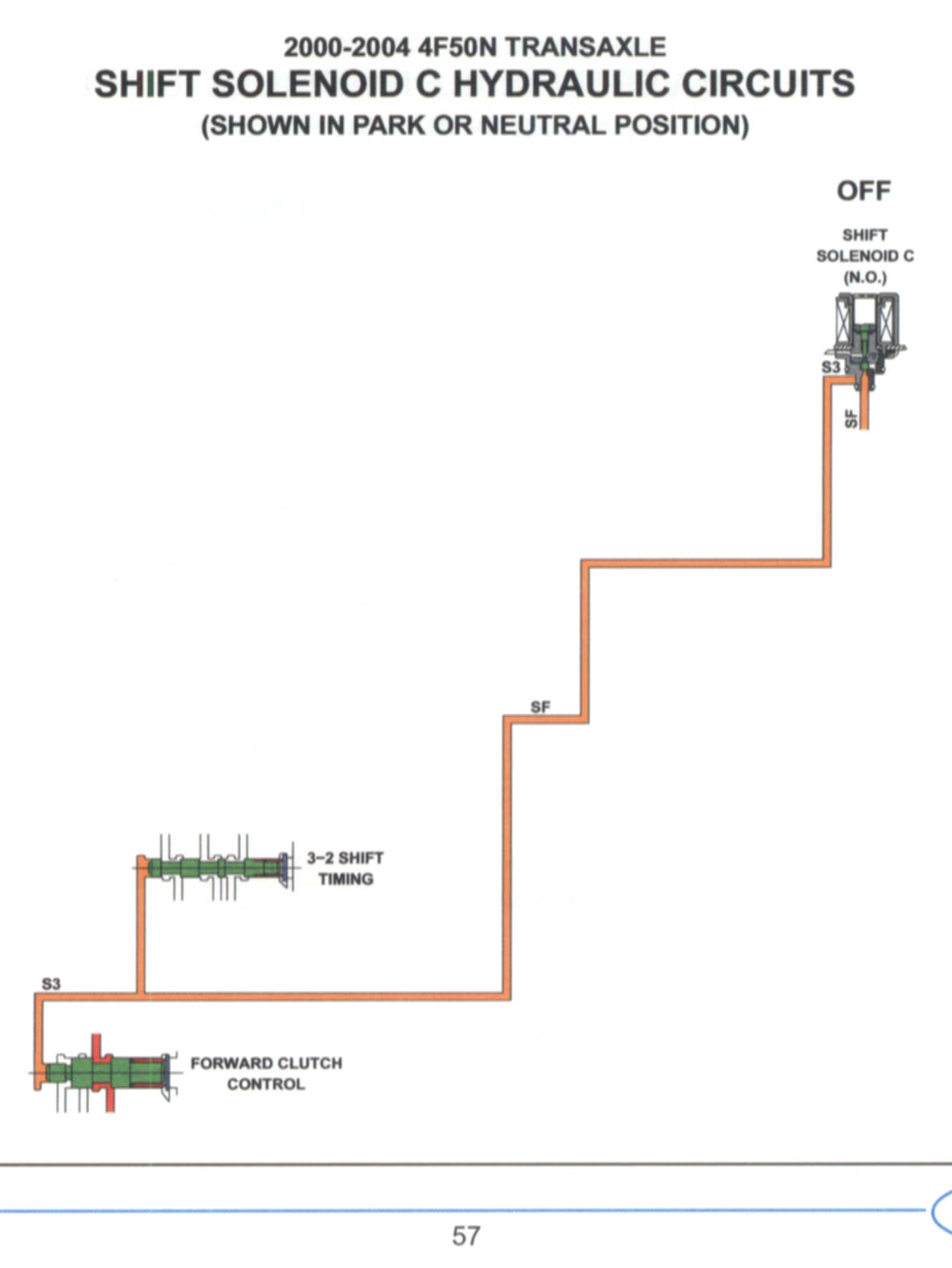

Shift Solenoid C Circuit Park Or Neutral

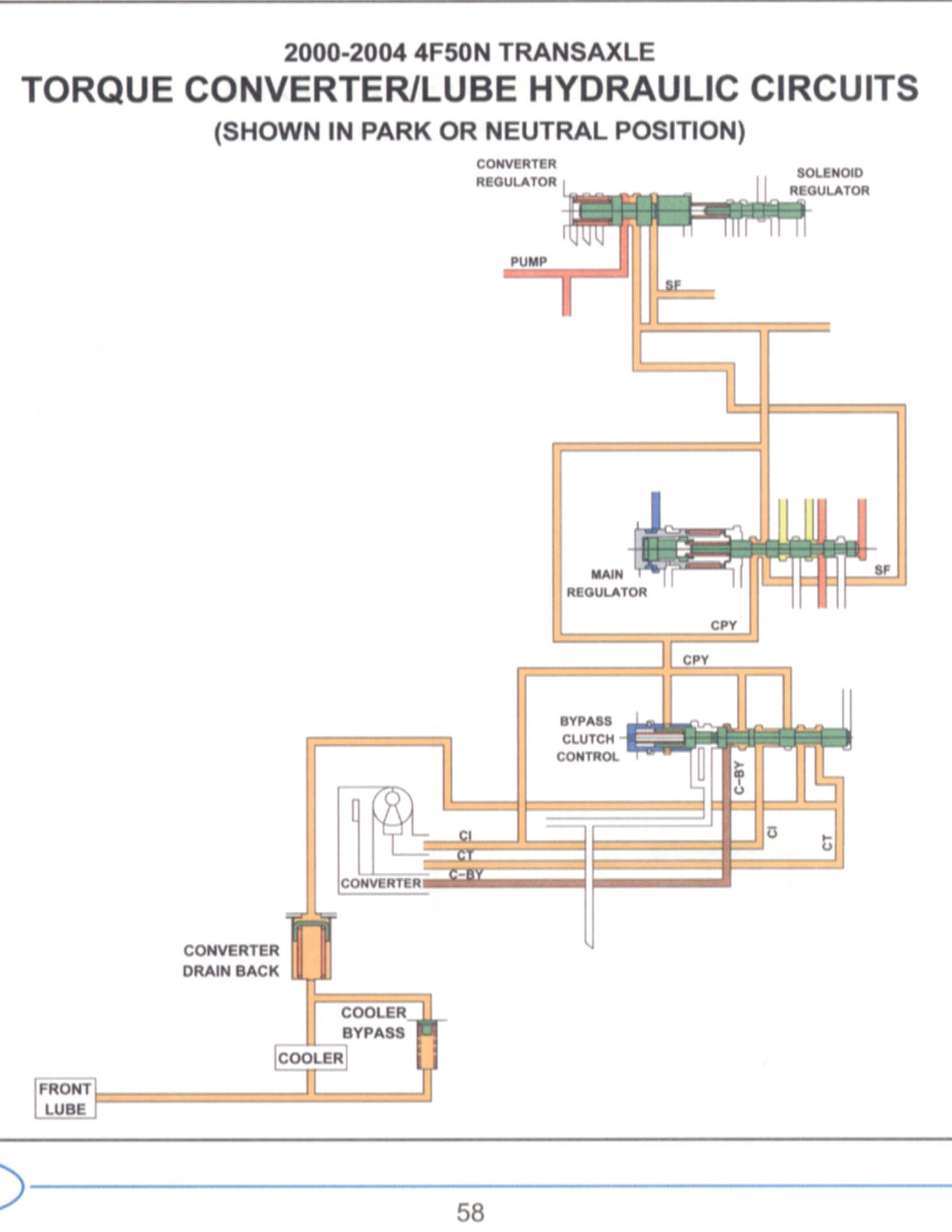

Torque Converter Circuit In Park Or Neutral

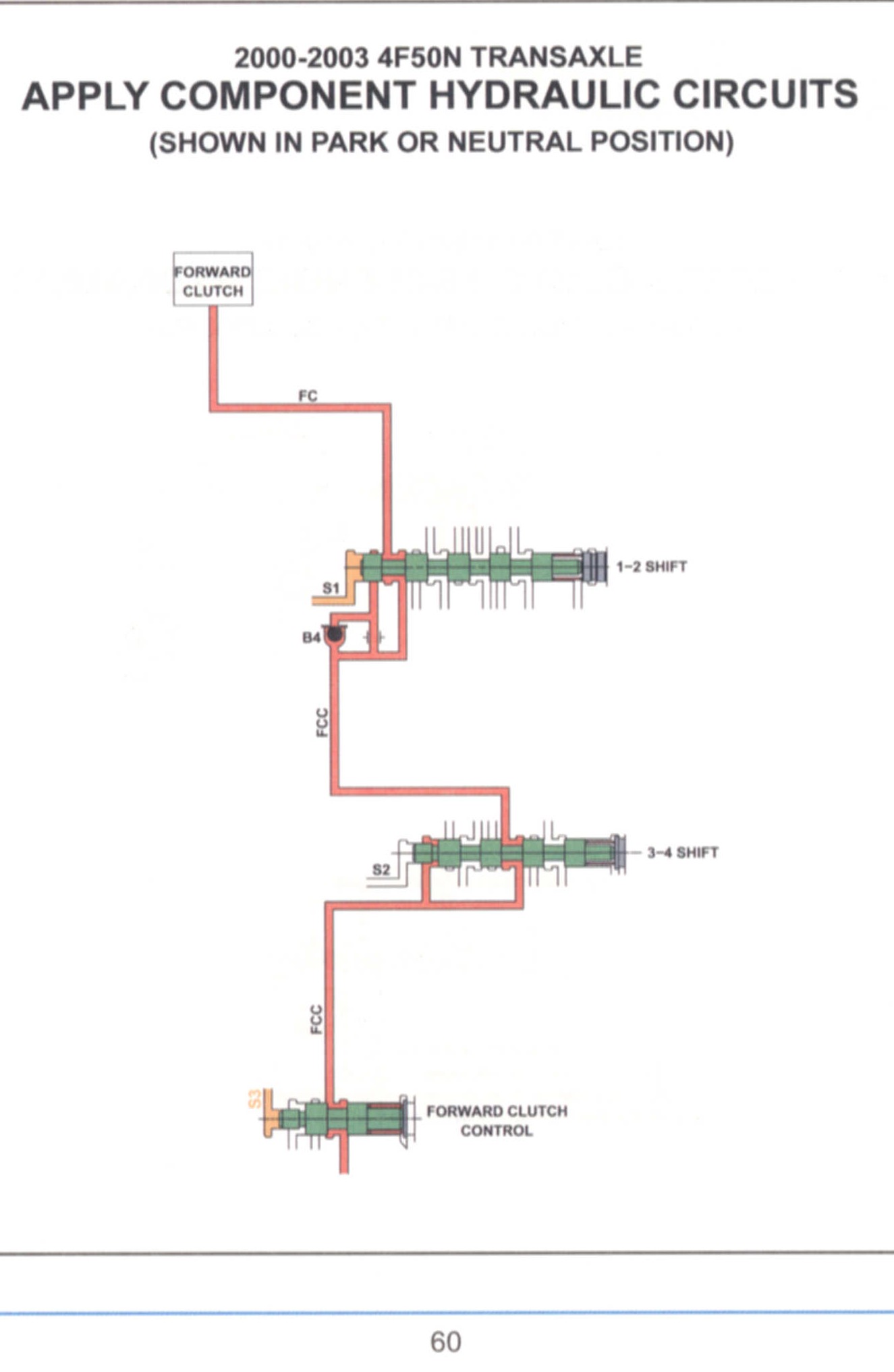

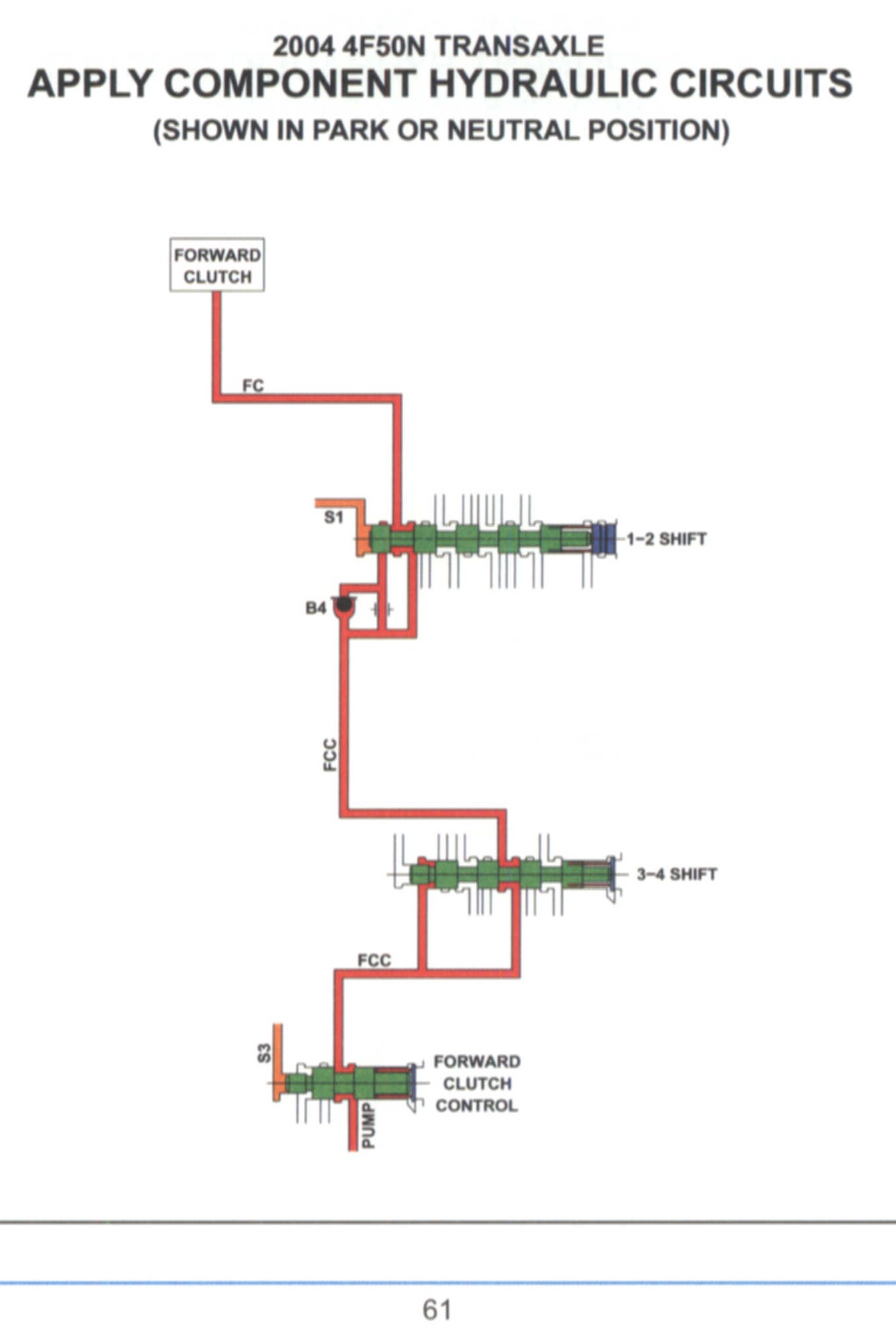

Apply Component Circuit In Park Or Neutral

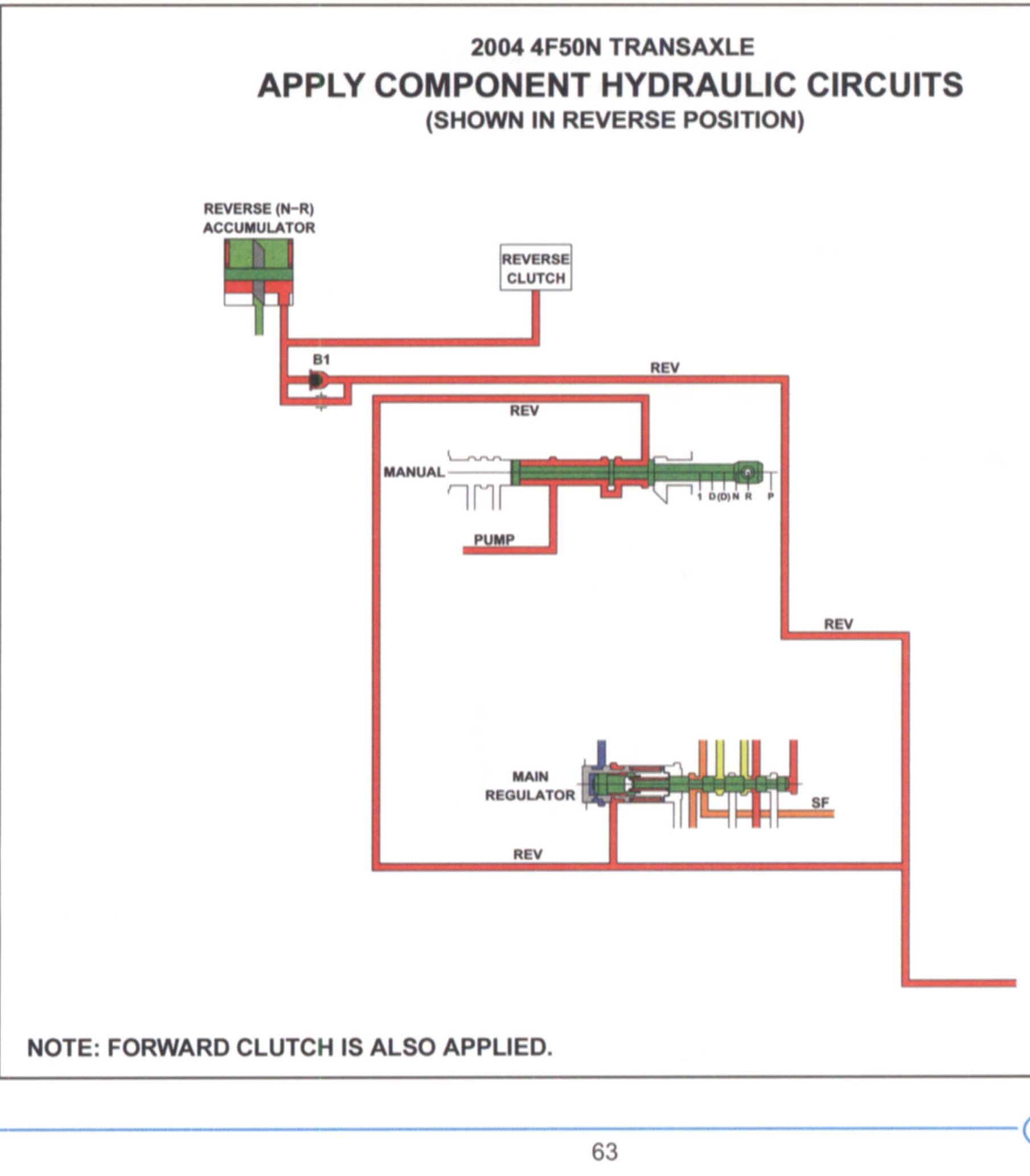

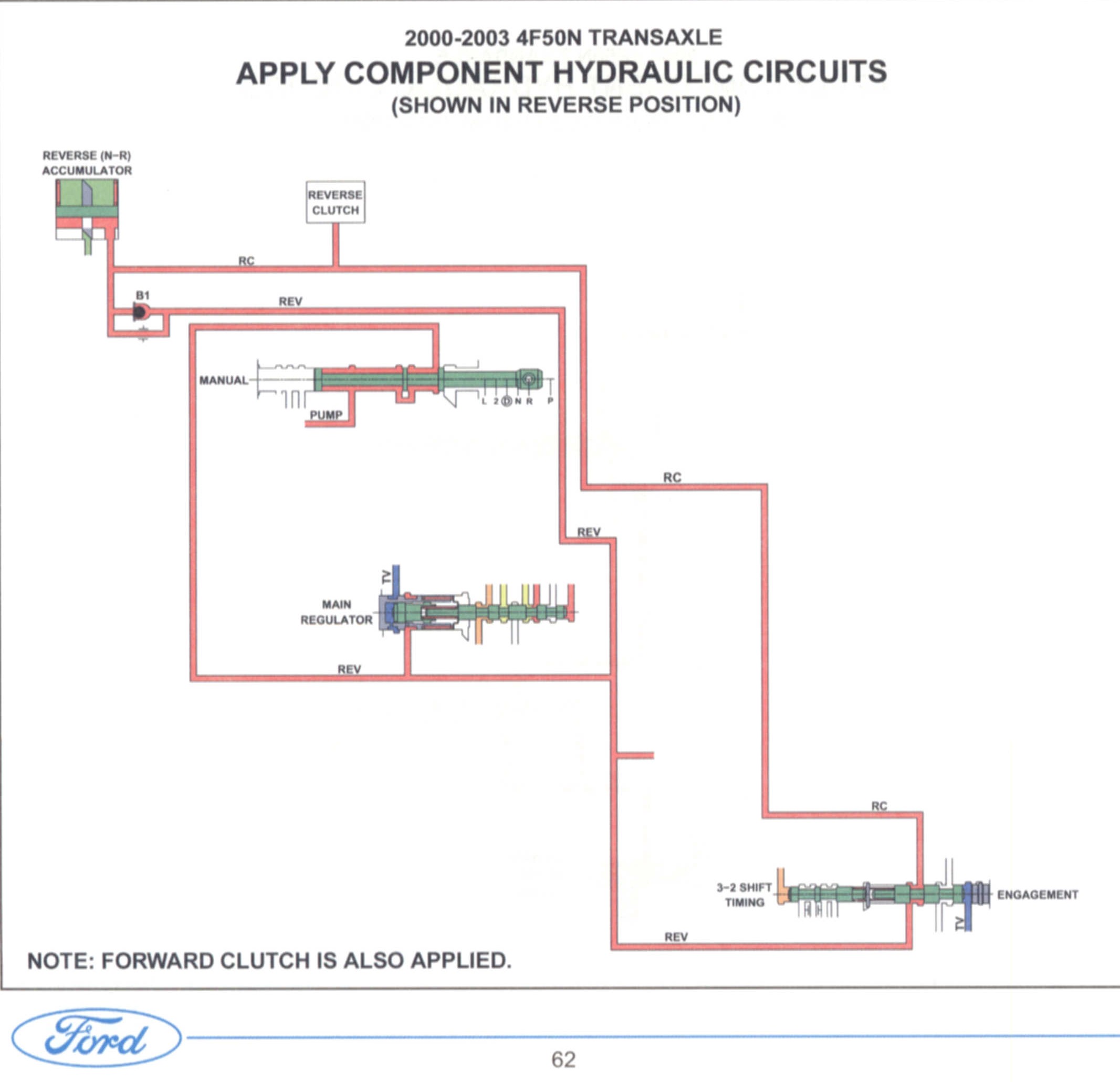

Apply Component Circuit In Reverse

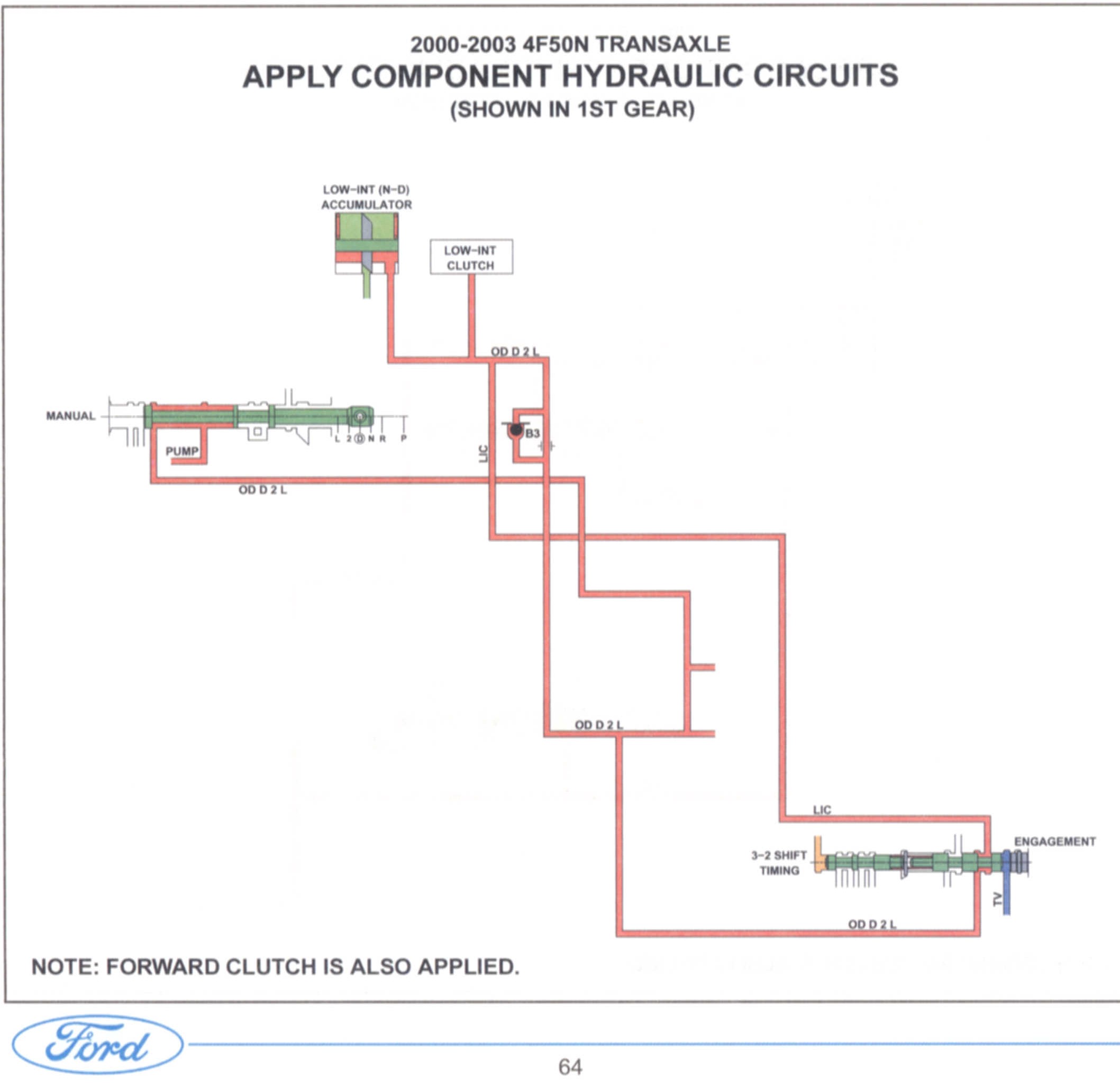

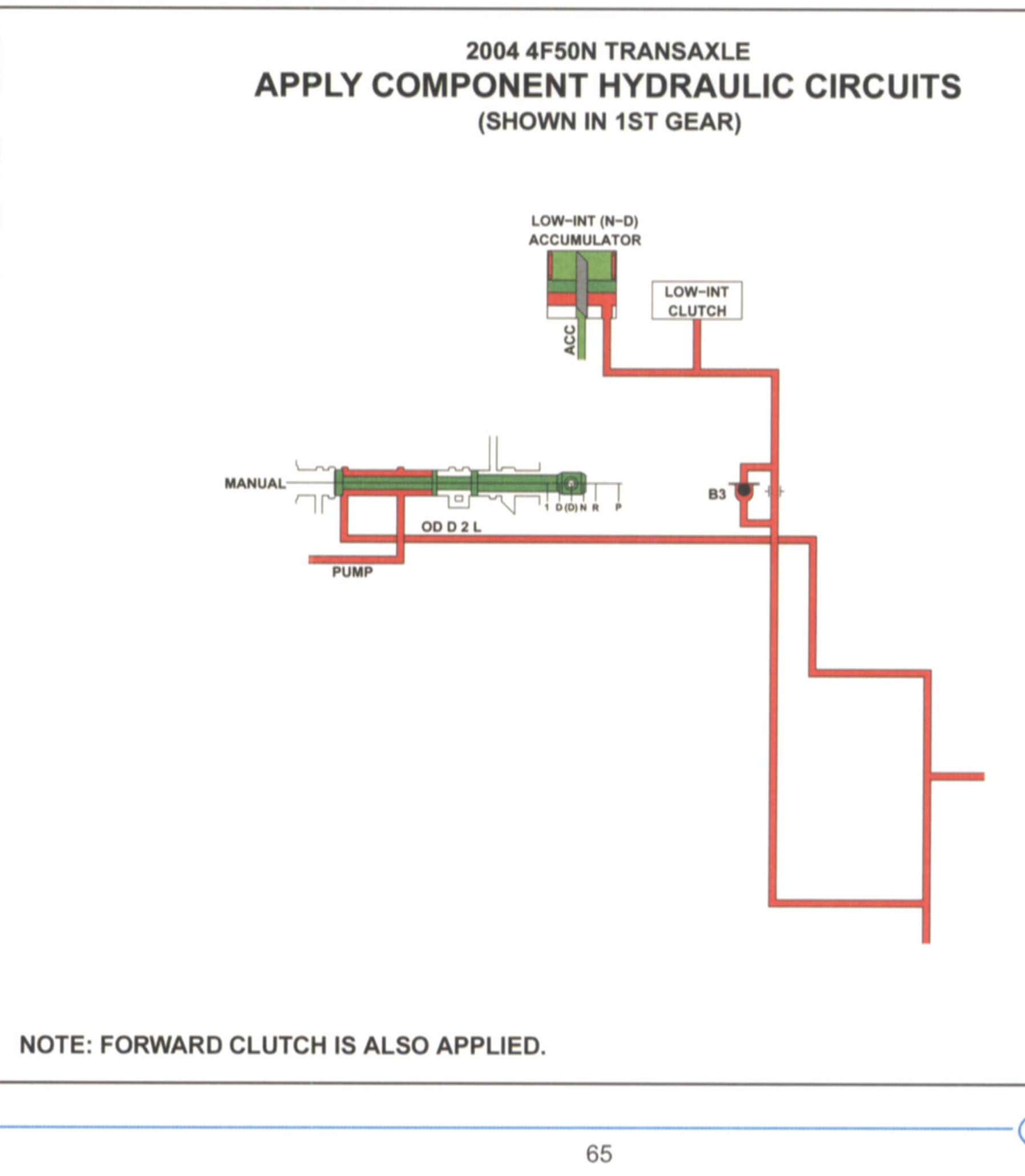

Apply Component Circuit In 1st Gear

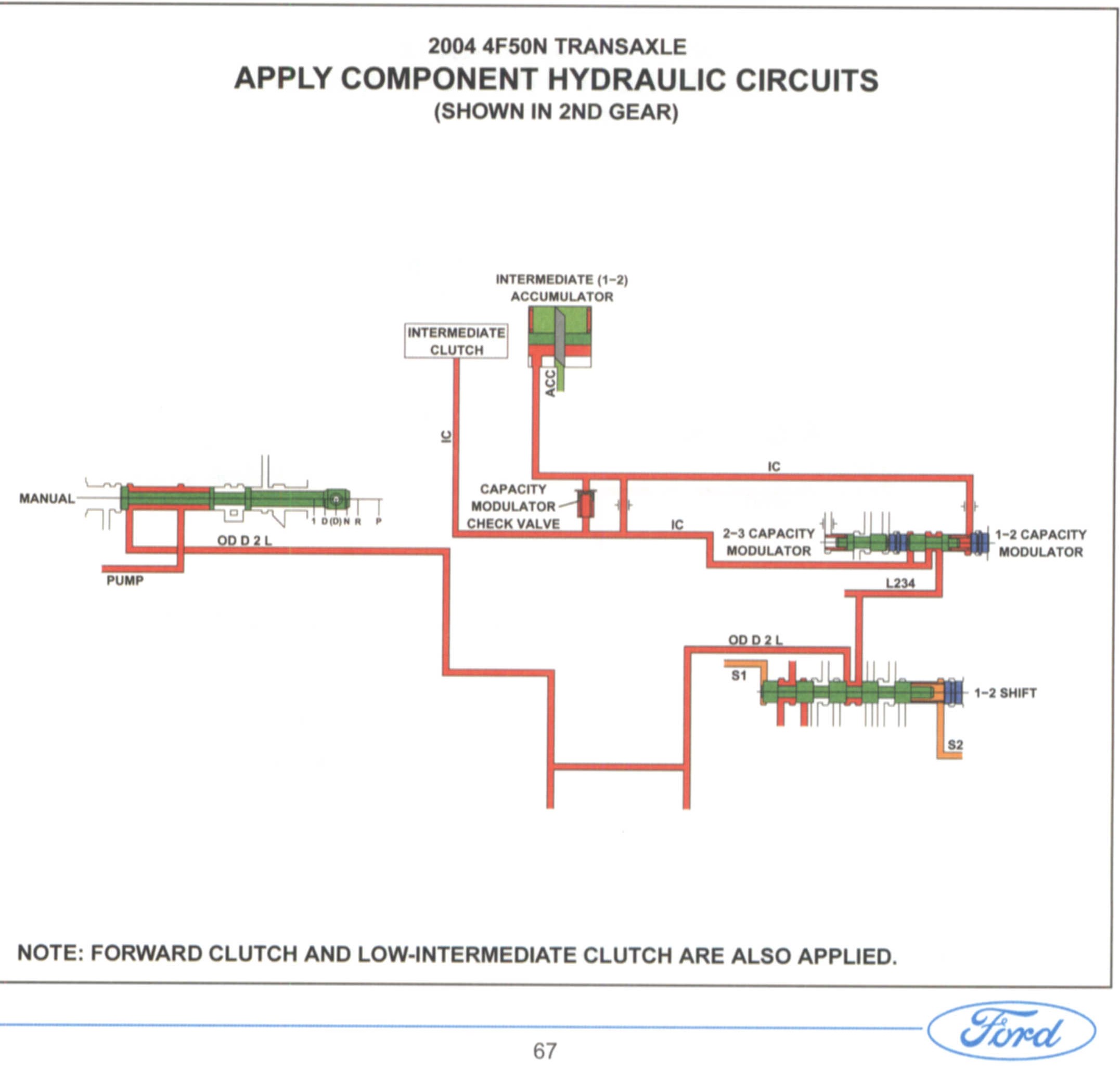

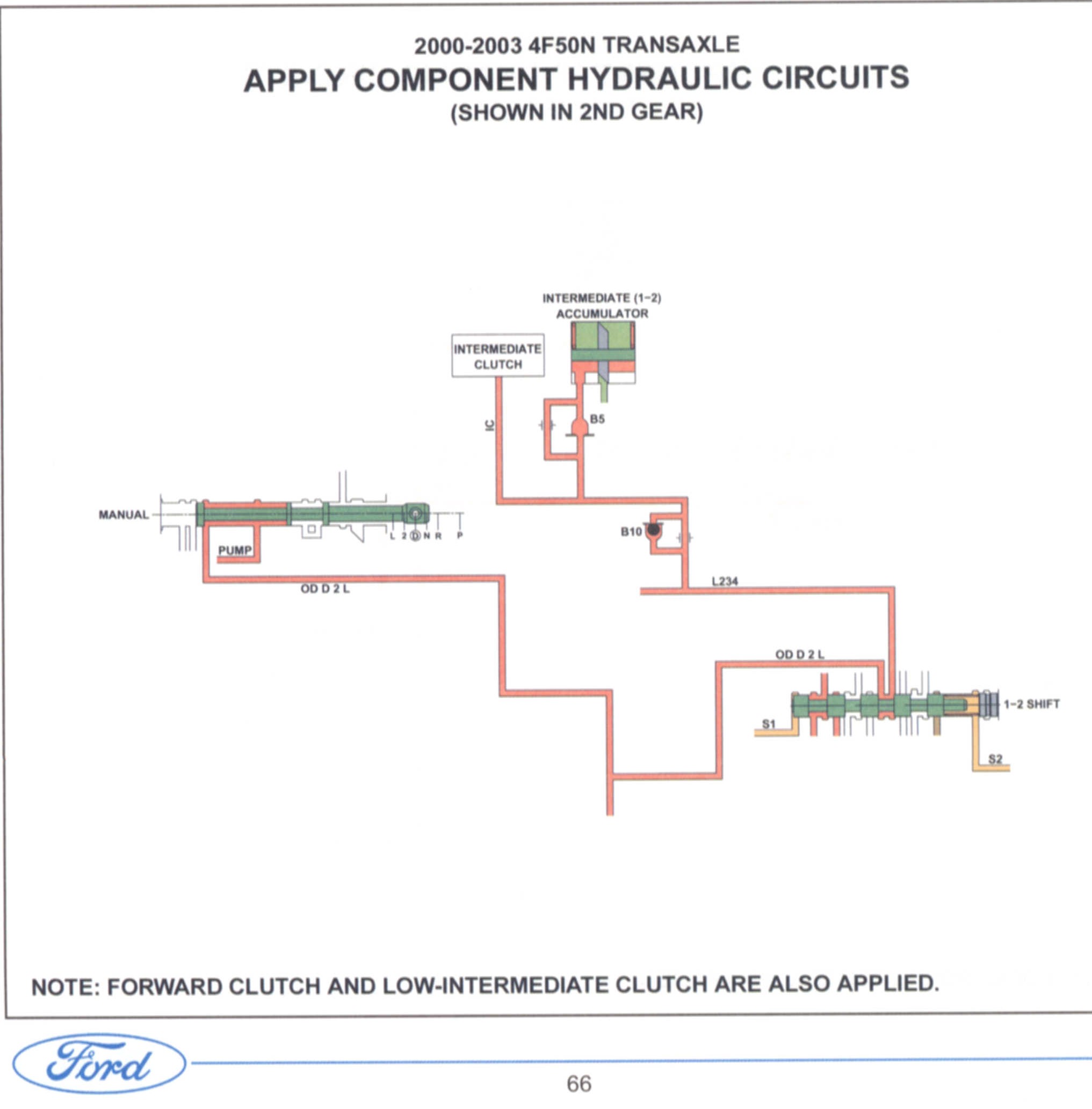

Apply Component Circuit In 2nd Gear

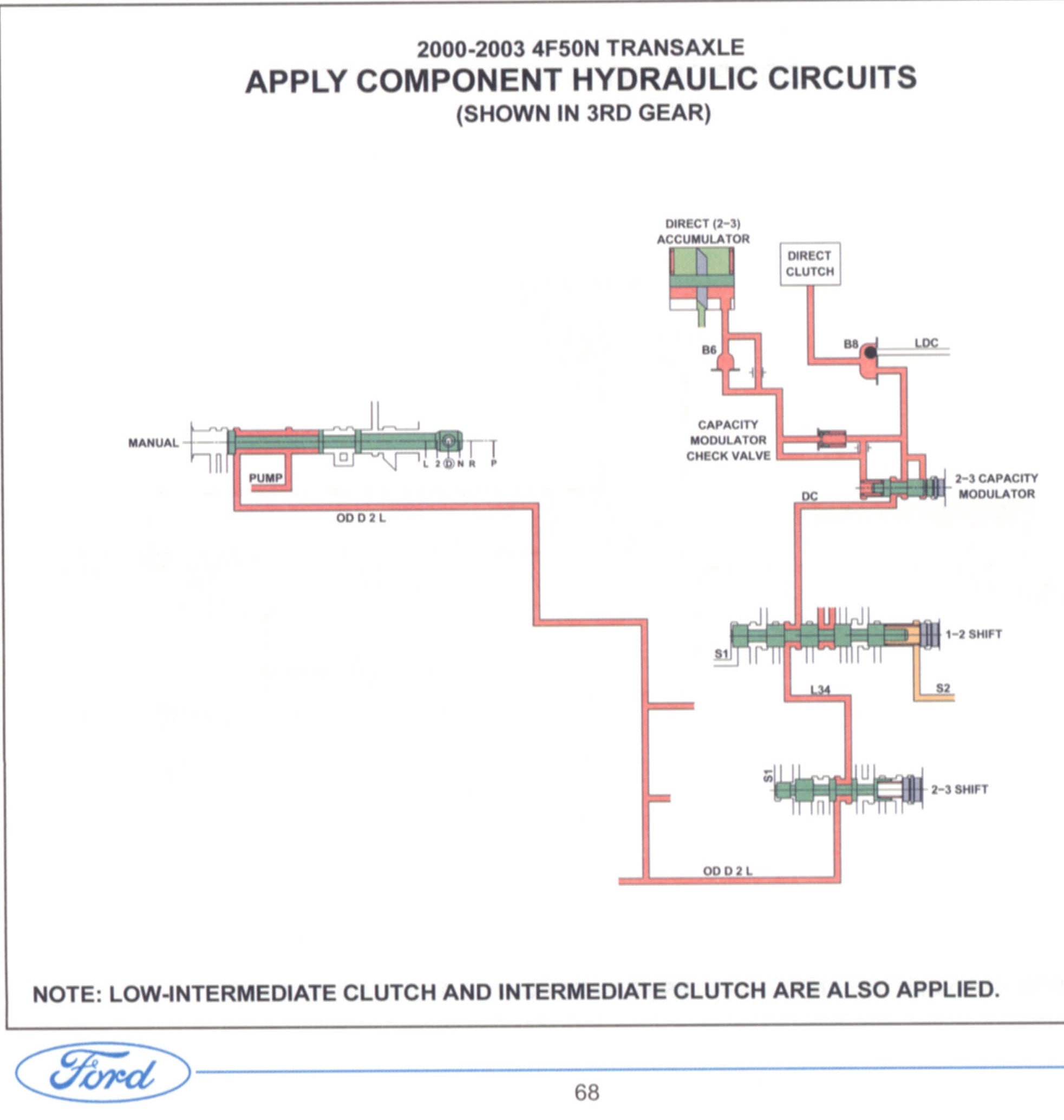

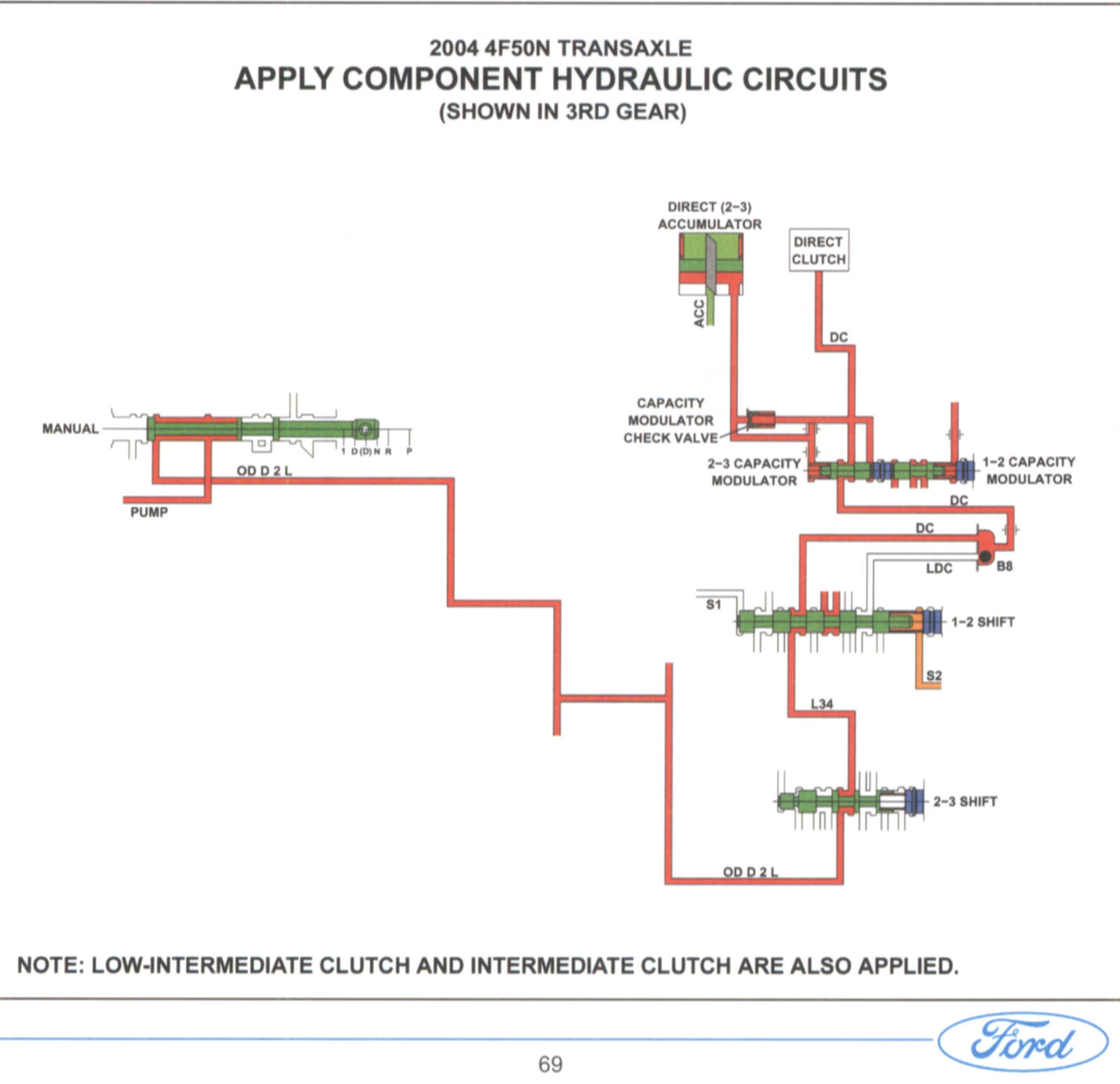

Apply Component Circuit In 3ed Gear

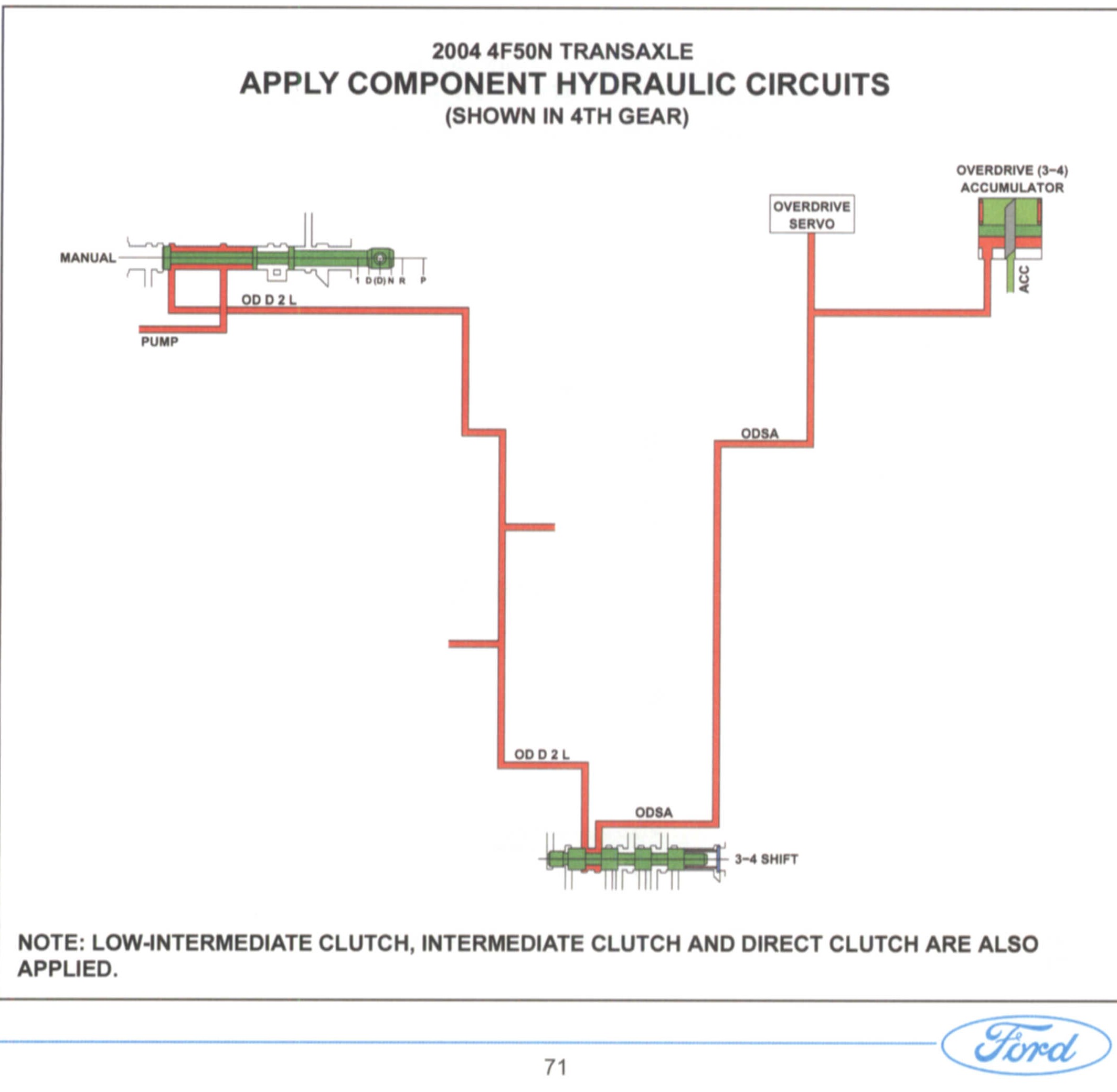

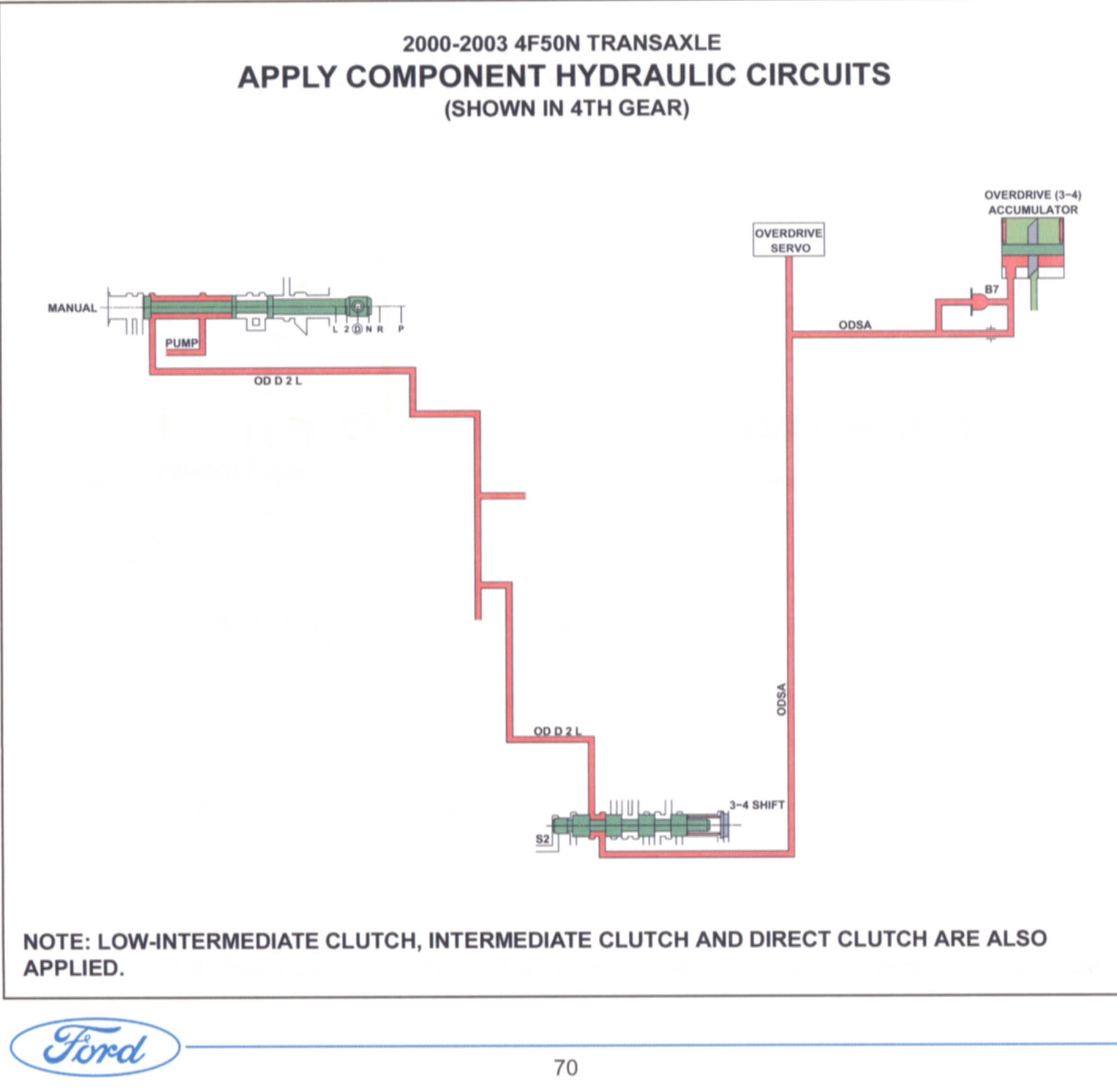

Apply Component Circuit In 4th Gear

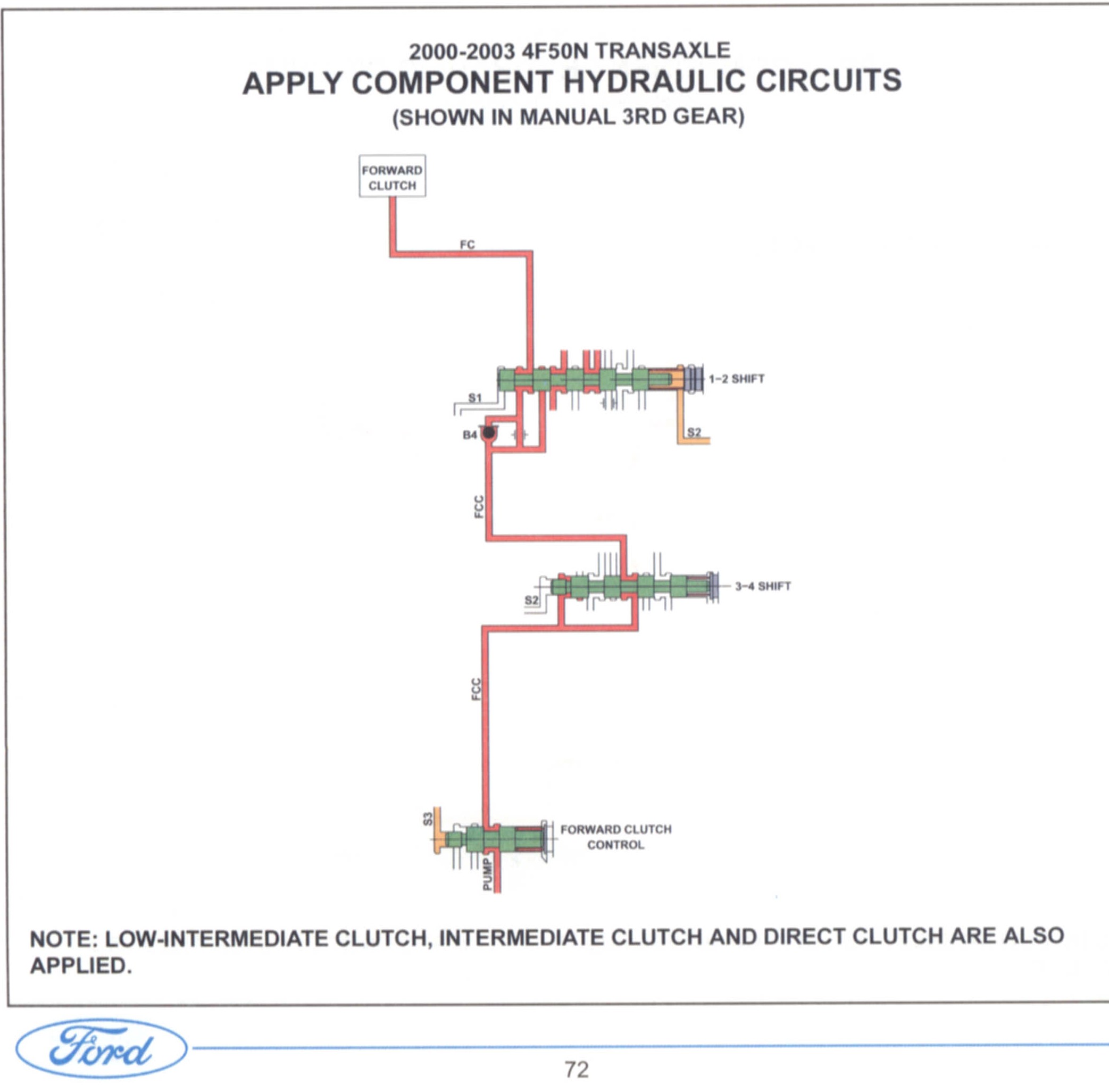

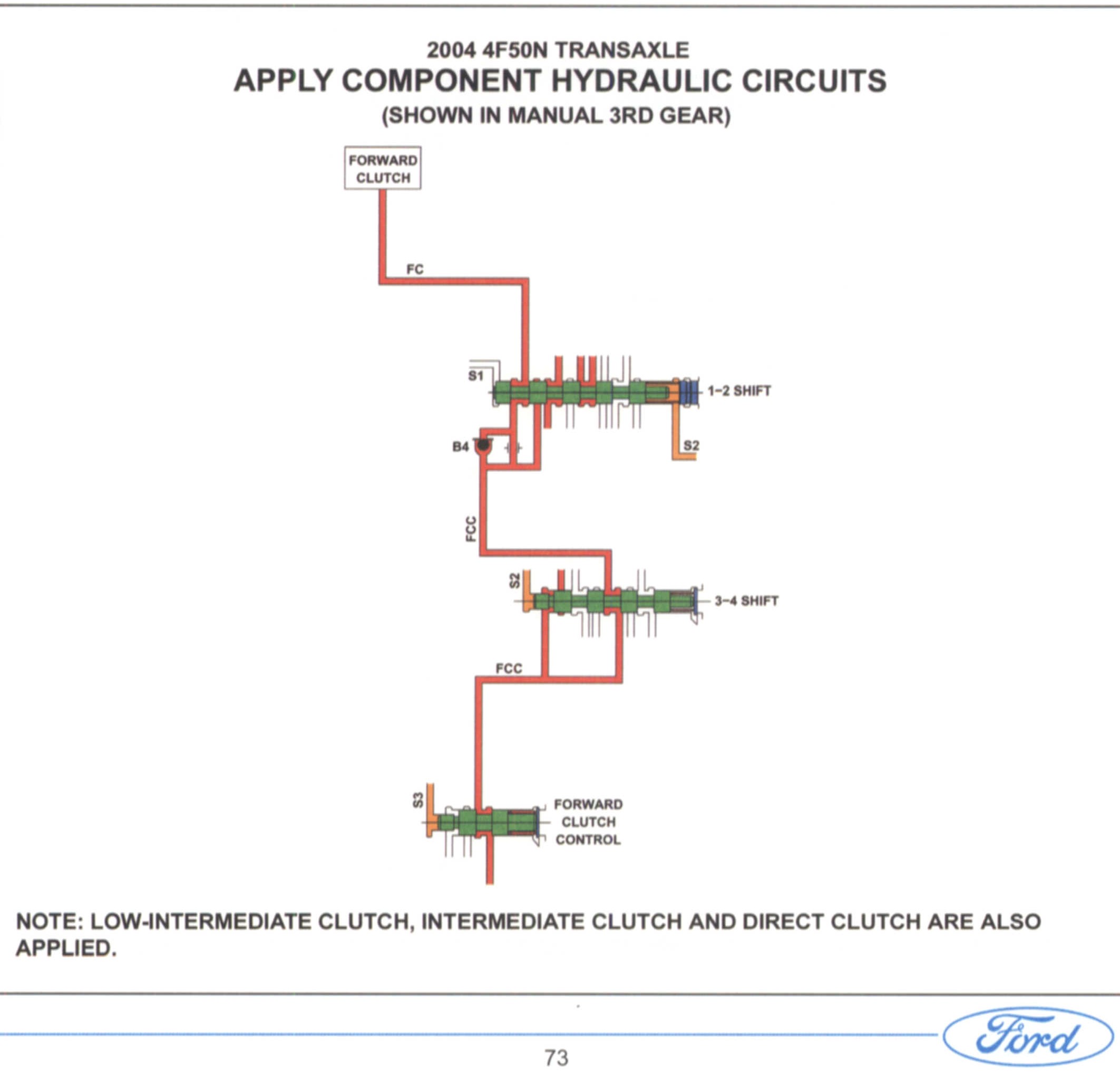

Apply Component Circuit In Manual 3ed Gear

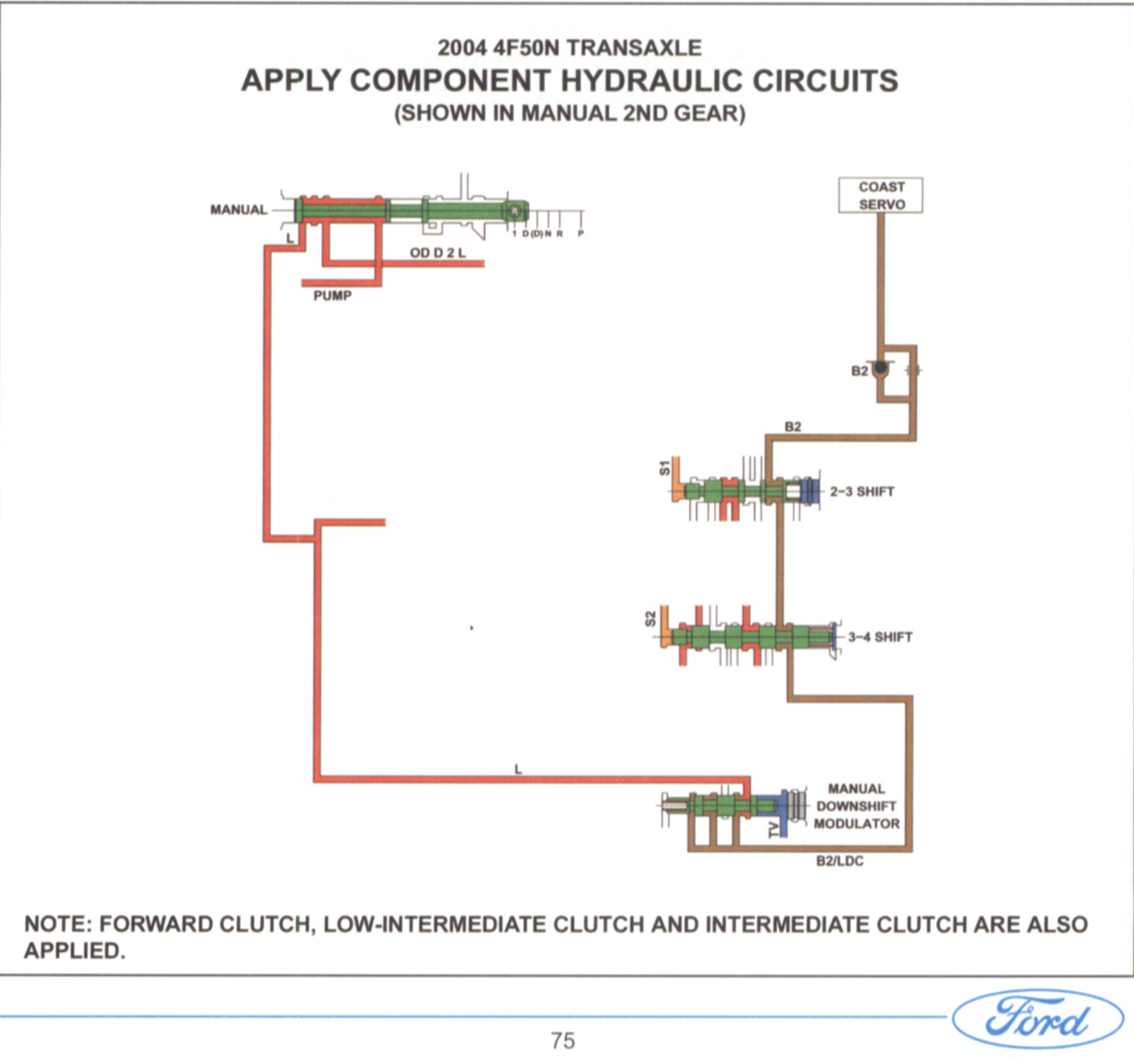

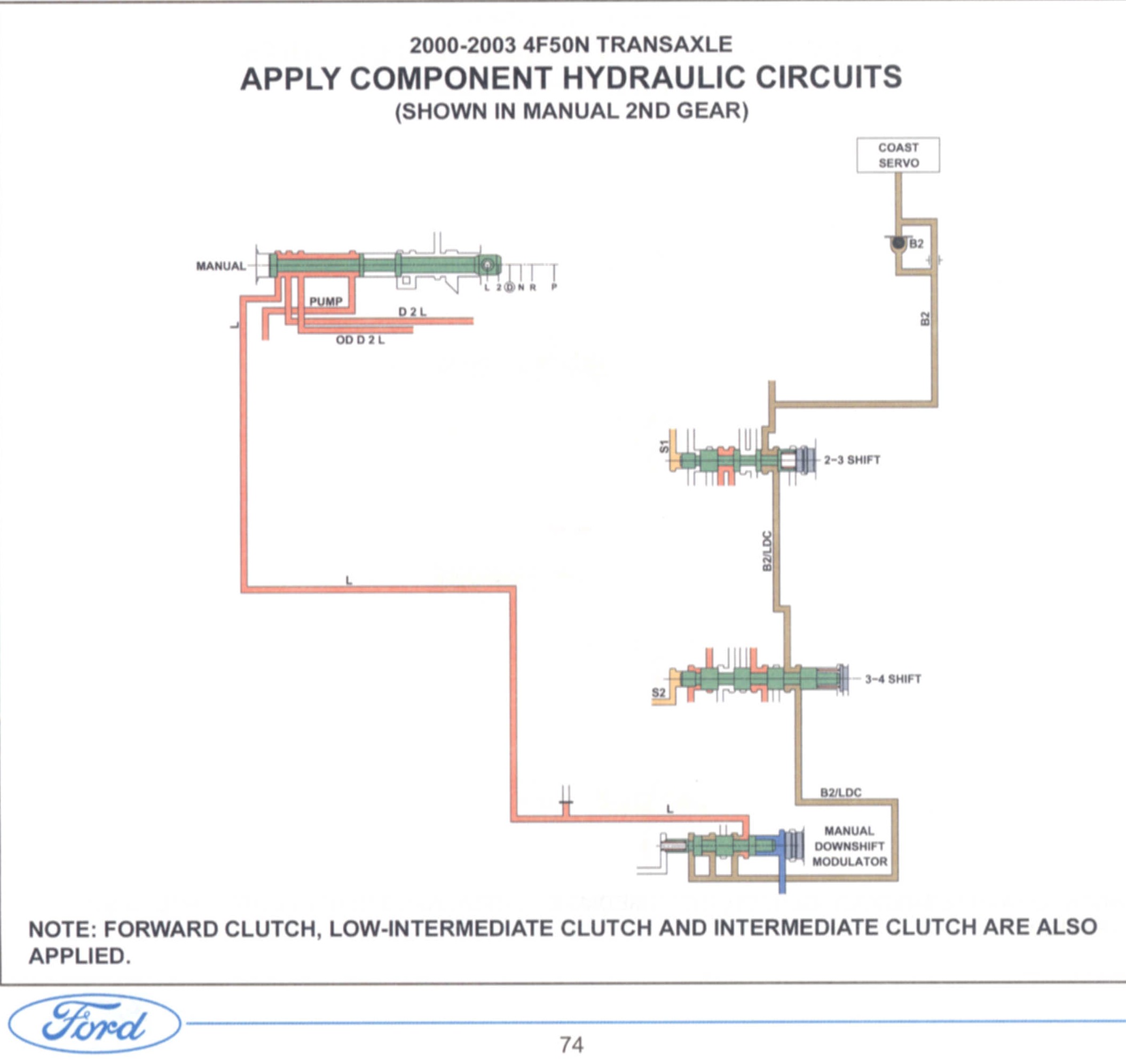

Apply Component Circuit In Manual 2nd Gear

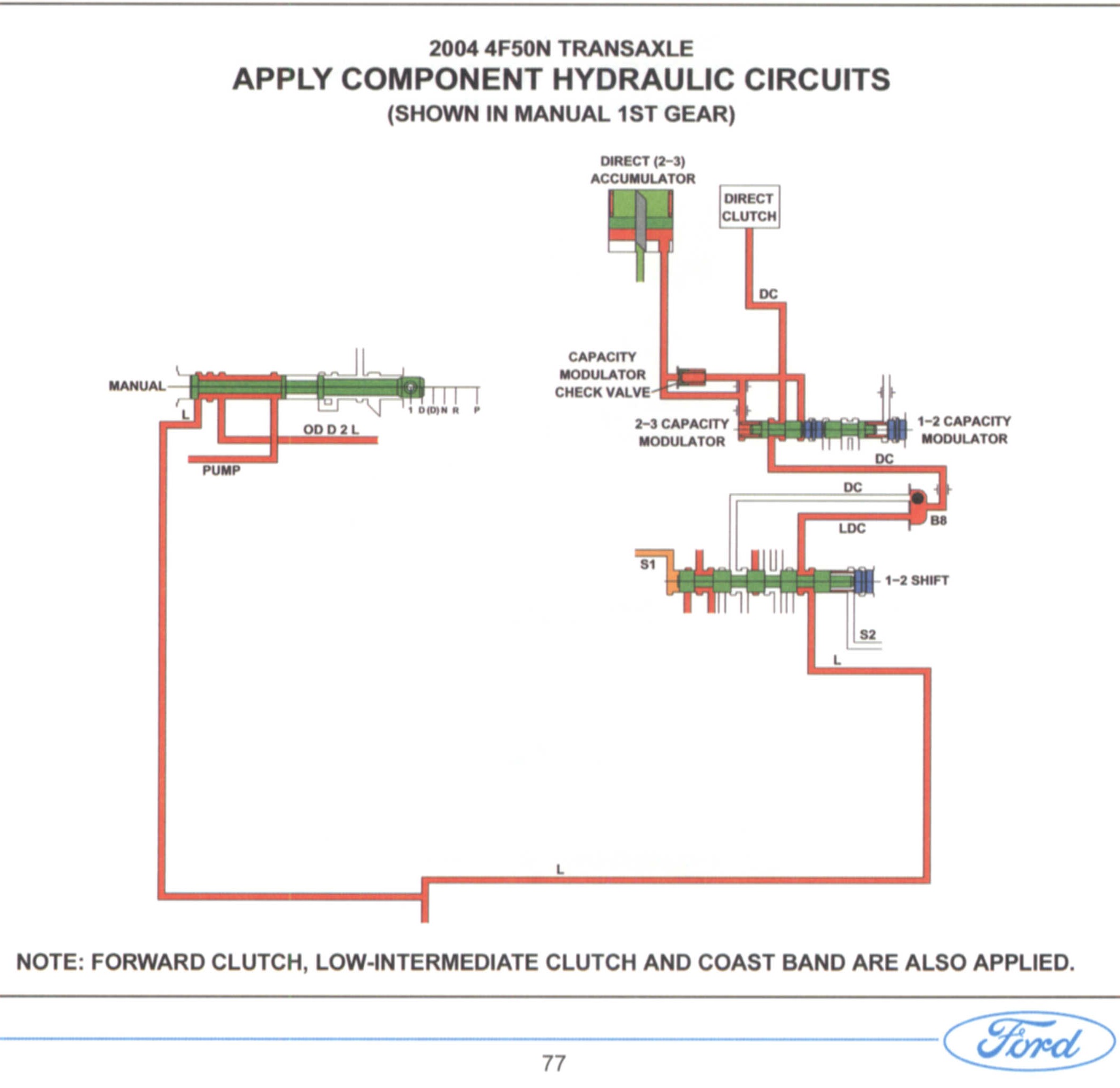

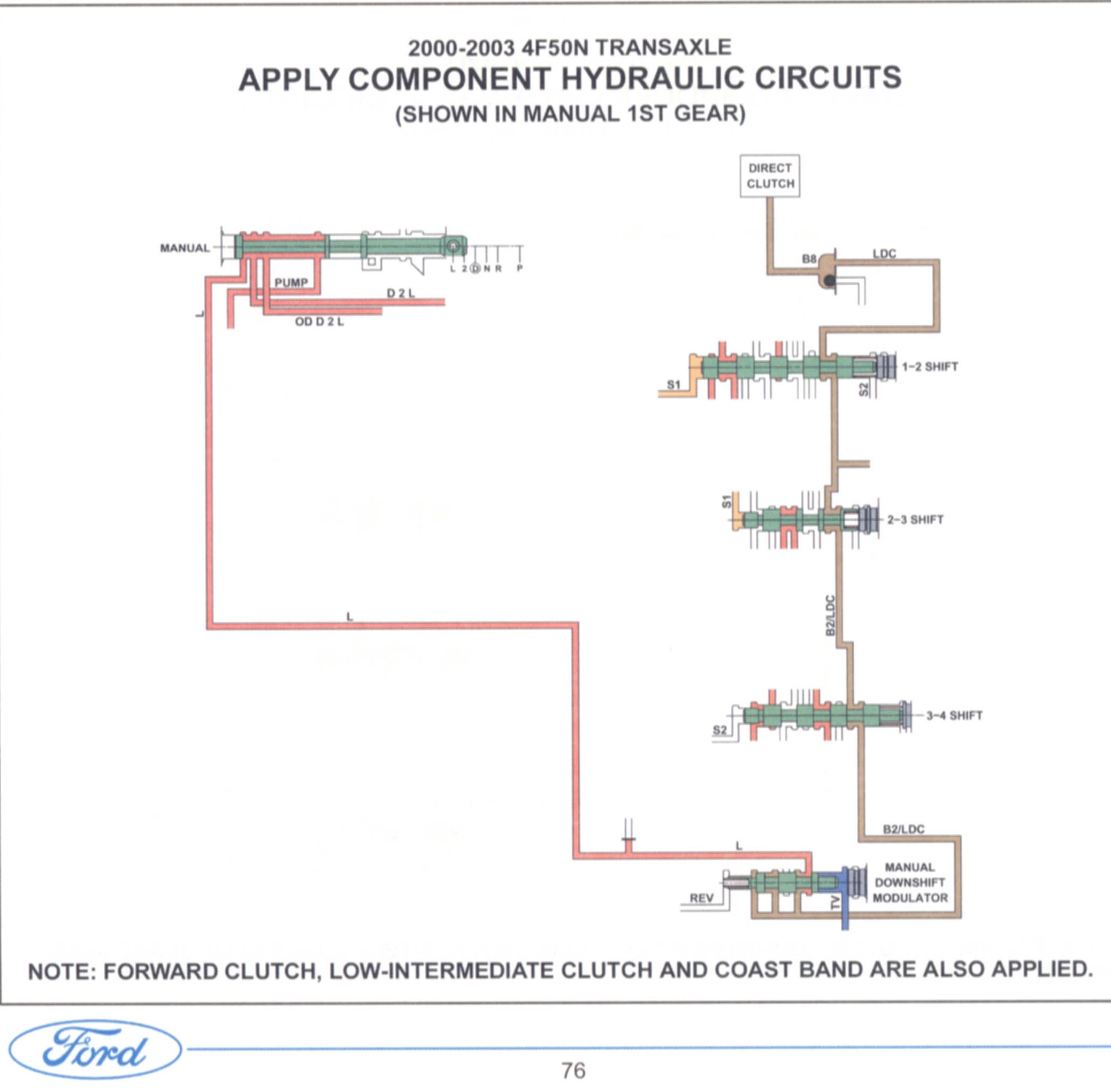

Apply Component Circuit In Manual 1st Gear

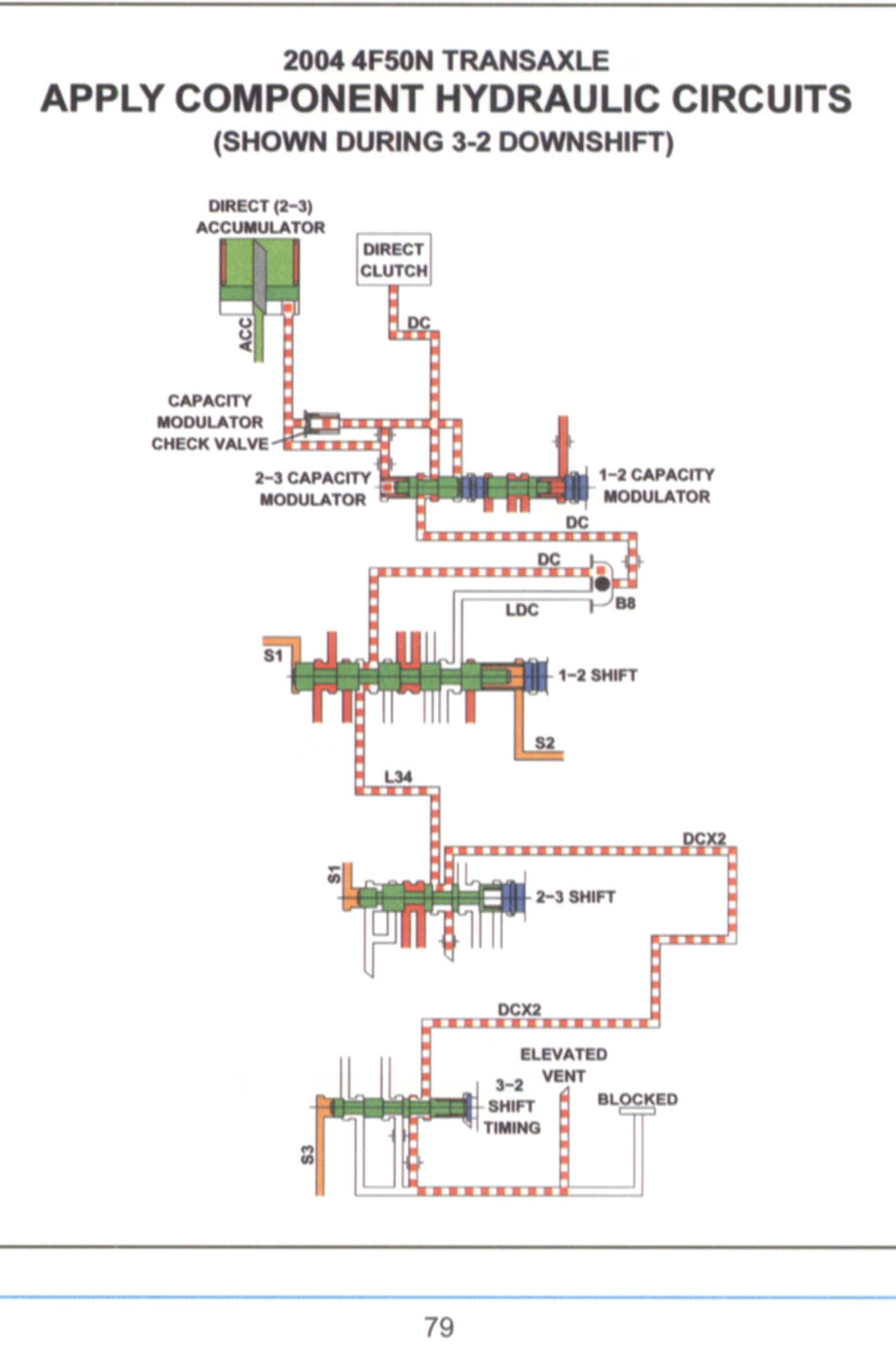

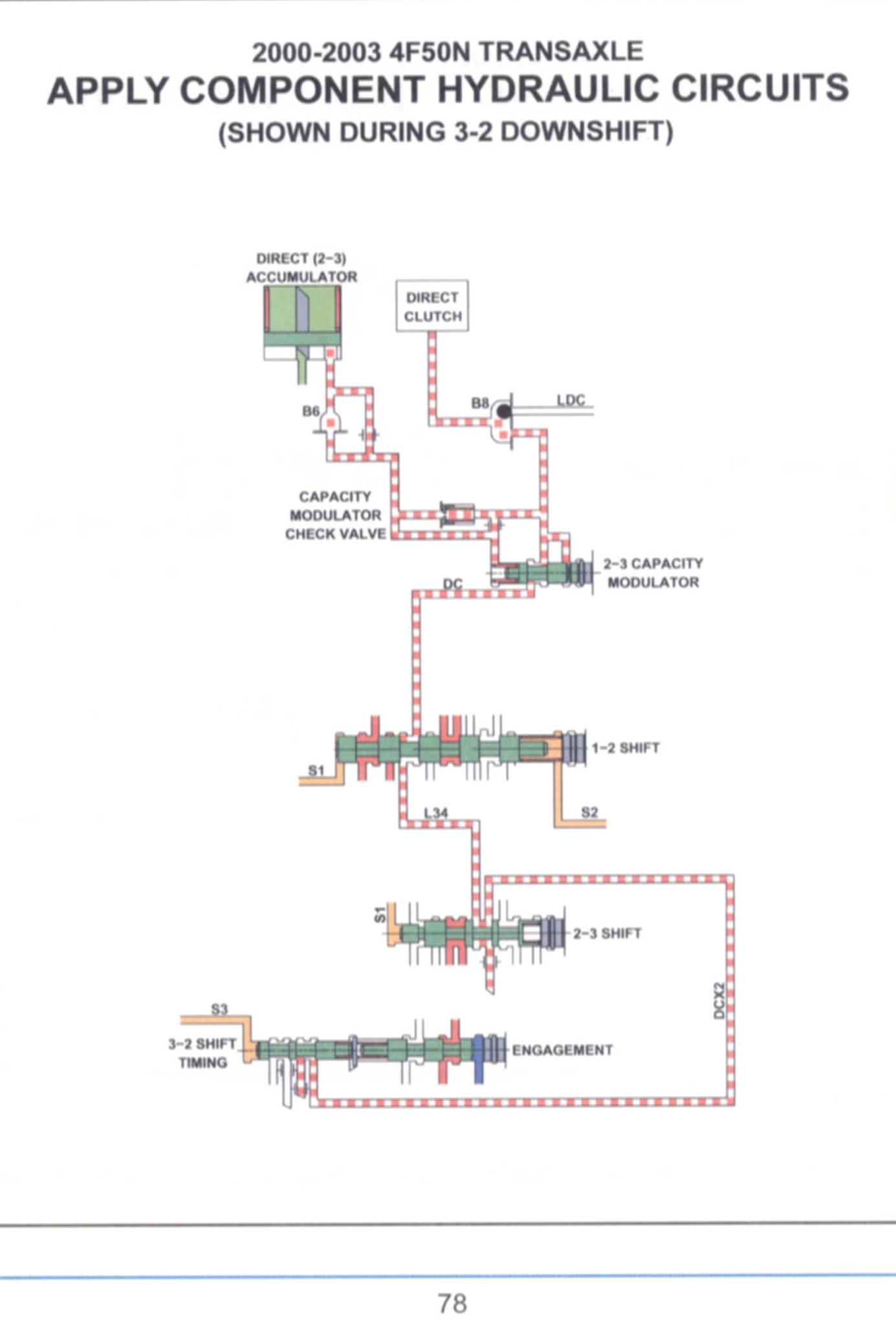

Apply Component Circuit In 3-2 Downshift

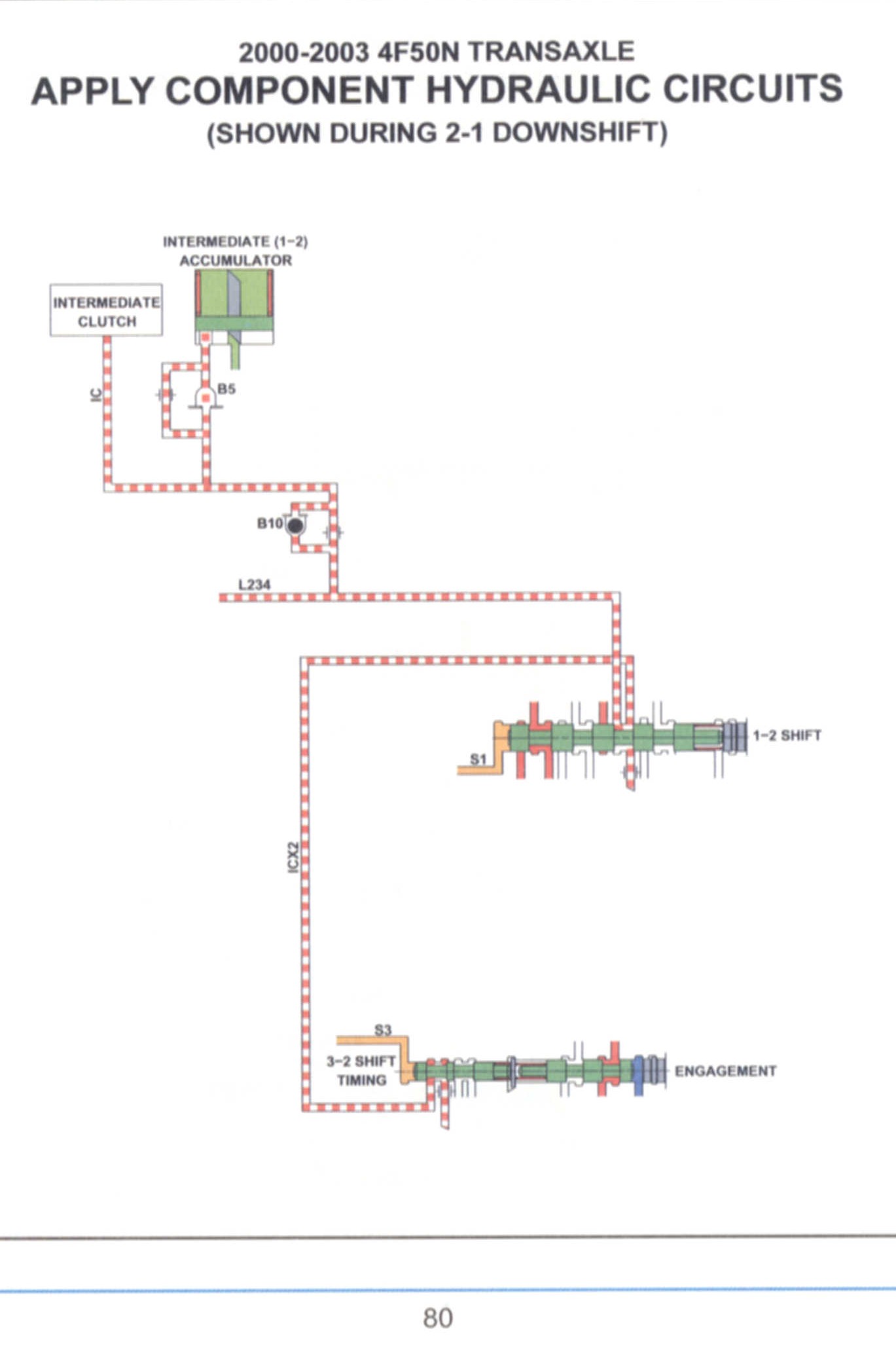

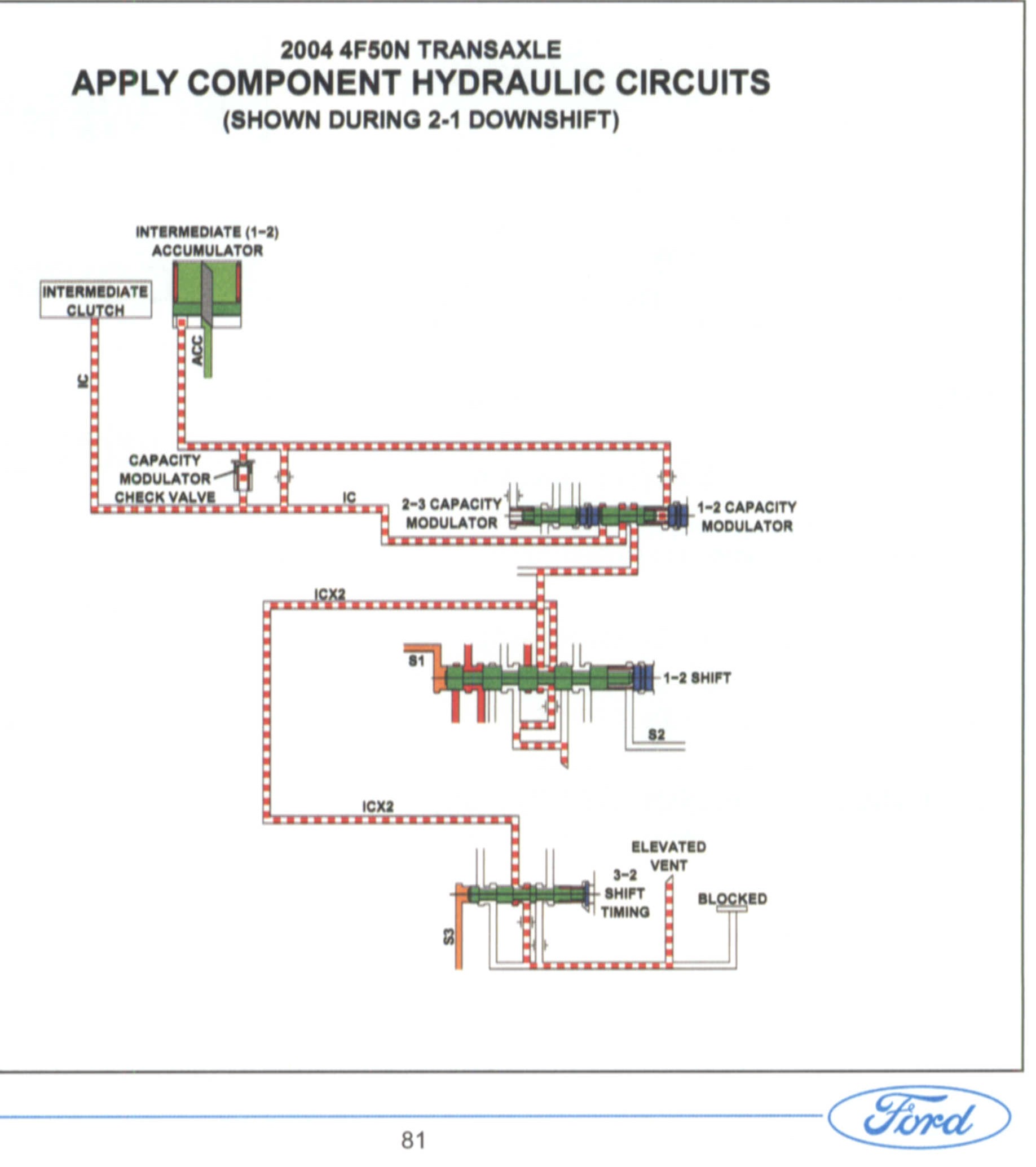

Apply Component Circuit In 2-1 Downshift
