Manual Transmission

NOTE: For tests involving switches the values will be: switch OFF (released)/switch ON (depressed).

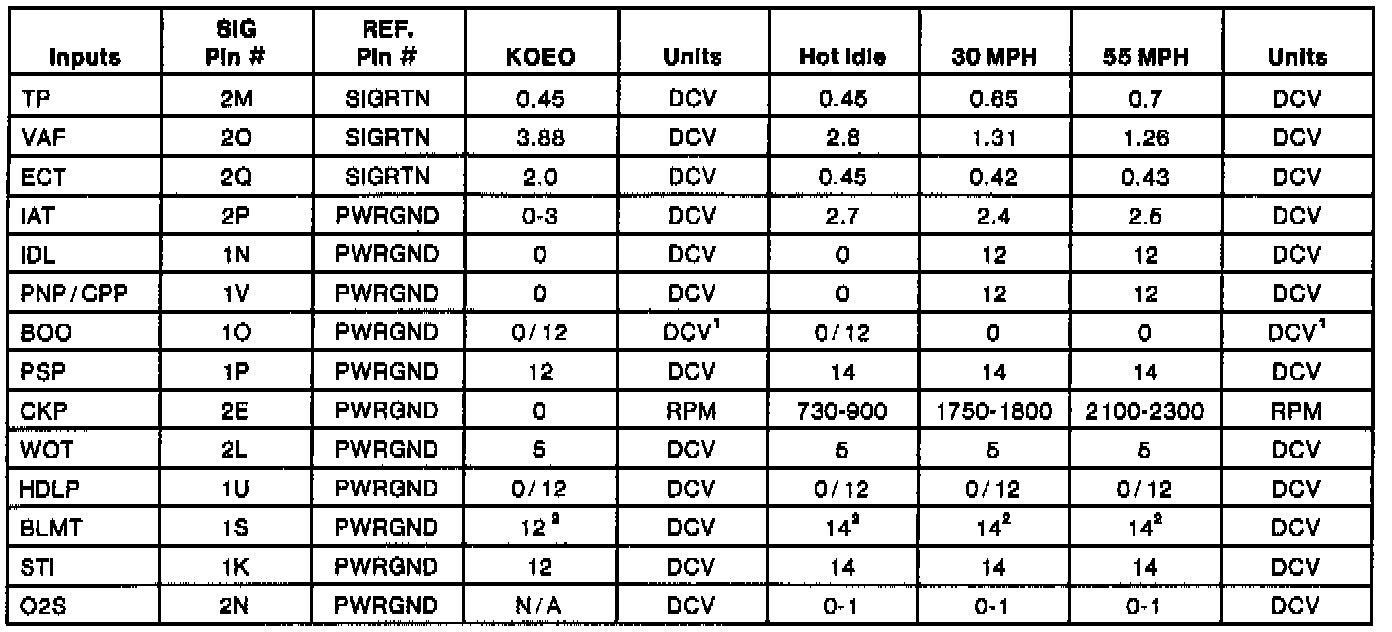

Inputs

Diagnostic Reference Values:

1 12 volts with brake pedal depressed, 0 volts with brake pedal released.

2 A/C On, blower off or in position 1; 0 volts with blower in position 2 or more.

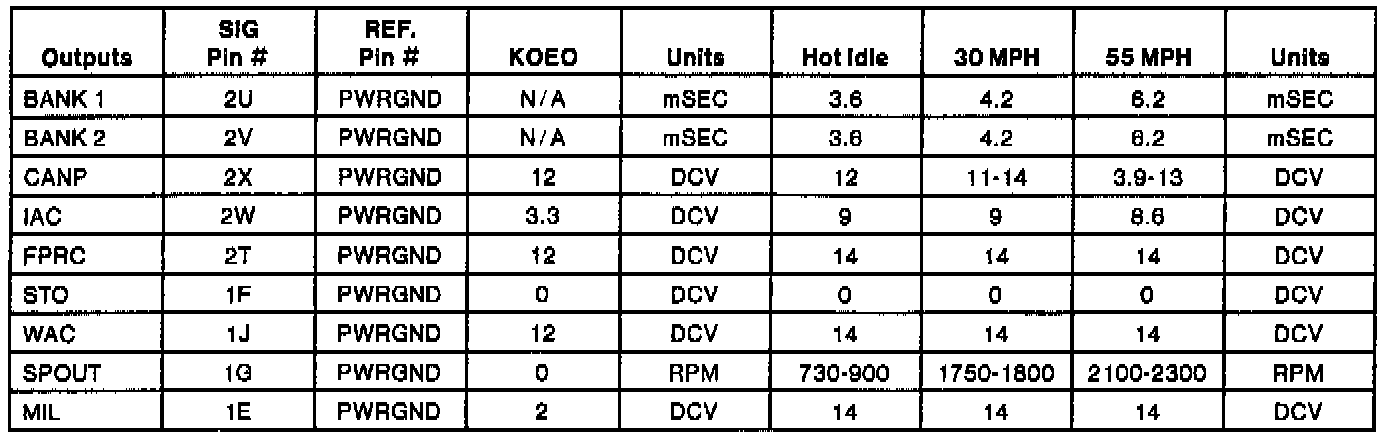

Outputs

Diagnostic Reference Values:

NOTE: Reference values shown may vary approximately +/- 20 percent depending on operating conditions and other factors.
