Cruise Control Switch: Service and Repair

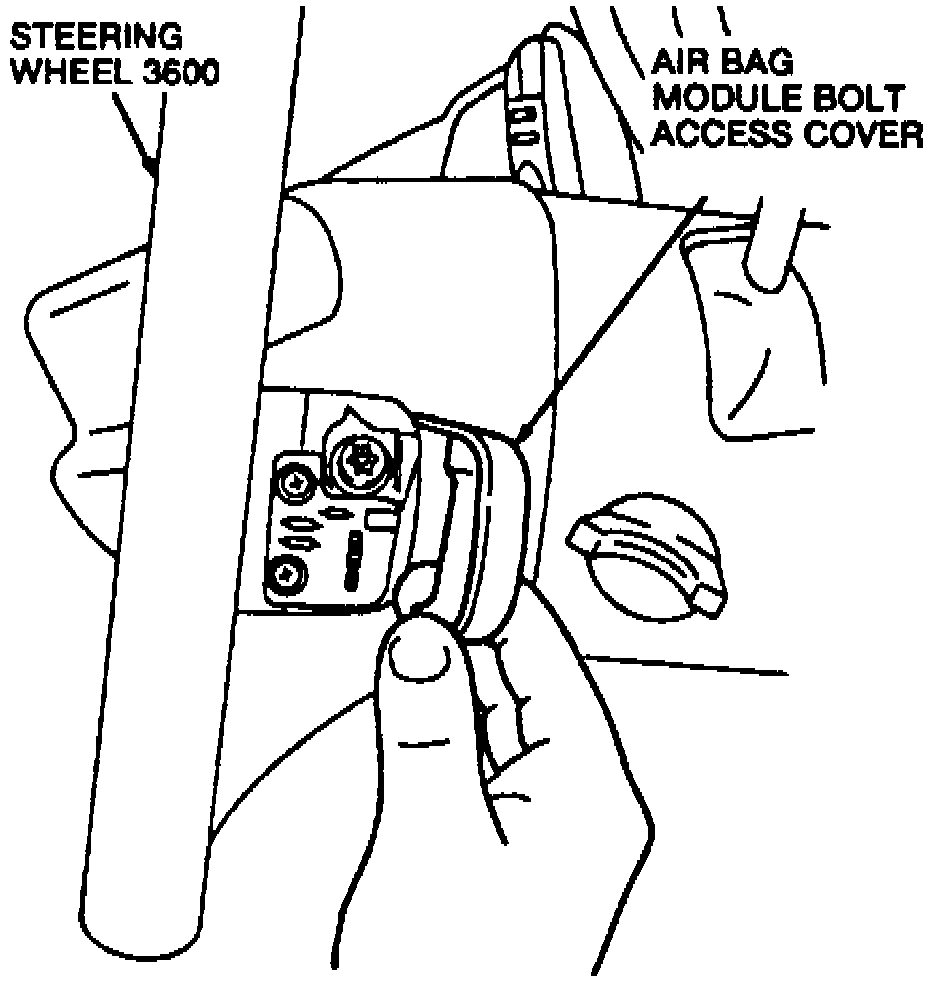

Removing Air Bag Module Bolt Access Cover.:

1. Disable air bag system.
2. Remove air bag module bolt access cover from righthand side of steering wheel, then remove two speed control switch assembly screws.
3. Disconnect speed control switch assembly electrical connector by gently moving switch assembly up and down while pulling it away from side of steering wheel.
4. Remove speed control switch assembly.
5. Reverse procedure to install.
