Full Body Views

Component Locations:







KEYLESS ENTRY CHIME
KEYLESS ENTRY KEYPAD ASSEMBLY
LEFT DOOR LATCH SWITCH
LEFT DOOR LOCK ACTUATOR ASSEMBLY
LEFT DOOR LOCK SWITCH
LEFT FRONT POWER WINDOW MOTOR
LEFT POWER MIRROR
LEFT REAR POWER WINDOW MOTOR
LIFTGATE LOCK ACTUATOR
MASTER WINDOW CONTROL SWITCH
OPENING LIFTGATE GLASS SWITCH
PASSENGER POWER WINDOW CONTROL
PASSENGER POWER WINDOW MOTOR
POWER WINDOW MODULE
REAR POWER WINDOW CONTROL
REAR WIPER MOTOR ASSEMBLY
REAR WIPER RELAY
REAR WIPER/WASHER AMPLIFIER (WITHOUT MOVEABLE LIFTGLASS)
REAR WIPER/WASHER DIODE/JUNCTION BOX
RIGHT DOOR LATCH SWITCH
RIGHT DOOR LOCK ACTUATOR
RIGHT DOOR LOCK SWITCH
RIGHT POWER MIRROR
RIGHT REAR POWER WINDOW MOTOR
SLIDING DOOR CONTACT SWITCHS
SLIDING DOOR LOCK ACTUATOR

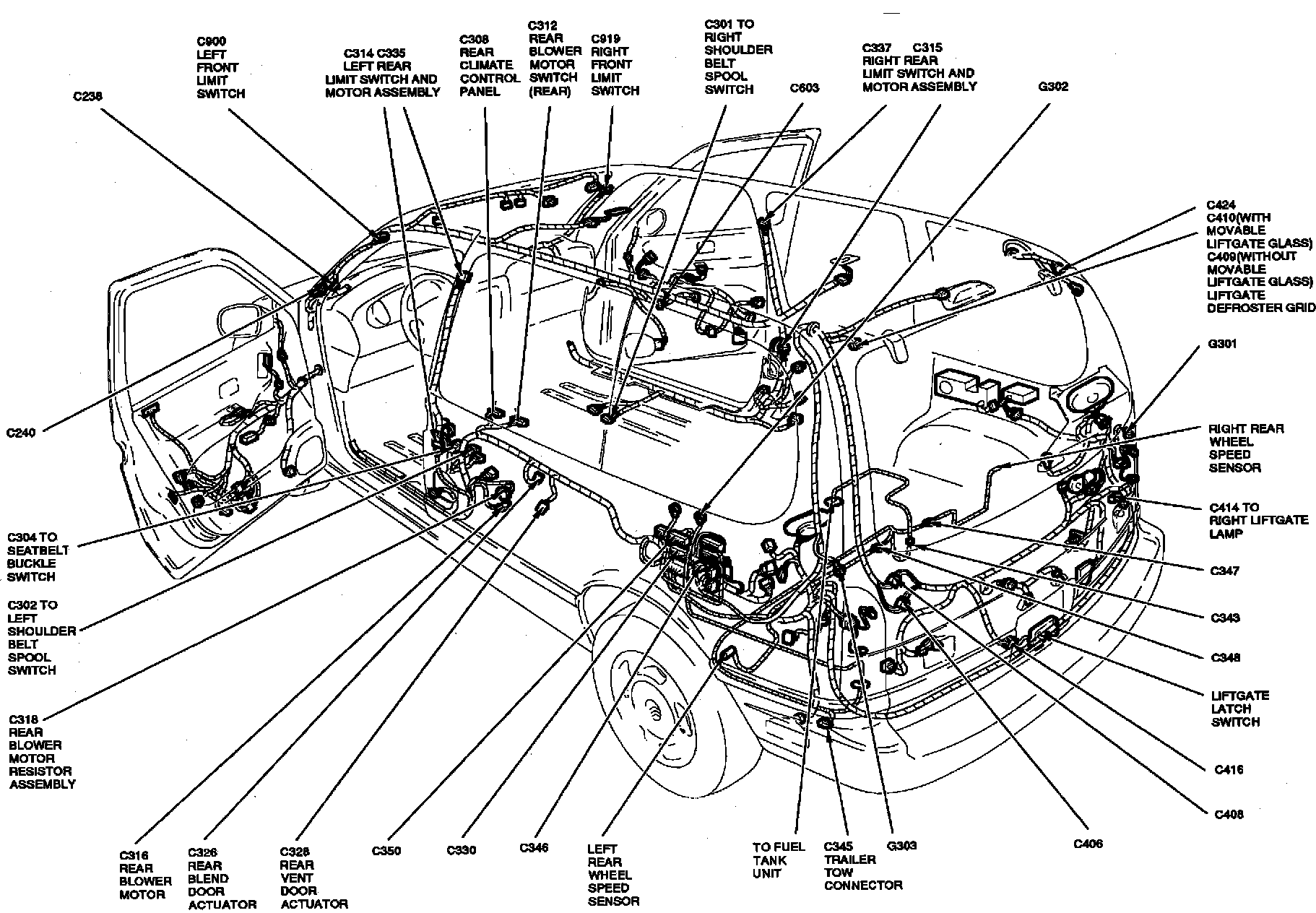

Component Locations:






LEFT FRONT LIMIT SWITCH
LEFT REAR LIMIT SWITCH AND MOTOR ASSEMBLY
LIFTGATE DEFROSTER GRID
REAR CLIMATE CONTROL PANEL
REAR BLOWER MOTOR SWITCH
RIGHT FRONT LIMIT SWITCH
RIGHT SHOULDER BELT SPOOL SWITCH
RIGHT REAR LIMIT SWITCH AND MOTOR ASSEMBLY
RIGHT REAR WHEEL SPEED SENSOR
RIGHT LIFTGATE LAMP
LIFTGATE LATCH SWITCH
TRAILER TOW CONNECTOR
FUEL TANK UNIT
LEFT REAR WHEEL SPEED SENSOR
REAR VENT DOOR ACTUATOR
REAR BLEND DOOR ACTUATOR
REAR BLOWER MOTOR
REAR BLOWER MOTOR RESISTOR ASSEMBLY
LEFT SHOULDER BELT SPOOL SWITCH
SEAT BELT BUCKLE SWITCH

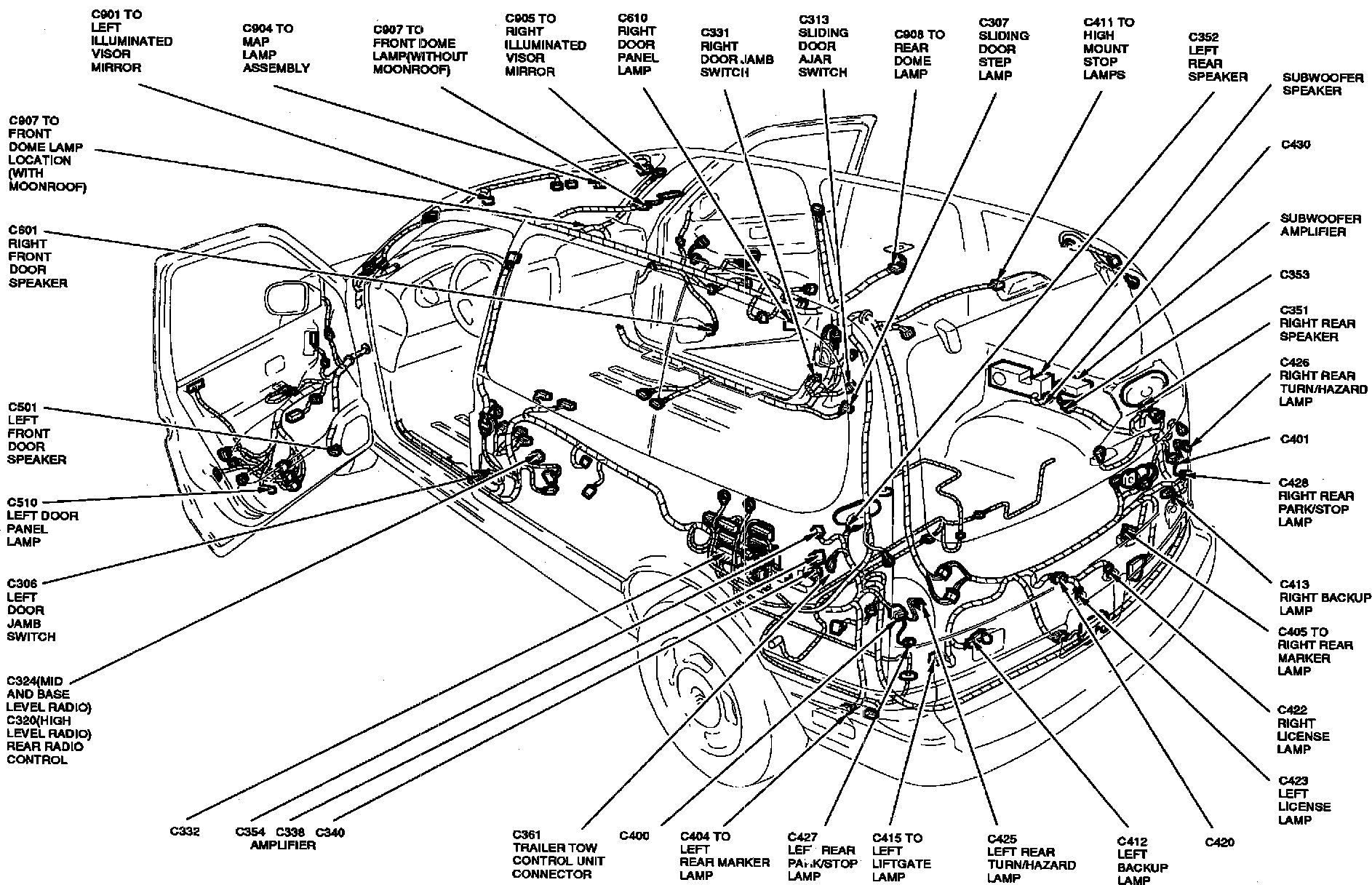

Component Locations:






AMPLIFIER C332
AMPLIFIER C338
AMPLIFIER C340
AMPLIFIER C354
FRONT DOME LAMP
HIGH MOUNT STOP LAMPS
LEFT BACKUP LAMP
LEFT DOOR JAMB SWITCH
LEFT DOOR PANEL LAMP
LEFT FRONT DOOR SPEAKER
LEFT ILLUMINATED VISOR MIRROR
LEFT LICENSE LAMP
LEFT LIFTGATE LAMP
LEFT REAR MARKER LAMP
LEFT REAR PARK/STOP LAMP
LEFT REAR SPEAKER
LEFT REAR TURN/HAZARD LAMP
MAP LAMP ASSEMBLY
REAR DOME LAMP
RIGHT BACKUP LAMP
RIGHT DOOR JAMB SWITCH
RIGHT DOOR PANEL LAMP
RIGHT FRONT DOOR SPEAKER
RIGHT ILLUMINATED VISOR MIRROR
RIGHT LICENSE LAMP
RIGHT REAR MARKER LAMP
RIGHT REAR PARK/STOP LAMP
RIGHT REAR SPEAKER
RIGHT REAR TURN/HAZARD LAMP
SLIDING DOOR AJAR SWITCH
SLIDING DOOR STEP LAMP
SUBWOOFER AMPLIFIER
SUBWOOFER SPEAKER
TRAILER TOW CONTROL UNIT CONNECTOR
