Fuel Injection

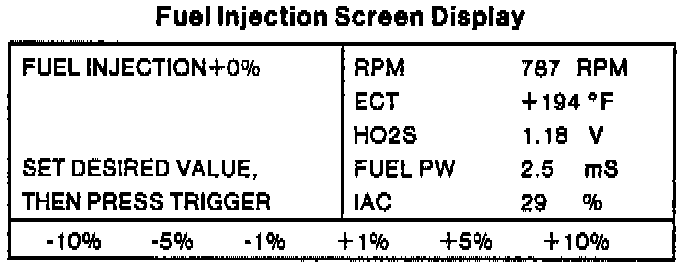

FUEL INJECTION is set at +0%. Use the number keys, 3 through 8, to set the desired fuel injection value. The setting range is -25% to +25%. Engine rpm, ECT sensor temperature, Heated Oxygen Sensor (HO2S) voltage, fuel pulse width (FUEL PW) and IAC valve opening are displayed. When this test is done, press CANCEL to return to the ACTIVE COMMAND MODES menu (Screen Display J).
