Fuel Pump Relay

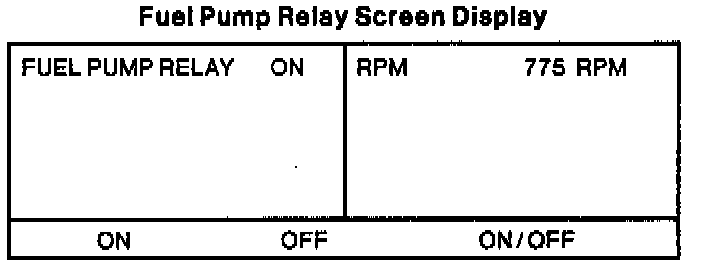

The FUEL PUMP RELAY can be set to ON, OFF, or ON/OFF (relay is repeatedly cycled on and off in 3 second intervals) by pressing the number key 3, 5, or 7. Engine rpm is displayed. When this test is completed, press CANCEL to return to the ACTIVE COMMAND MODES menu (Screen Display J).
