Ignition Timing

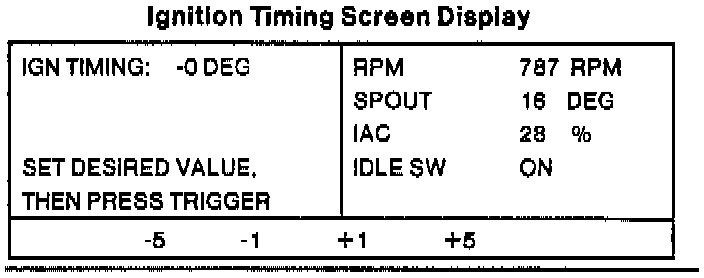

The IGNITION TIMING can be varied from 10 degrees (10 degrees BTDC) to O degrees by pressing any of the number keys, 4 through 7. Engine rpm, SPOUT degree, IAC valve opening, and IDLE SW are displayed. When this test is completed, press CANCEL to return to the ACTIVE COMMAND MODES menu (Screen Display J).
