Power Balance

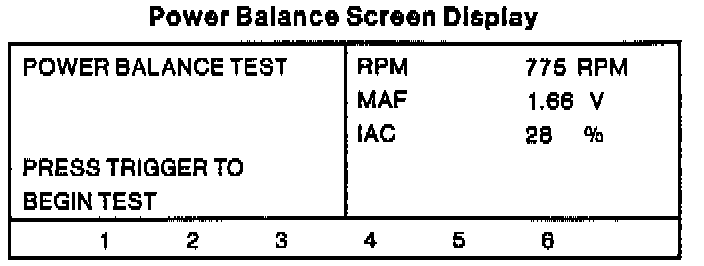

POWER BALANCE: Fuel injectors to any or all of the six cylinders can be initialized by pressing key number 3 for cylinder # 1, key number 4 for cylinder #2, etc..

Engine rpm, MAF sensor voltage and IAC valve opening are displayed. When this test is completed, press CANCEL to return to the ACTIVE COMMAND MODES menu (Screen Display J).
