Self-Learning Control

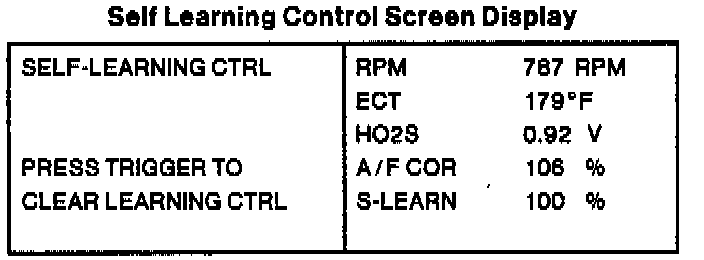

The SELF-LEARNING CONTROL learned data for the air/fuel ratio feedback compensation can be cleared by pressing TRIGGER. Engine rpm, ECT sensor temperature, HO2S voltage, and A/F COR (air/fuel correction ratio compensation) are displayed. When this test is completed, press CANCEL to return to the ACTIVE COMMAND MODES menu (Screen Display J).
