Diagnostic Test Mode Results

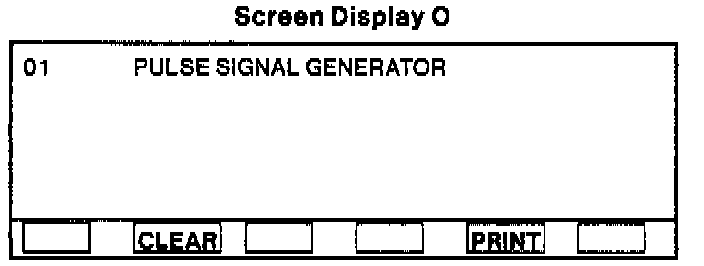

1. In the Mode Select Screen, highlight DIAGNOSTIC TEST MODE RESULTS and press TRIGGER. Screen Display 0 will appear.

2. When DIAGNOSTIC TEST MODE RESULTS is selected, a Diagnostic Trouble Code (DTC) and the name of the corresponding failed component is displayed.
