Module Identification

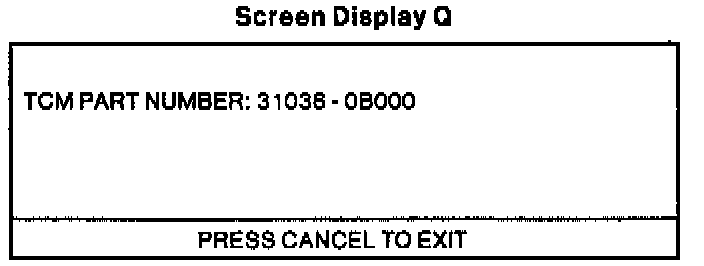

1. In the Mode Select Screen, highlight MODULE IDENTIFICATION and press TRIGGER. Screen Display Q will appear.

2. MODULE IDENTIFICATION displays the Transaxle Control Module (TCM) part number.

Press CANCEL to exit.
