Notes

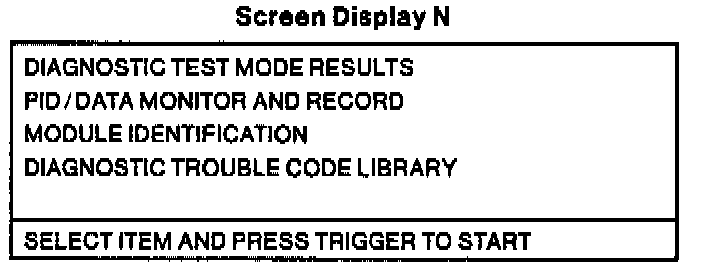

From the Main Menu, select DIAGNOSTIC DATA LINK, and then select TOM - TRANSAXLE CTRL MODULE from the sub~menu. Transaxle test procedure descriptions follow, starting with Screen Display N, the TCM Mode Select Screen.

Screen Display N displays the diagnostic tests available on the automatic transaxle (TCM). Follow the same logic used in the PCM functions to view each function displayed on this screen, and to see what options are available in each function.
