Mode Select

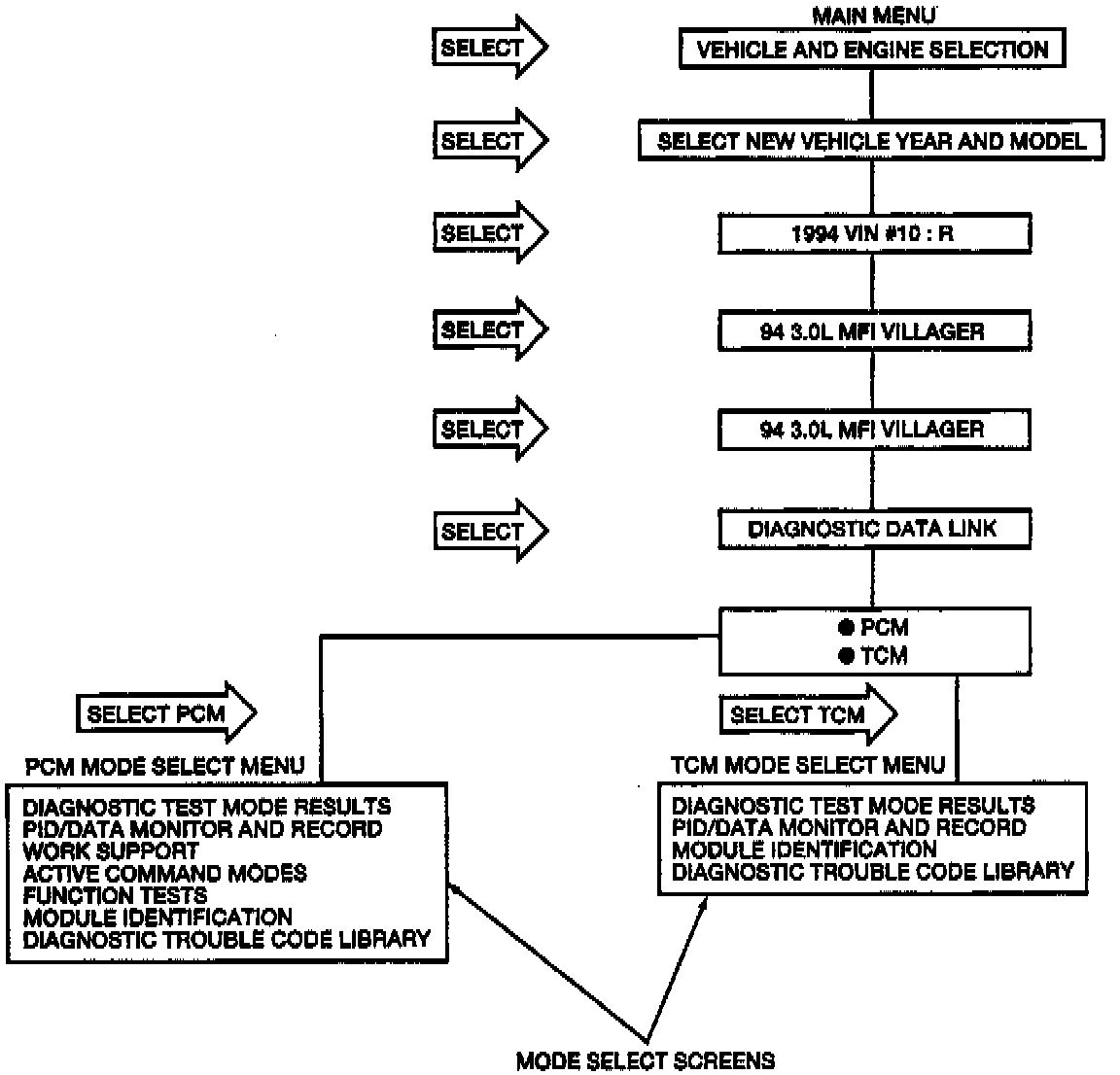

Scan Tool Operation Flow Chart:

NOTE: SELECT means highlight the indicated item on the NGS screen using the menu dial and press TRIGGER.

The Mode Select screens are the menus from which the various test modes can be selected. Technicians will return to this screen when completed with a test, and from it they can choose new tests.

Once the desired test mode is selected, it can be completed as per the instructions in the following descriptions.
