Engine Controls

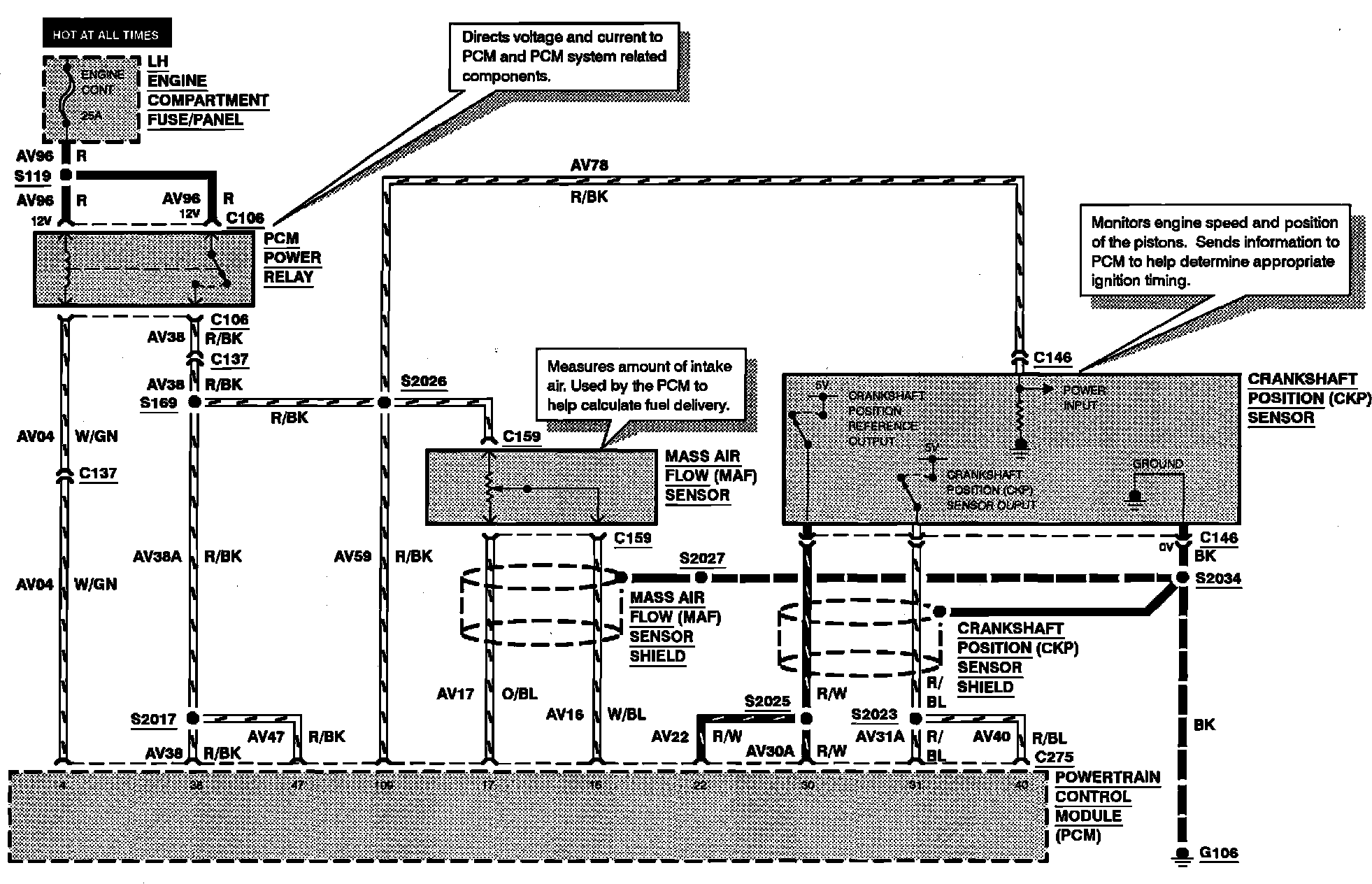

Electronic Engine Control:

CRANKSHAFT POSITION (CKP) SENSOR
MASS AIR FLOW SENSOR
PCM POWER RELAY

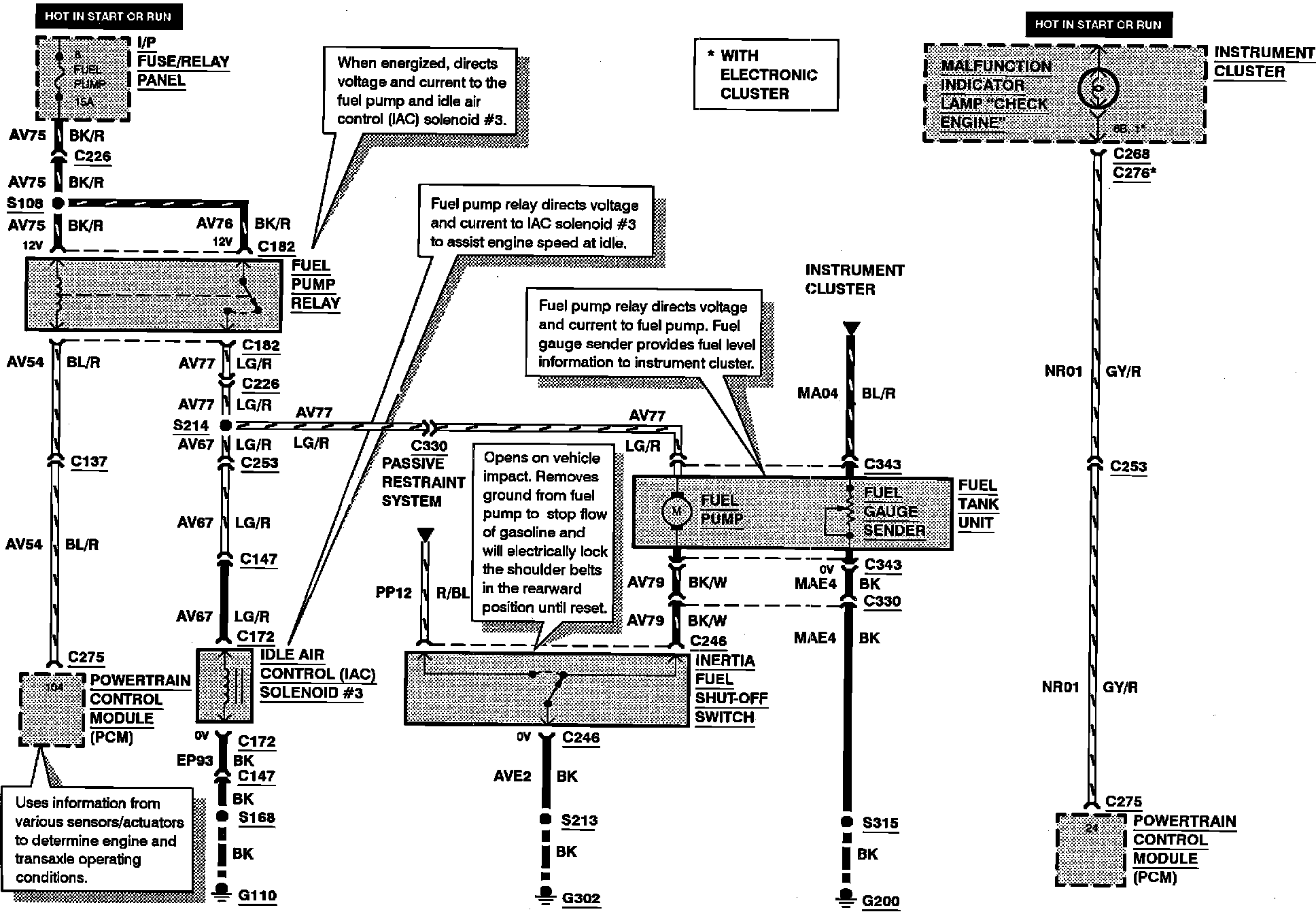

Electronic Engine Control:

FUEL PUMP RELAY
FUEL TANK UNIT
IDLE AIR CONTROL (IAC) SOLENOID #3
INERTIA FUEL SHUT-OFF SWITCH

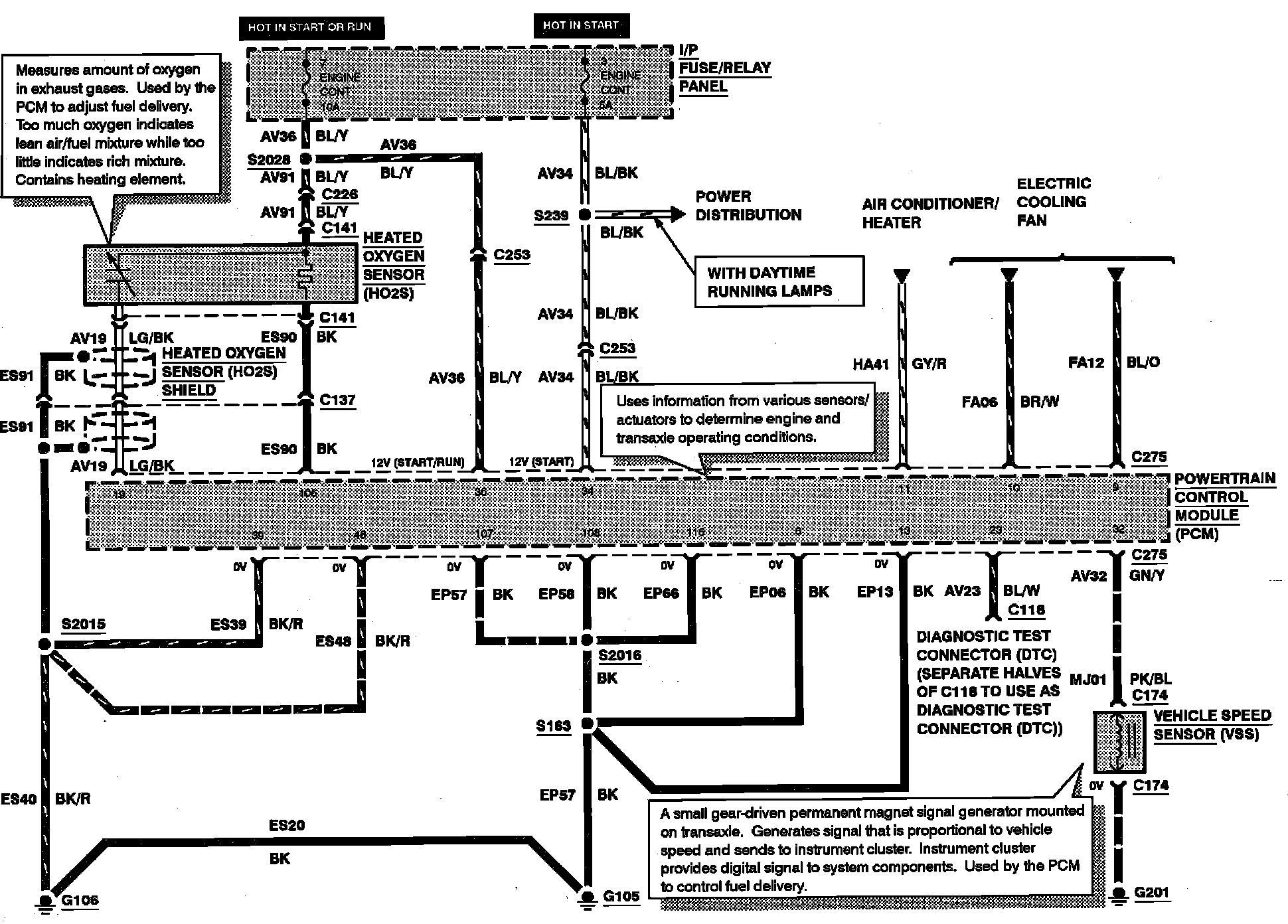

Electronic Engine Control:

HEATED OXYGEN SENSOR (HO2S)
VEHICLE SPEED SENSOR

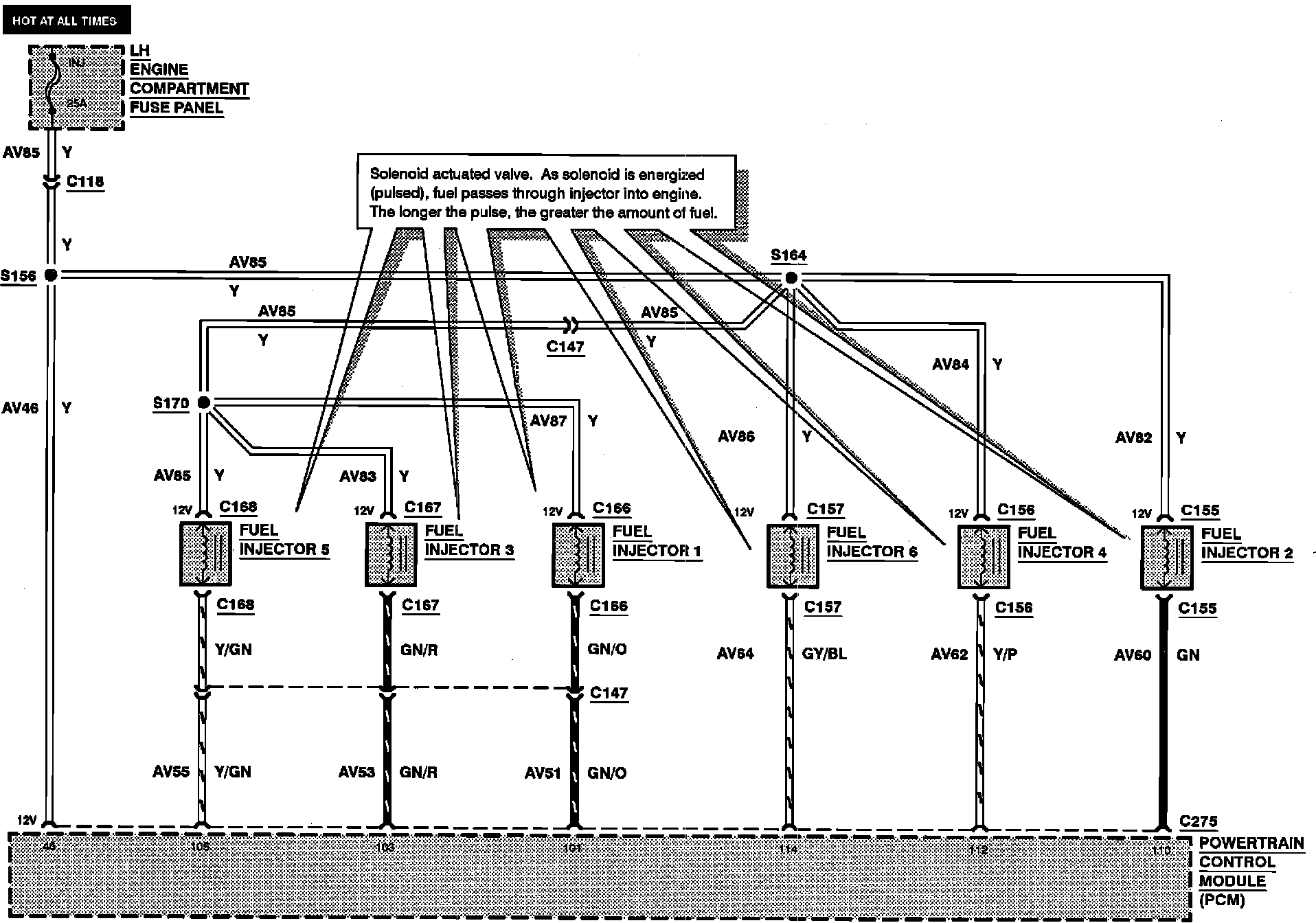

Electronic Engine Control:

FUEL INJECTOR #1
FUEL INJECTOR #2
FUEL INJECTOR #3
FUEL INJECTOR #4
FUEL INJECTOR #5
FUEL INJECTOR #6

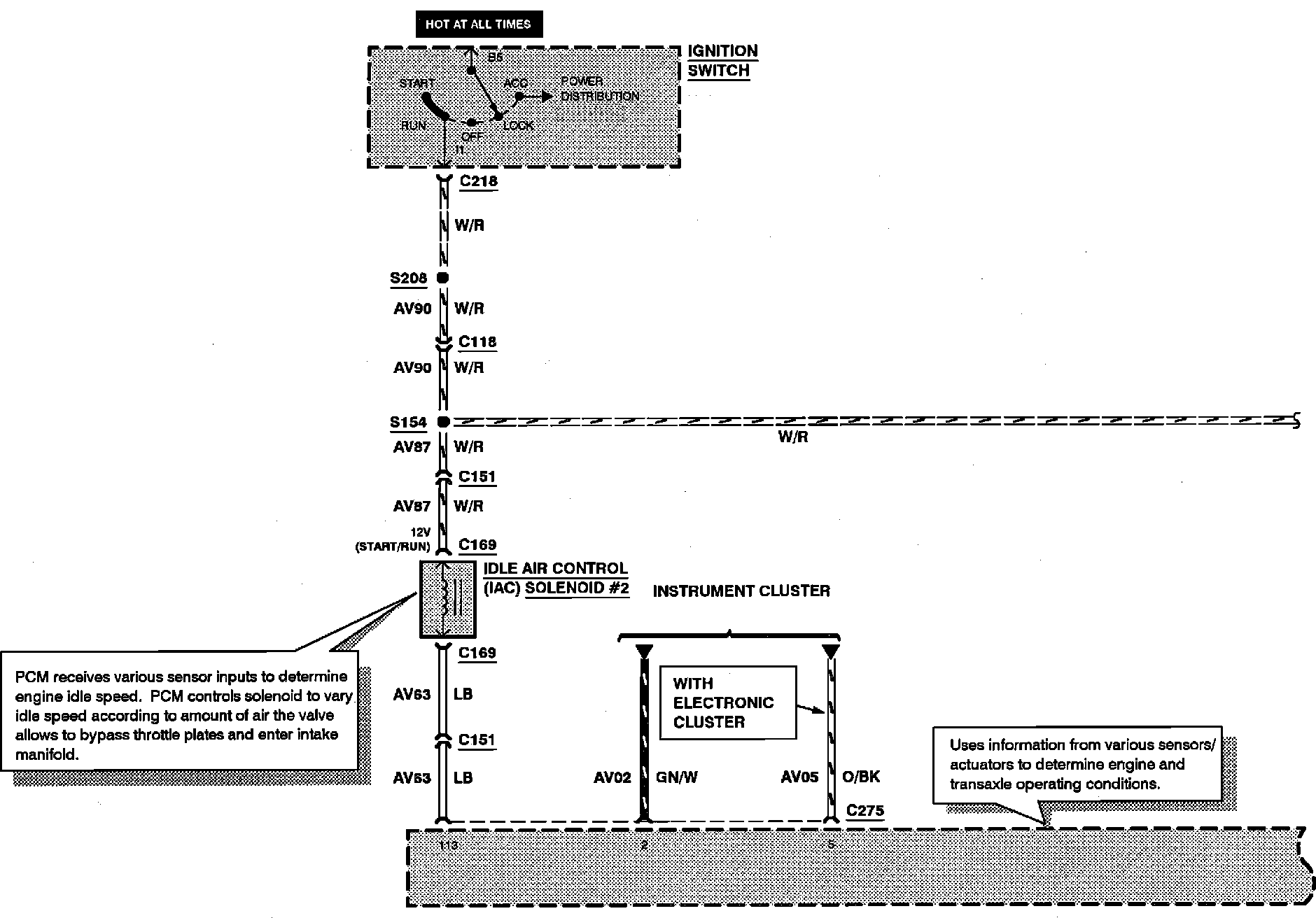

Electronic Engine Control:

IDLE AIR CONTROL (IAC) SOLENOID #2

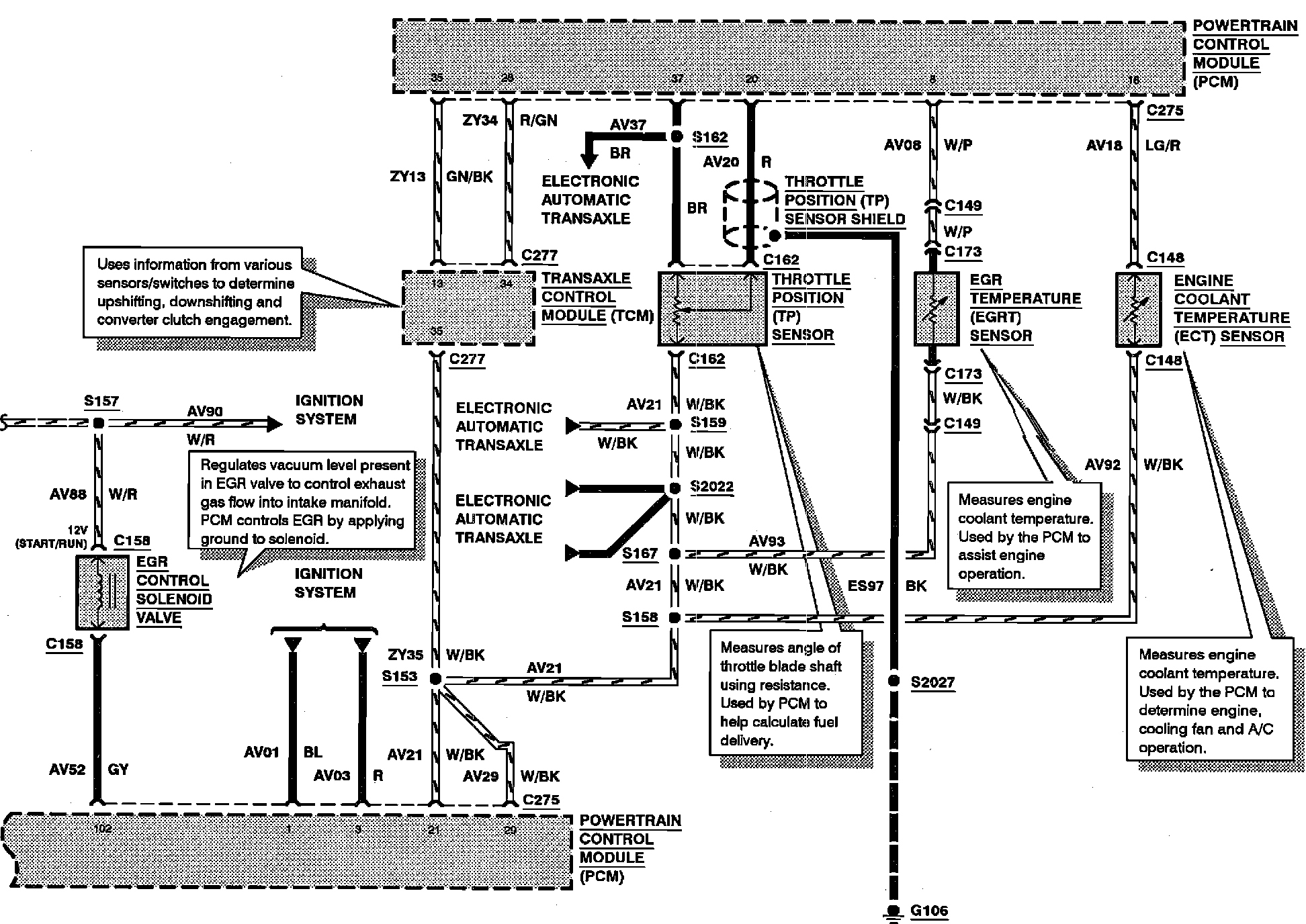

Electronic Engine Control:

EGR CONTROL SOLENOID VALVE
EGR COOLANT TEMPERATURE (ECT) SENSOR
EGR TEMPERATURE (EGRT) SENSOR
THROTTLE POSITION (TP) SENSOR

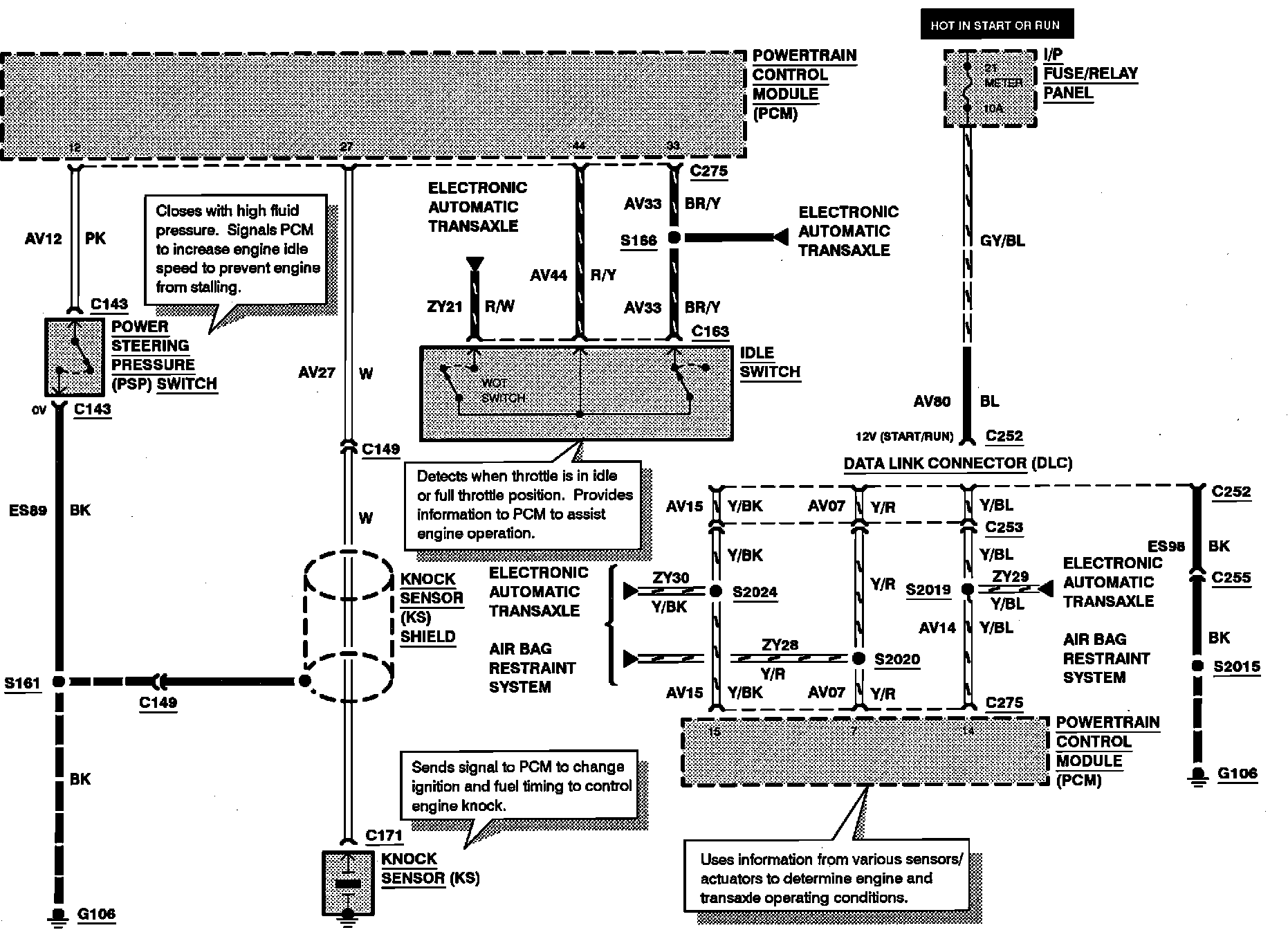

Electronic Engine Control:

IDLE SWITCH
KNOCK SENSOR
POWER STEERING PRESSURE SWITCH

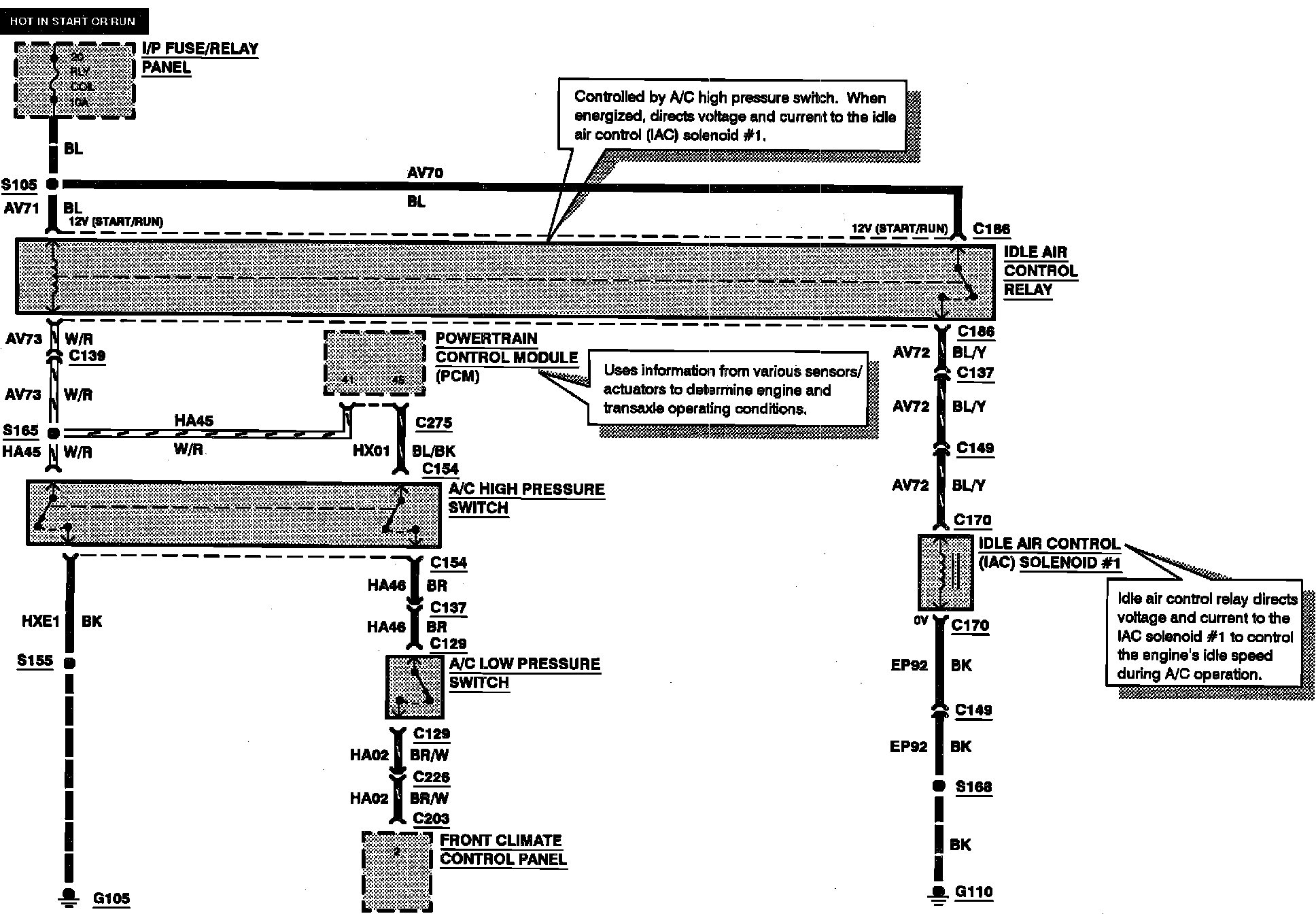

Electronic Engine Control:

A/C HIGH PRESSURE SWITCH
A/C LOW PRESSURE SWITCH
IDLE AIR CONTROL RELAY
IDLE AIR CONTROL (IAC) SOLENOID #1
