Cruise Control Switch: Testing and Inspection

Speed Control Switch Assembly Voltage Specifactions.:

1. Turn key off, then access speed control switch assembly connector. Do not disconnect.

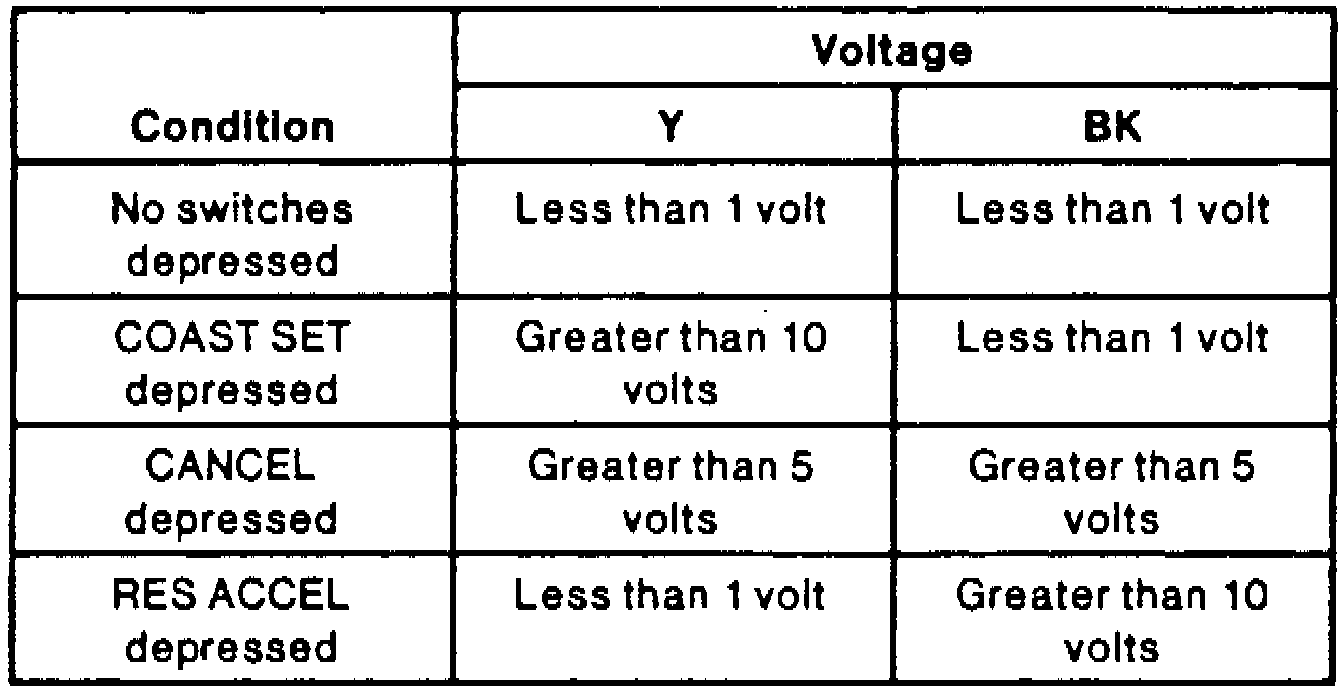

2. Measure voltage on "Y" and "BK"wire terminals at speed control switch assembly during specified conditions according to chart.
3. If speed control switch assembly is not as specified according to chart, replace switch assembly. If switch assembly is as specified, return to diagnostic tests.
