EGR Control Test






EGR CONTROL TEST - (KOEO)

Description: NGS Tester cycles Exhaust Gas Recirculation Control (EGRO) solenoid on and off in three second intervals.

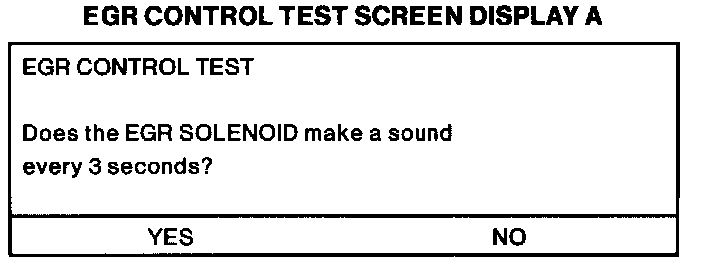

Result: NGS Tester prompts the technician to verify solenoid operation by sound.
