Idle Position Test

FUNCTION TESTS Descriptions

Descriptions and screens of each available function test follow. Next to the test title is an indication of whether it is a Key ON Engine Off (KOEO) test or a Key ON Engine Running (KOER) test.






Pressing TRIGGER after each single test has finished will return the technician to Screen Display L, the single test selection list






IDLE POSITION TEST - (KOEO)

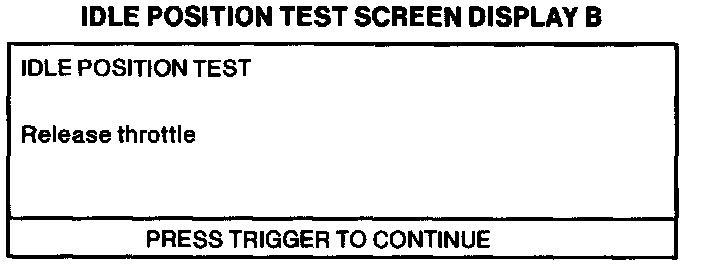

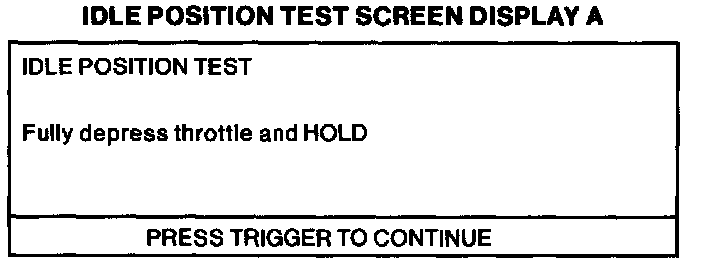

Description: Test the Idle Switch (IDL) at closed throttle and open throttle.

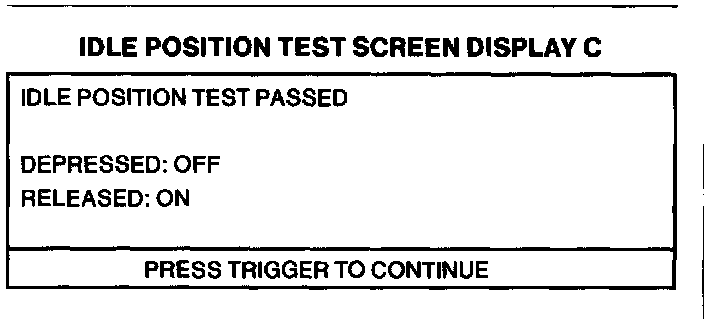

Results: Test passes if switch is off during open throttle or on during closed throttle.
