Neutral Switch Position Test






NEUTRAL SWITCH POSITION TEST - (KOEO)


Description: NGS Tester tests the Park / Neutral Position Signal (PNPS) in two positions.

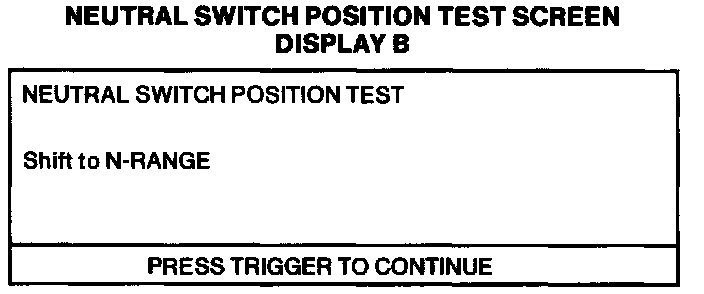

1. Switch IN park/neutral.

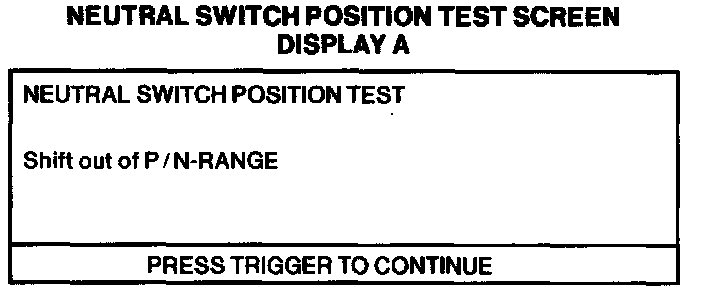

2. Switch OUT of park/neutral.

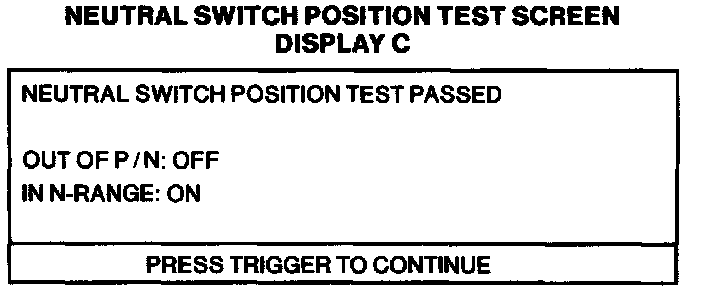

Results: Test fails if switch is OFF when in park/neutral or ON when out of park/neutral.
