Throttle Position Sensor Test






THROTTLE POSITION SENSOR TEST - (KOEO)

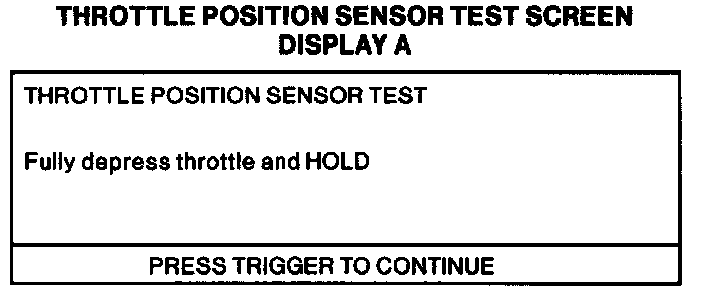

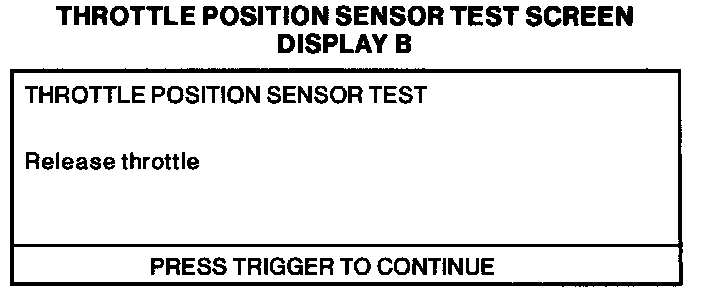

Description: NGS Tester tests the Throttle Position (TP) sensor at closed throttle and wide open throttle.

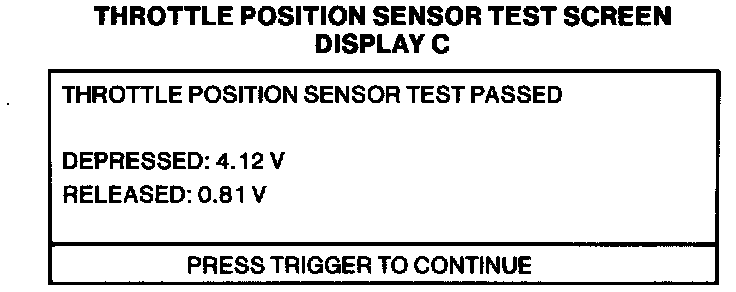

Results: Test fails when the difference between the readings is less than 3 volts.
