Power Steering Switch Test








POWER STEERING SWITCH TEST - (KOER)

Description: NGS Tester tests Power Steering Pressure (PSP) switch in two positions:

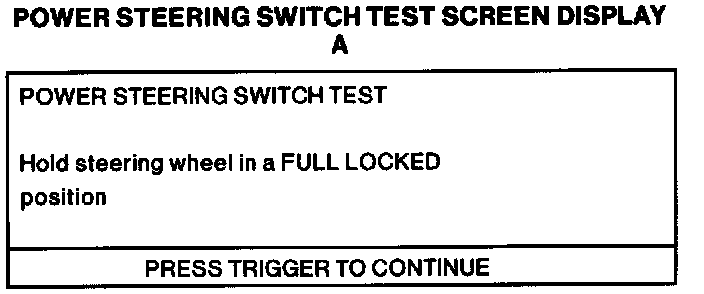

1. Full locked

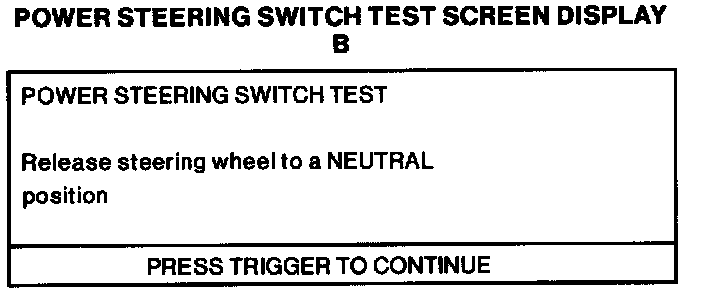

2. Neutral (released)

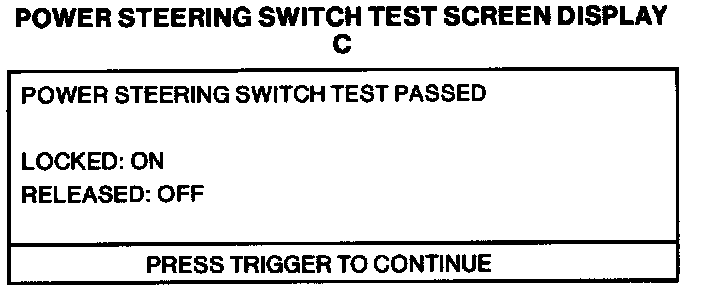

Results: Test fails if switch is OFF in full locked position or ON in neutral (released position).
