Non-Module Communication Wire Repair

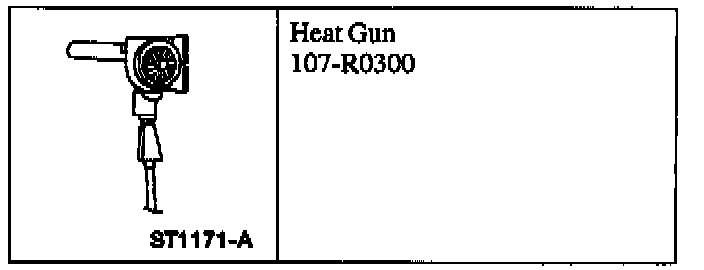

Special Tool
1.
Strip both ends of the broken wire.

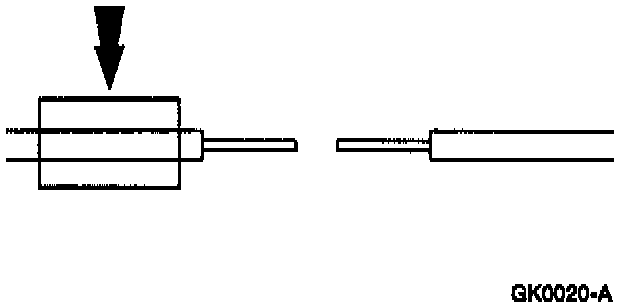

2.
Install the shrink wrap.

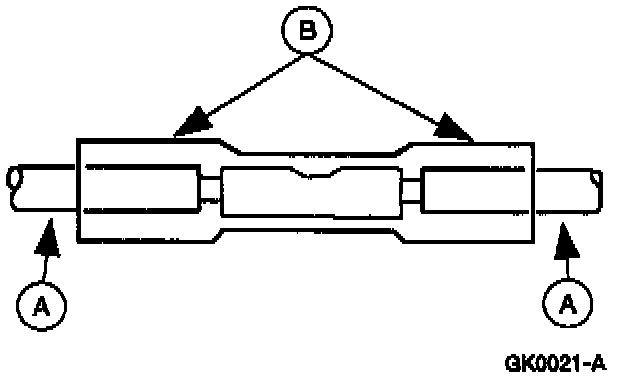

3.
Install the (A) wires into each end of the (B) barrel connector.

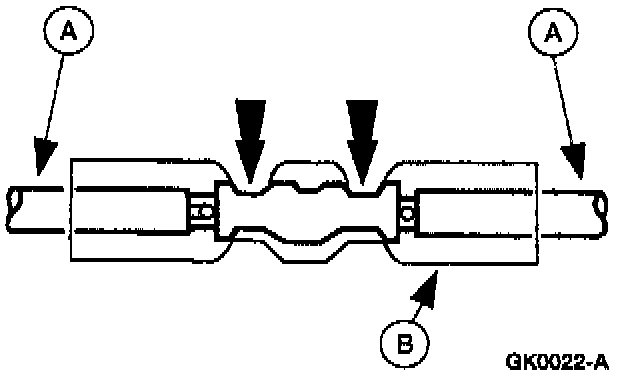

4.
Crimp the (A) wires in the (B) barrel connection.

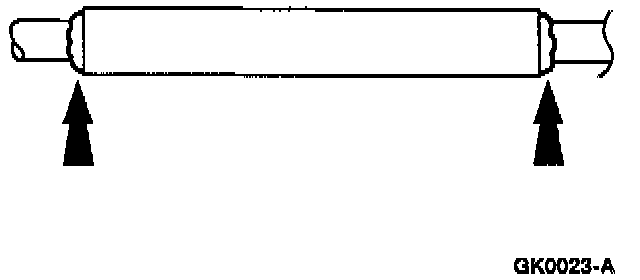

5.
Position the shrink wrap over the barrel connector and use Heat Gun 107-R0300 or equivalent to heat the barrel connector until wax comes out both ends.
