Oil Filter: Service and Repair

REMOVAL
1. Raise vehicle on hoist.
2. Position oil drain pan under oil bypass filter.

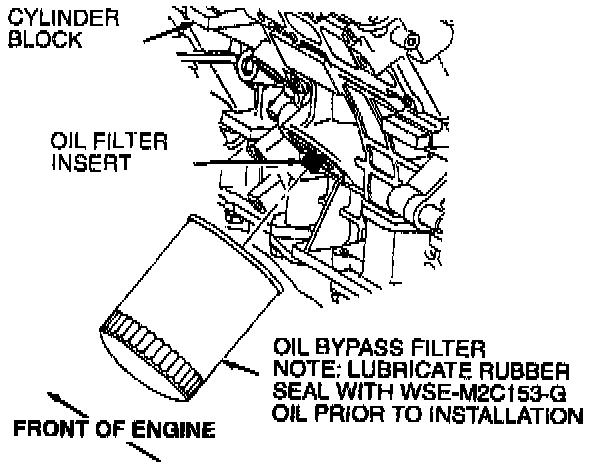

3. Unscrew oil bypass filter from insert in cylinder block using an oil filter wrench.





4. Clean the oil bypass filter sealing surface on cylinder block with a clean cloth. If scraping is required, use only a plastic-tipped scraper to prevent damaging the aluminum sealing surfaces.

INSTALLATION
1. Lubricate rubber seal of oil bypass filter with engine oil meeting Ford specification ESE-M2C153-F.
2. Install oil bypass filter on insert until rubber seal contacts sealing surface of cylinder block.
3. Tighten oil bypass filter an additional three-quarter turn after seal contacts.
4. Lower vehicle.
5. Check engine oil level and add engine oil X0-5W30-QSP or DSP meeting Ford specification ESE-M2C153-G as required to bring to proper level.
6. Run engine and check for oil leaks.
