Resistance/Continuity Tests- TR Sensor
TR Sensor Terminal Location:
1.
Measure the resistance between the Transmission Range
(TR) sensor terminals as indicated in the following chart:

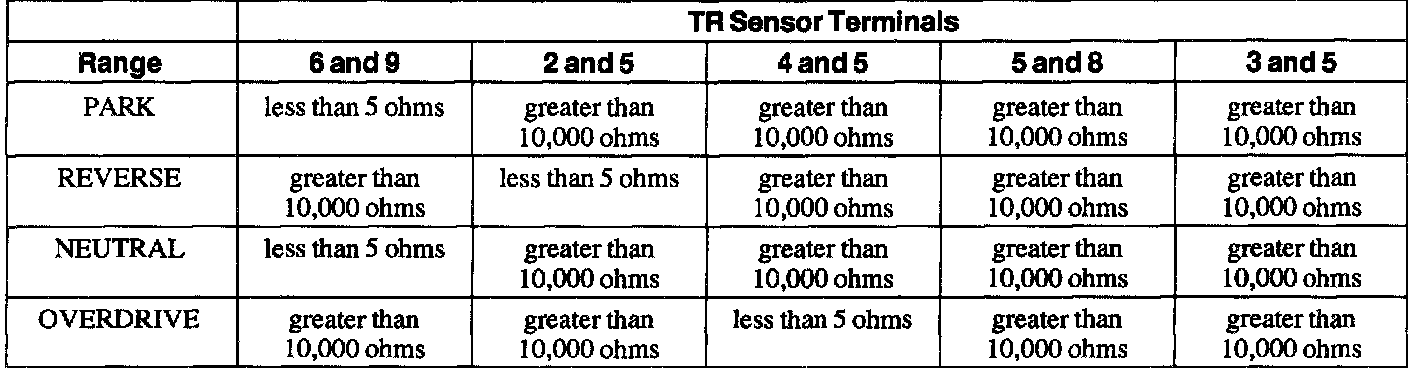

TR Sensor Resistance Table:

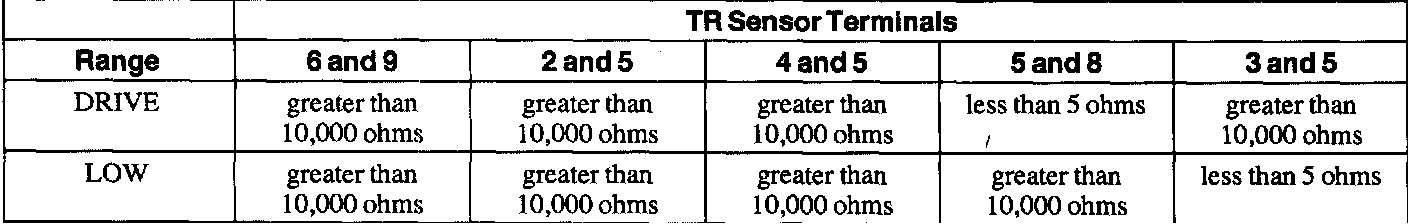

TR Sensor Resistance Table (Part 2 Of 2):
2.
If any resistance is not as specified, replace the TR sensor.
