Single Window Regulator Control-Sedan, Wagon
1.
Key OFF.
2.
Remove and disconnect the single window regulator control switch.
3.

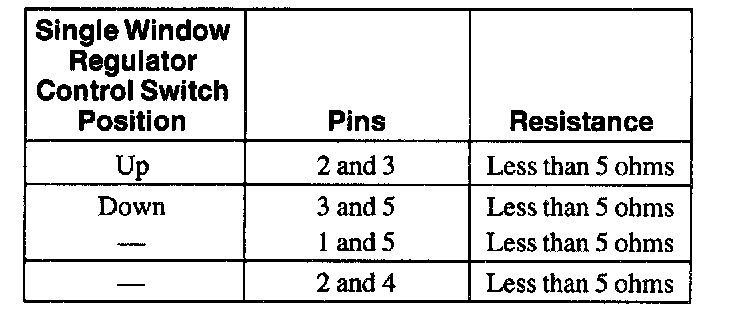

Measure the resistance between the following terminal pins of the single window regulator control switch:
4.
If the single window regulator control switch fails any of these tests, replace it.
