A/C Recirculating Air
REMOVAL 1.
Remove
A/C evaporator housing.
2.

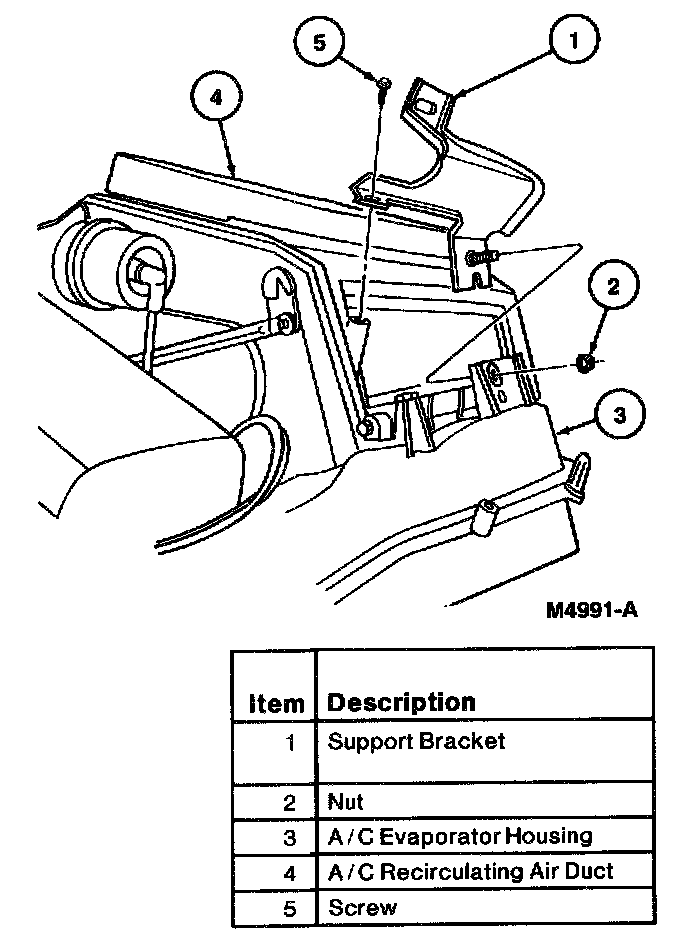

Remove screw, nut and support bracket from
A/C evaporator housing and A/C recirculating air duct.
3.
Disconnect vacuum hose from heater and A/C air inlet duct door
vacuum control motor.
4.
Remove three screws retaining A/C recirculating air duct to
A/C evaporator housing.
INSTALLATION 1.
Follow removal procedure in reverse order.
