Ignition Cable: Service and Repair

Pliers, Connector, Spark Plug:

SPECIAL TOOLS(S)

REMOVAL







1. Remove the engine cover.







2. Disconnect the variable intake system actuator electrical connector.







3. Remove the variable intake system actuator bolts.







4. Position the variable intake system actuator to one side.

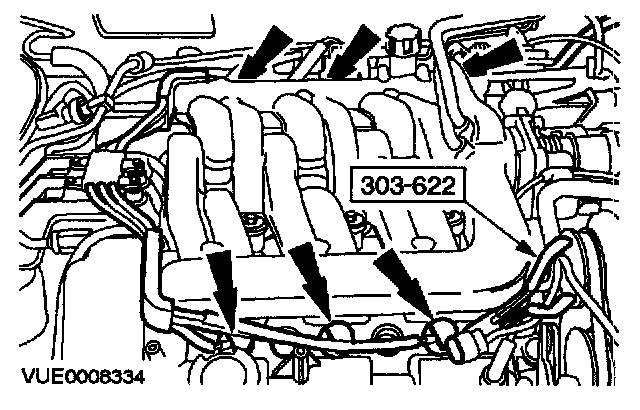

5. Using the special tool, disconnect the six spark plug wires from the spark plugs.

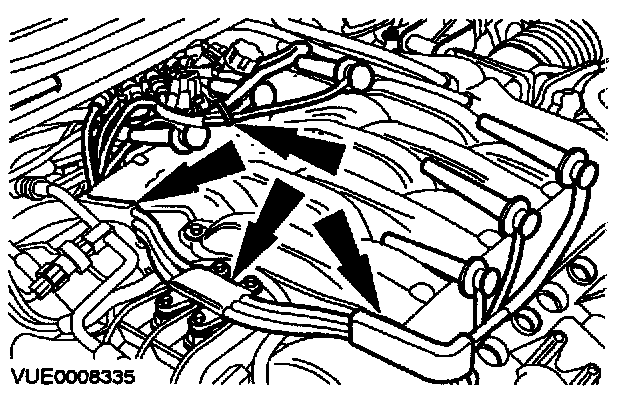

6. Open the spark plug wire separators.







7. Remove the spark plug wires.

INSTALLATION







1. To install, reverse the removal procedure.
