Test J: No SCP Network Communication

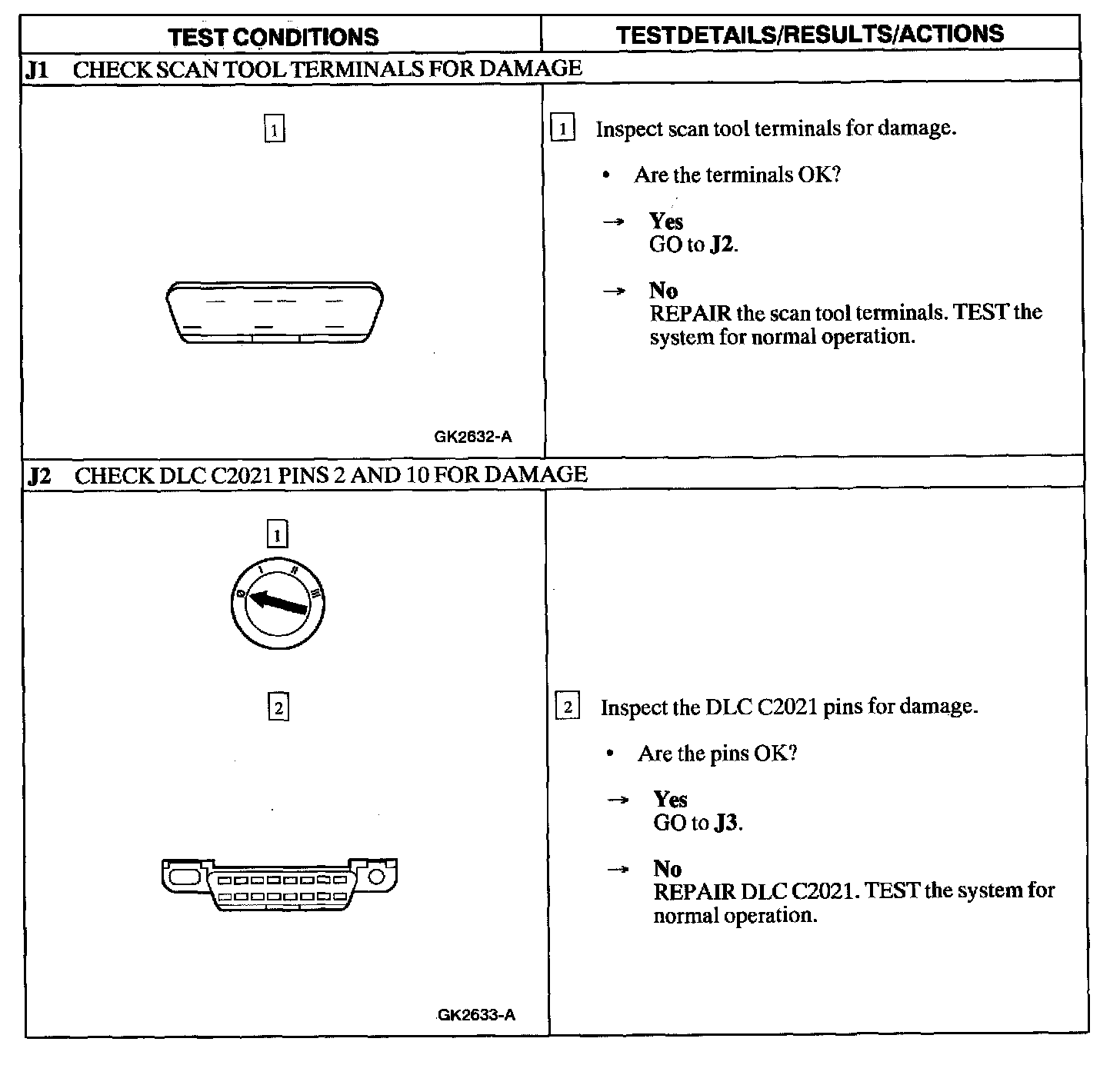

J1 - J2:

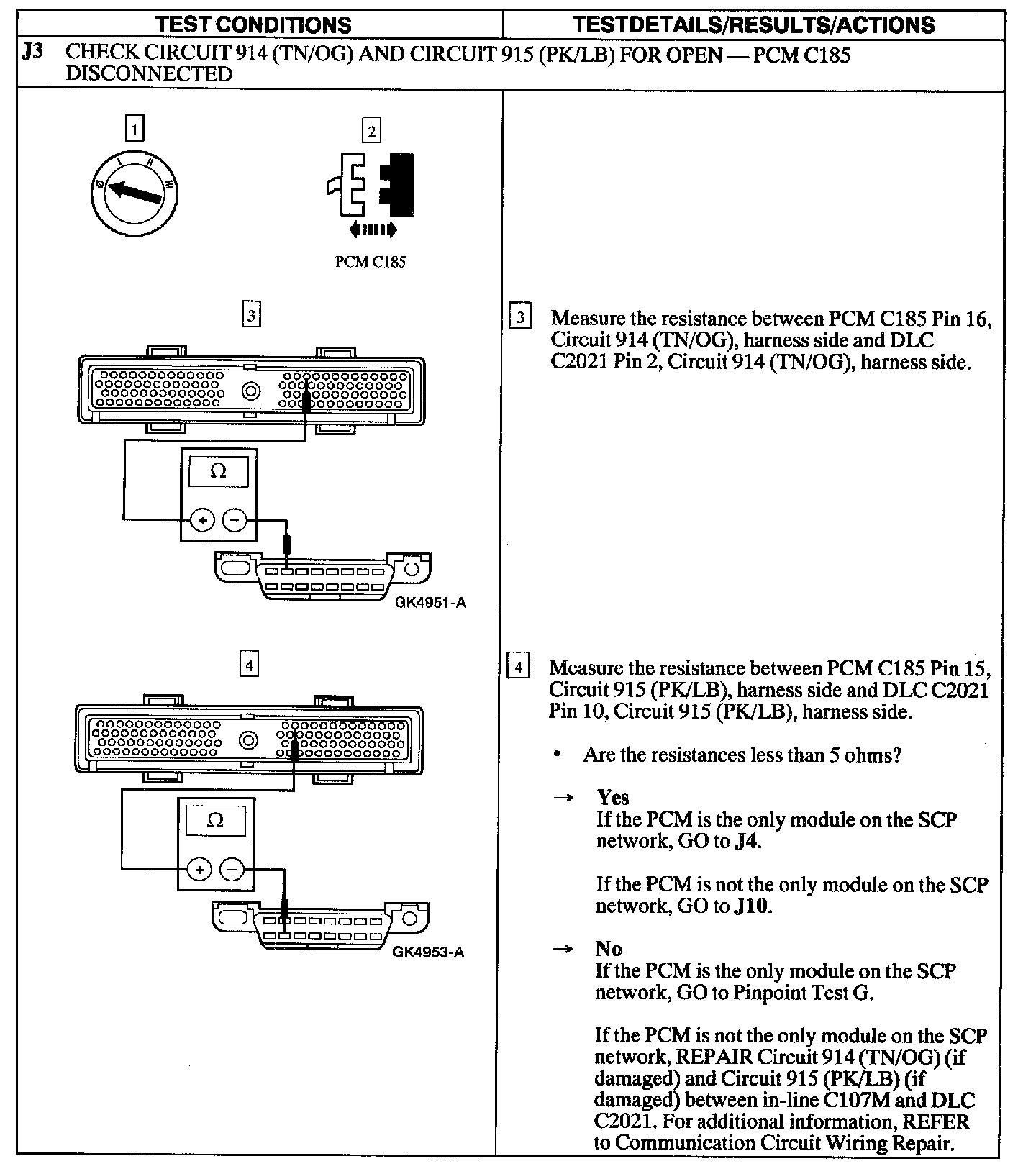

J3:

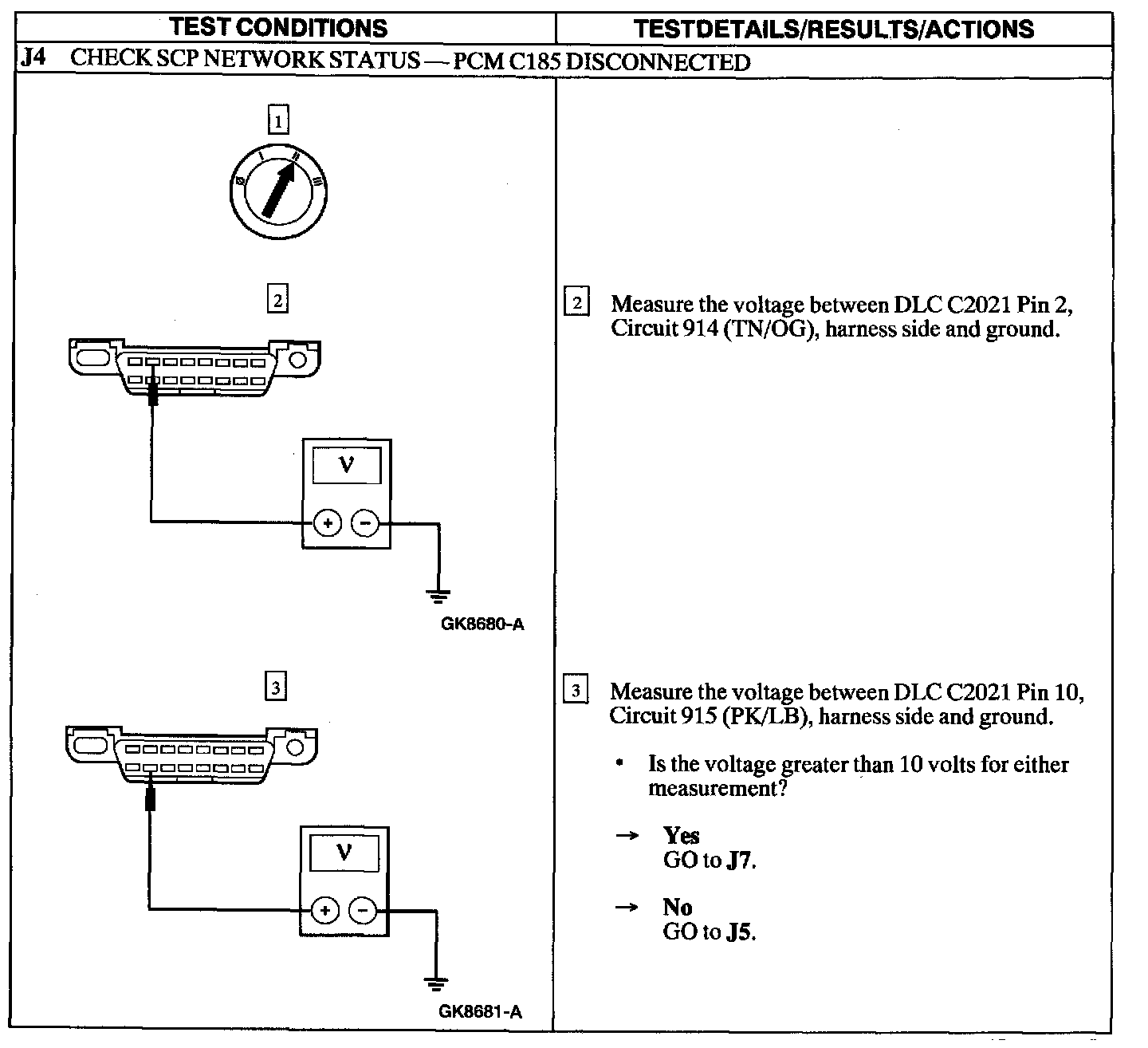

J4:

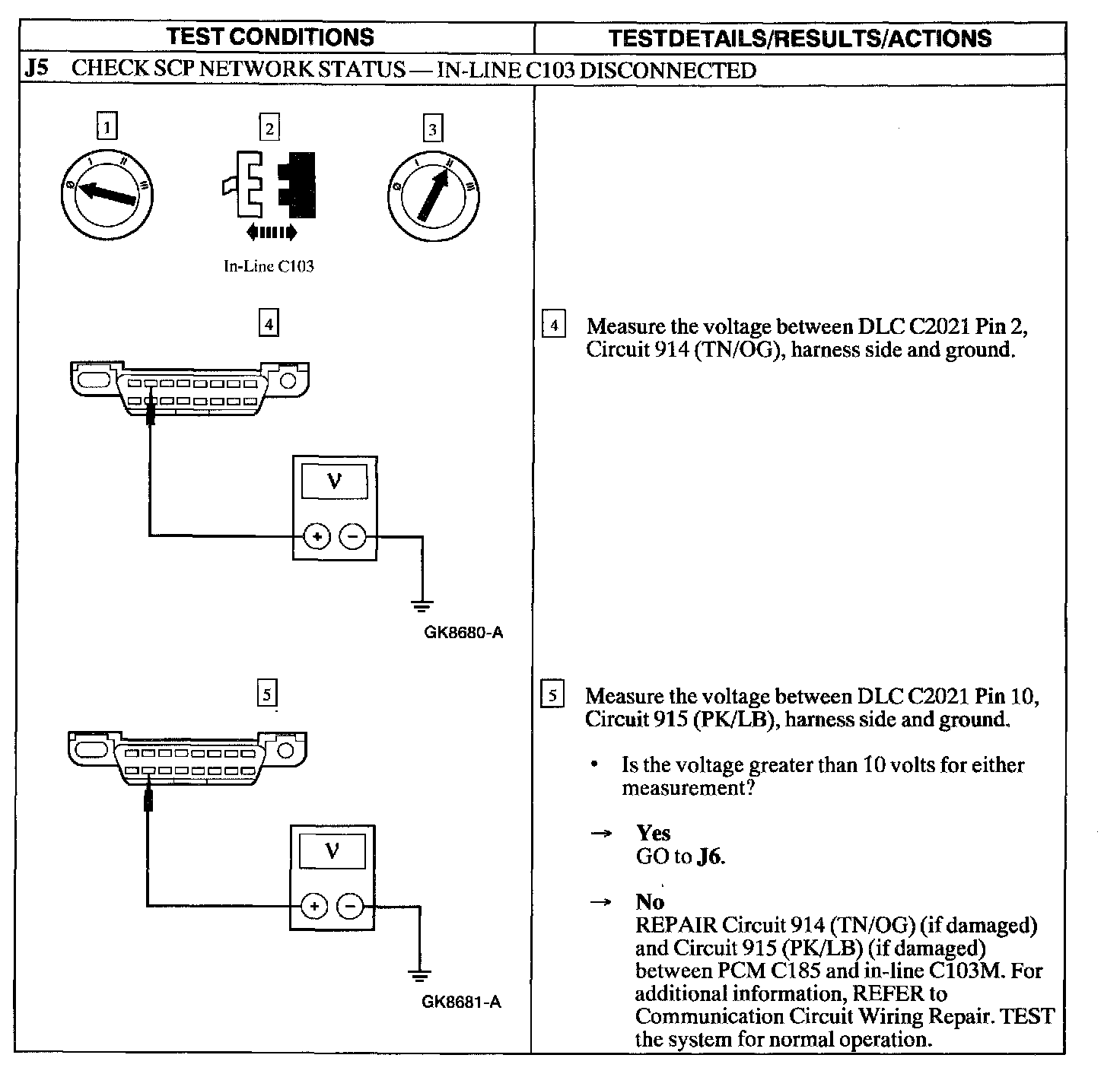

J5:

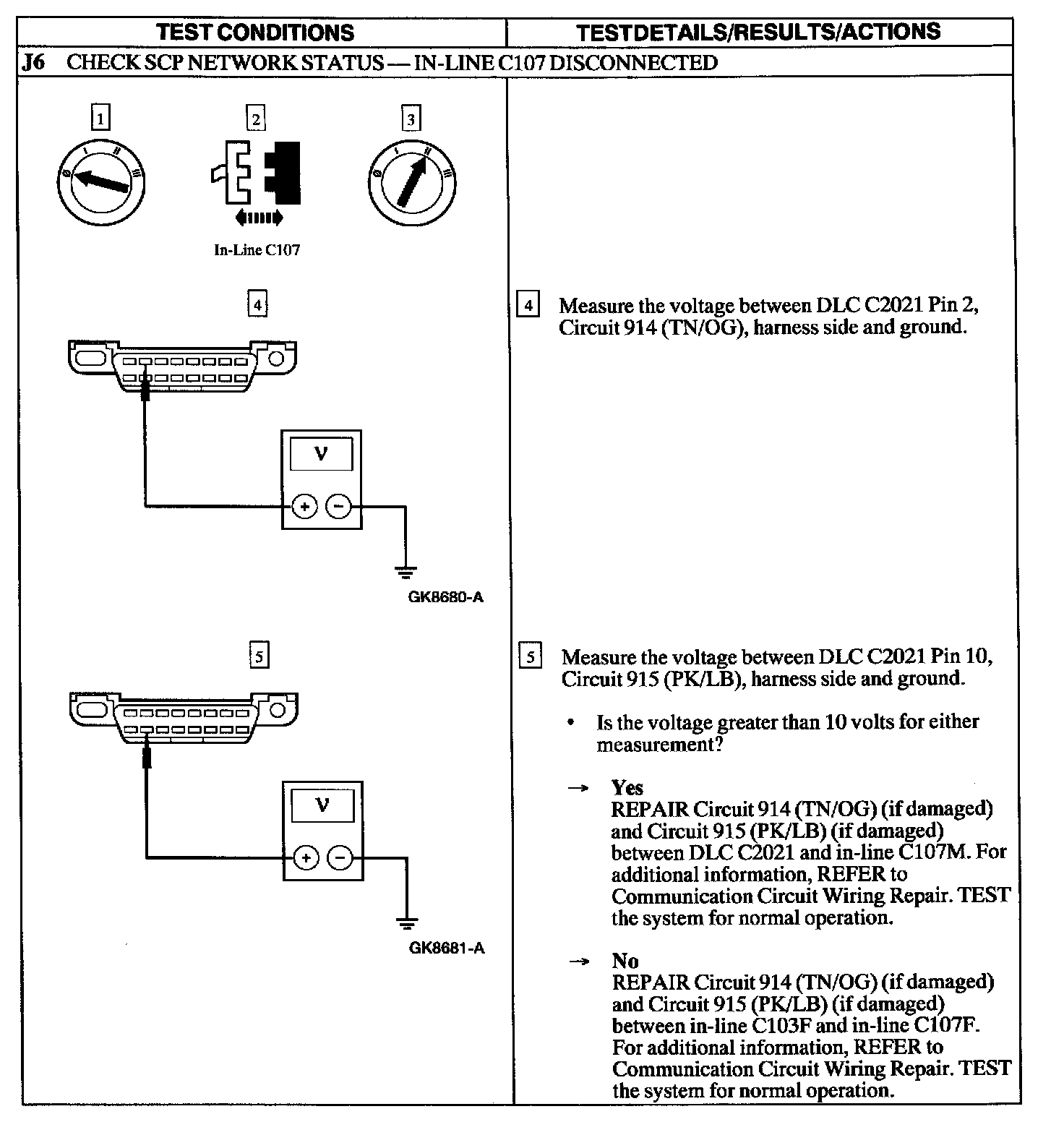

J6:

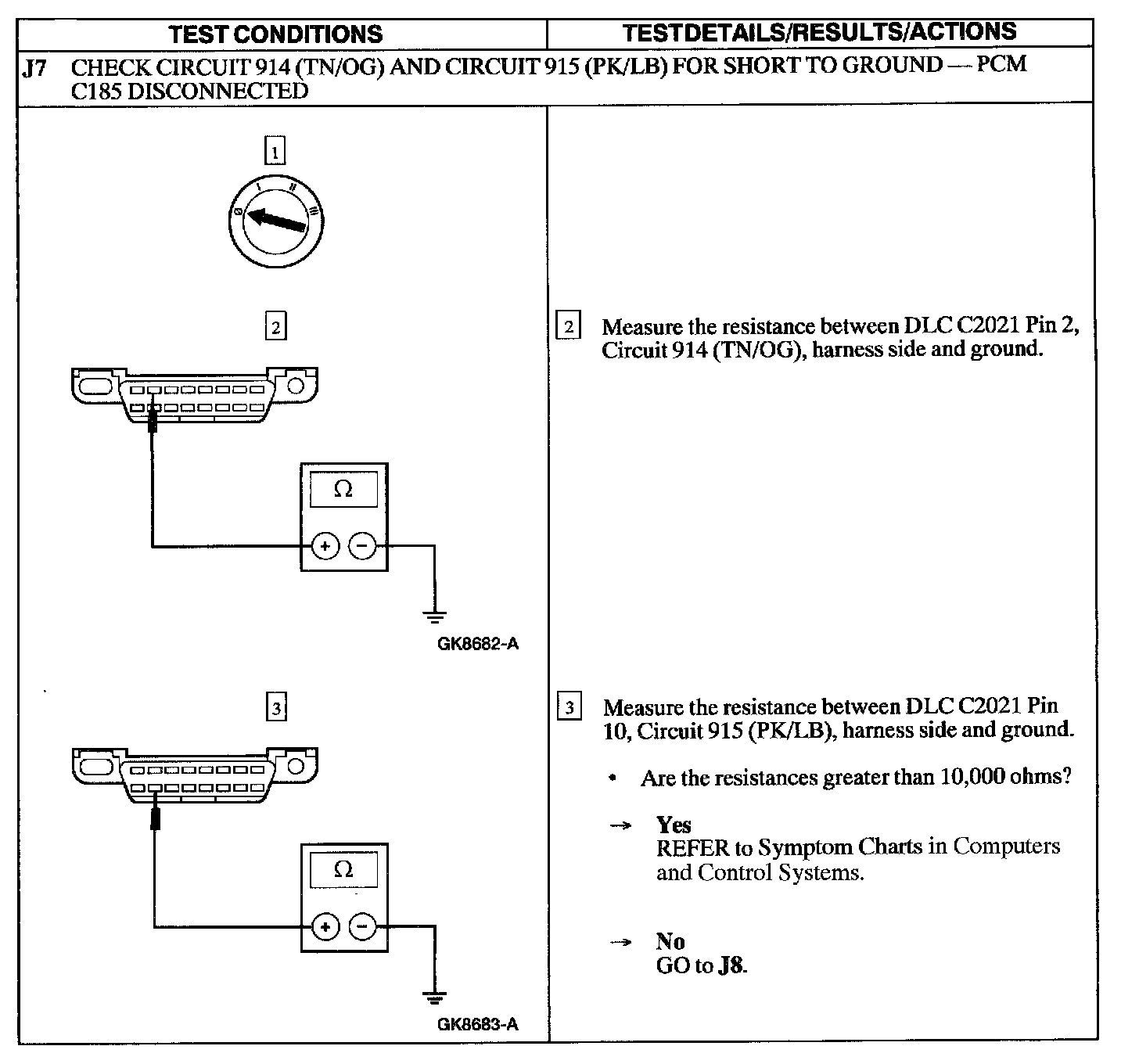

J7:

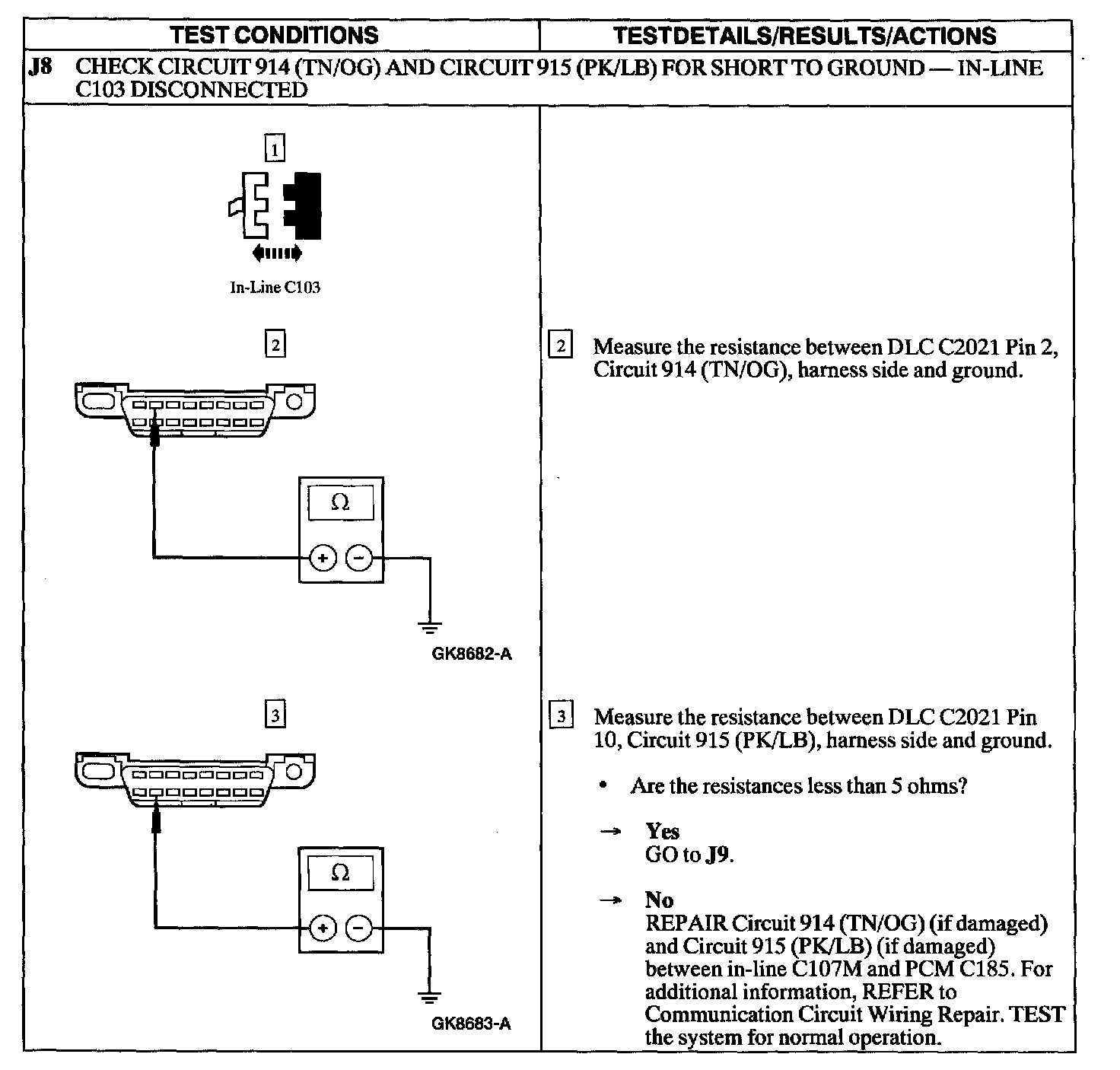

J8:

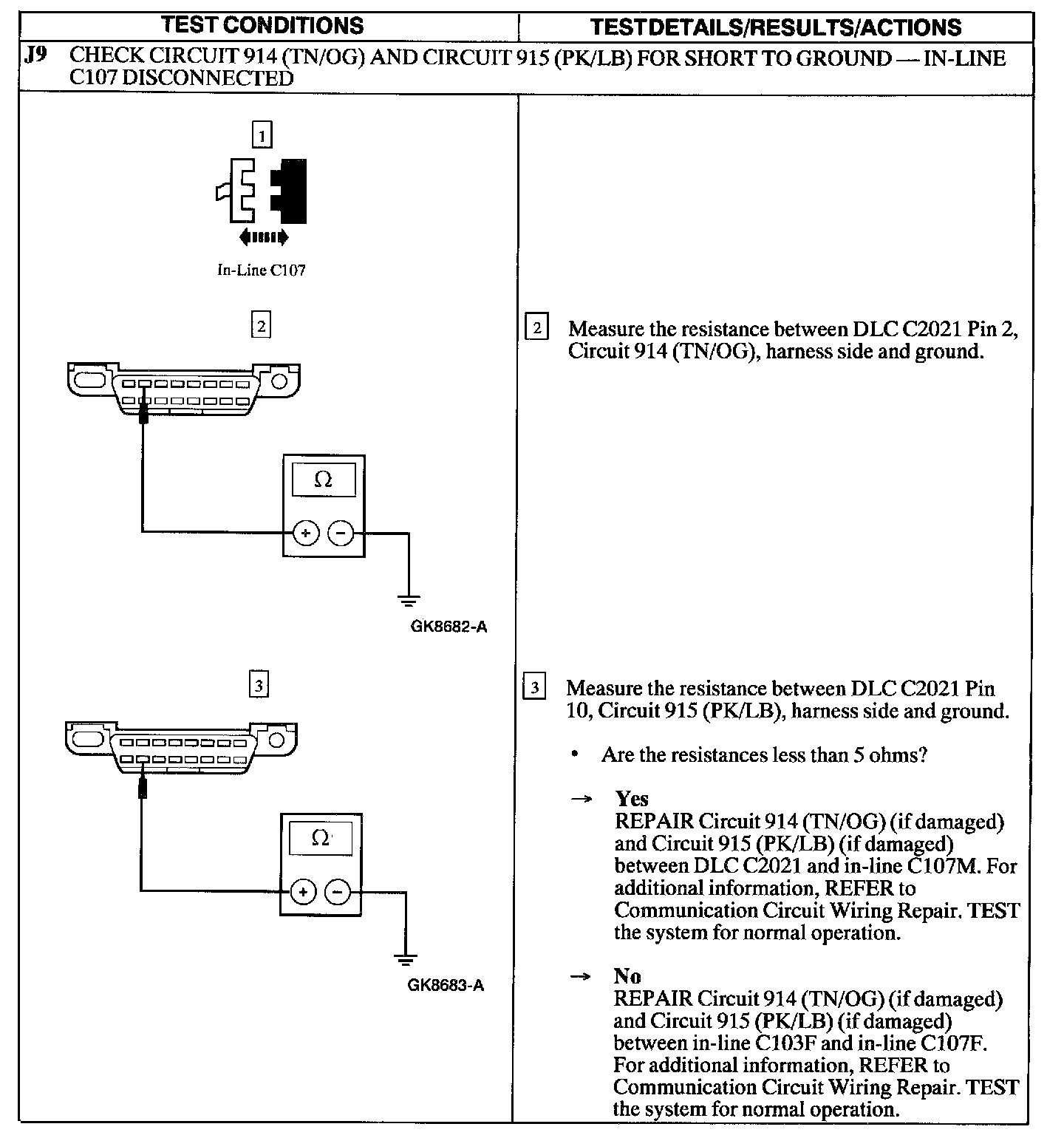

J9:






J10:

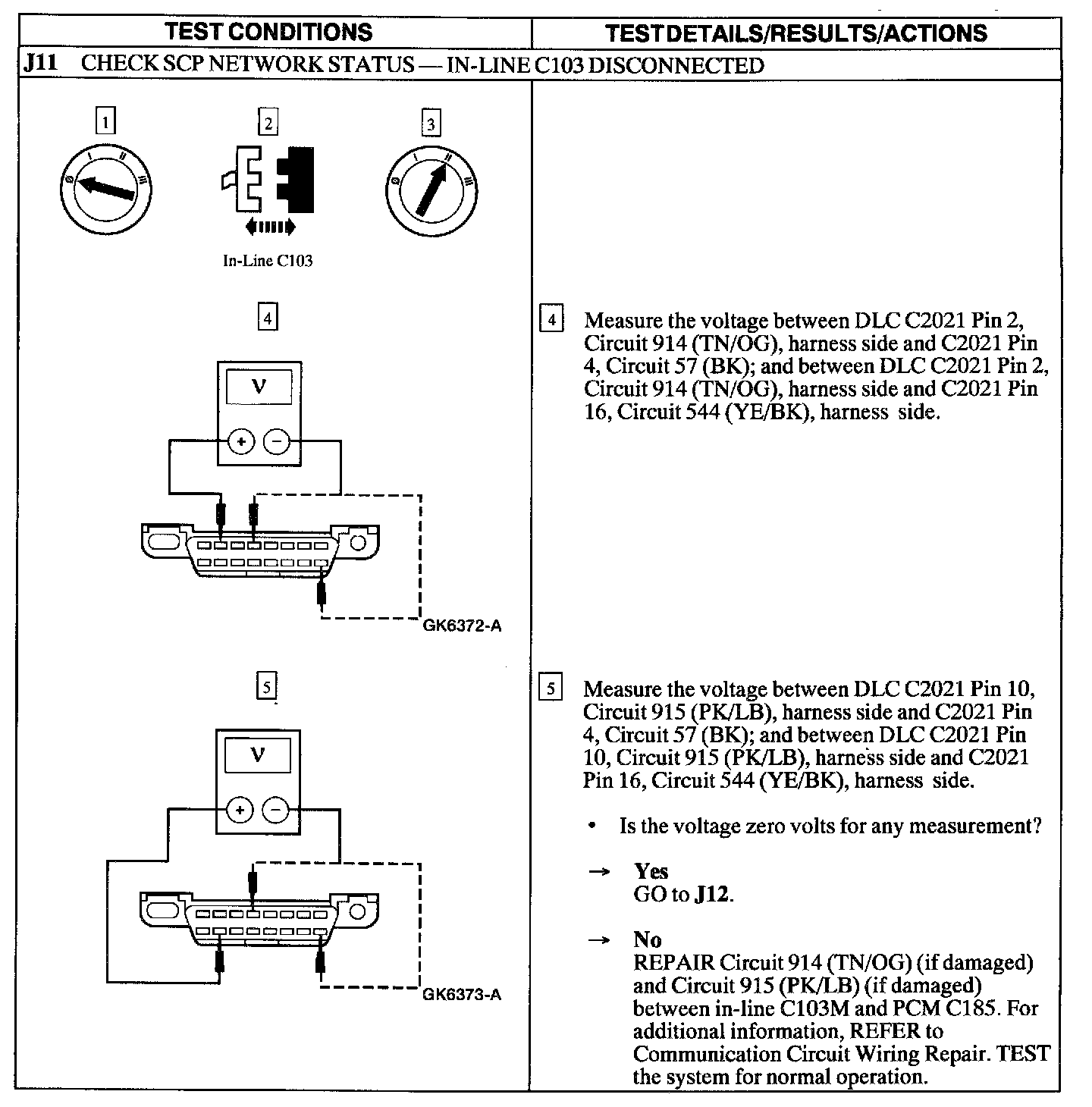

J11:

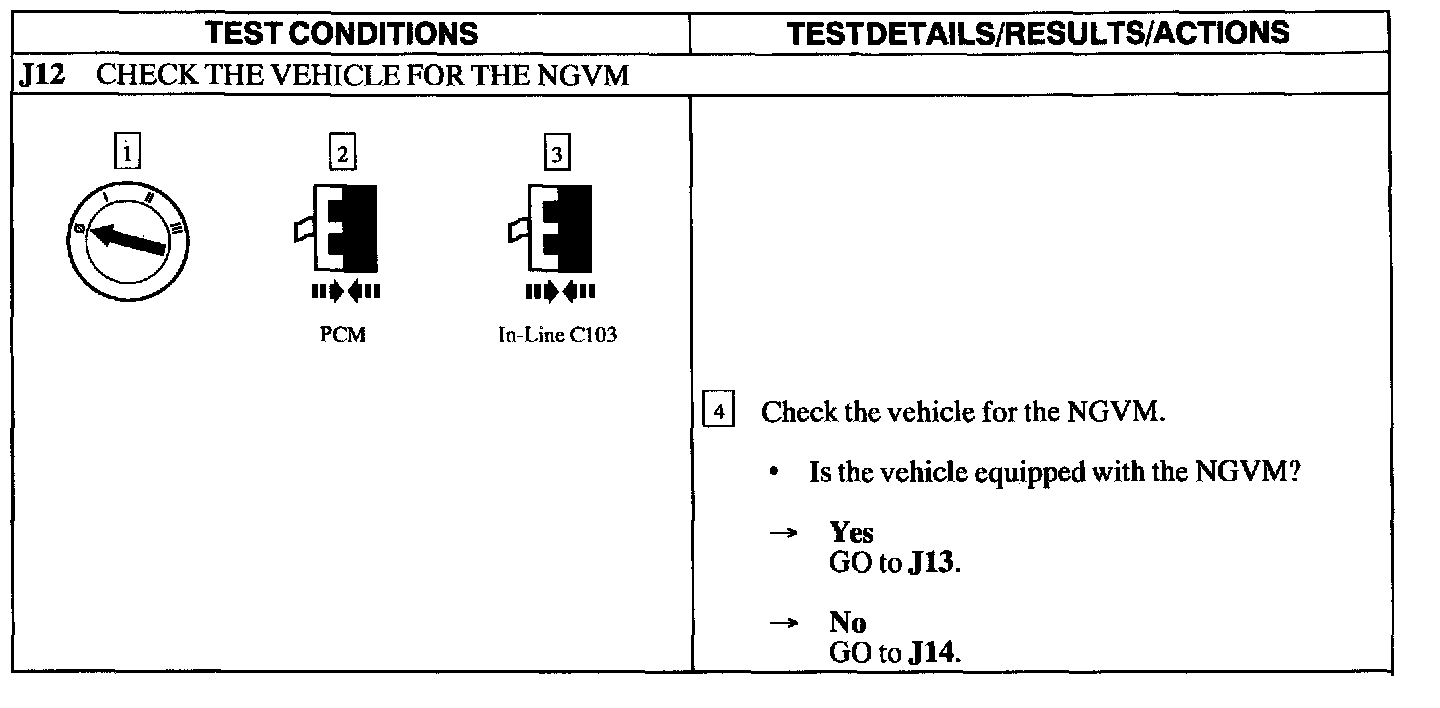

J12:

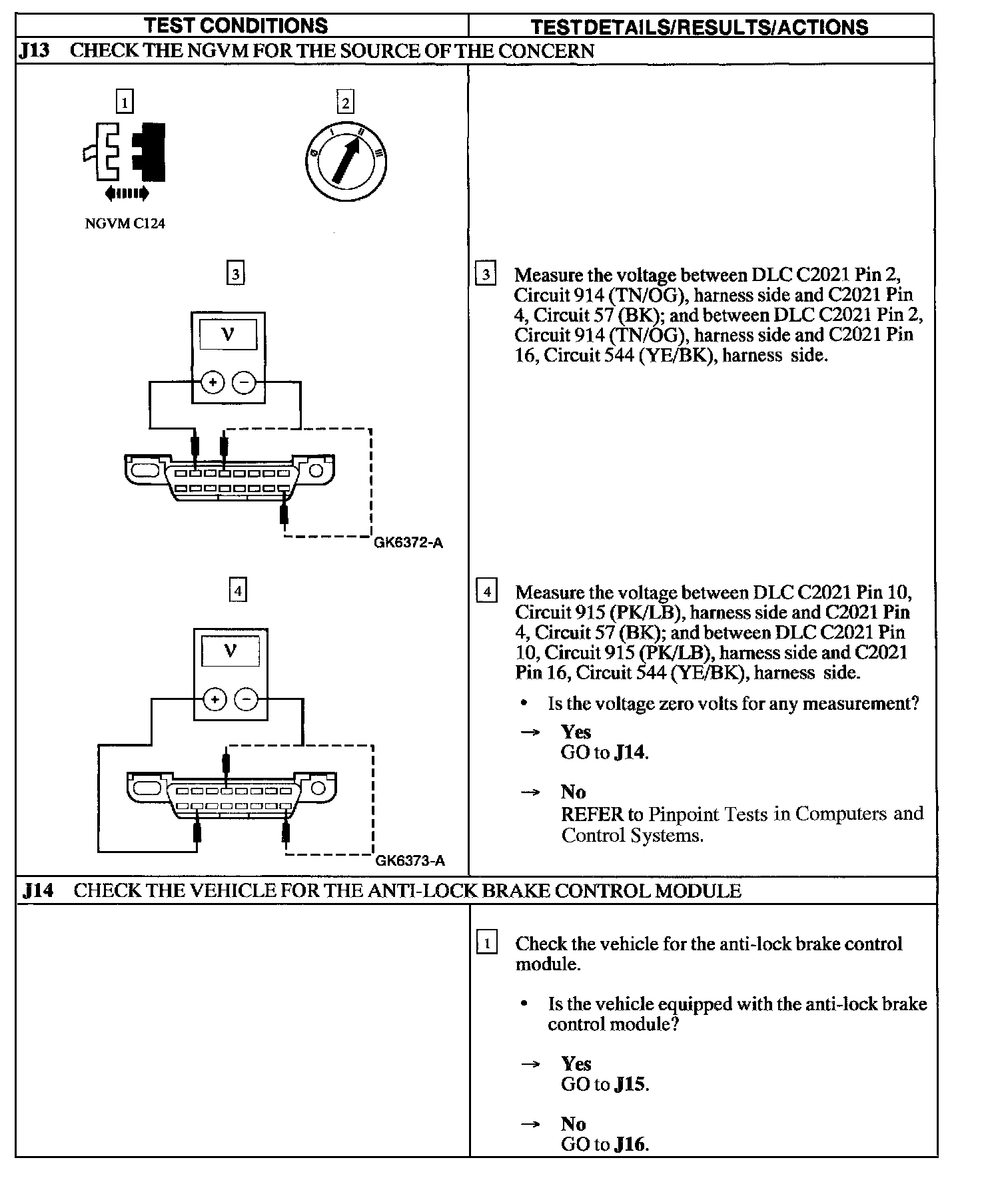

J13 - J14:

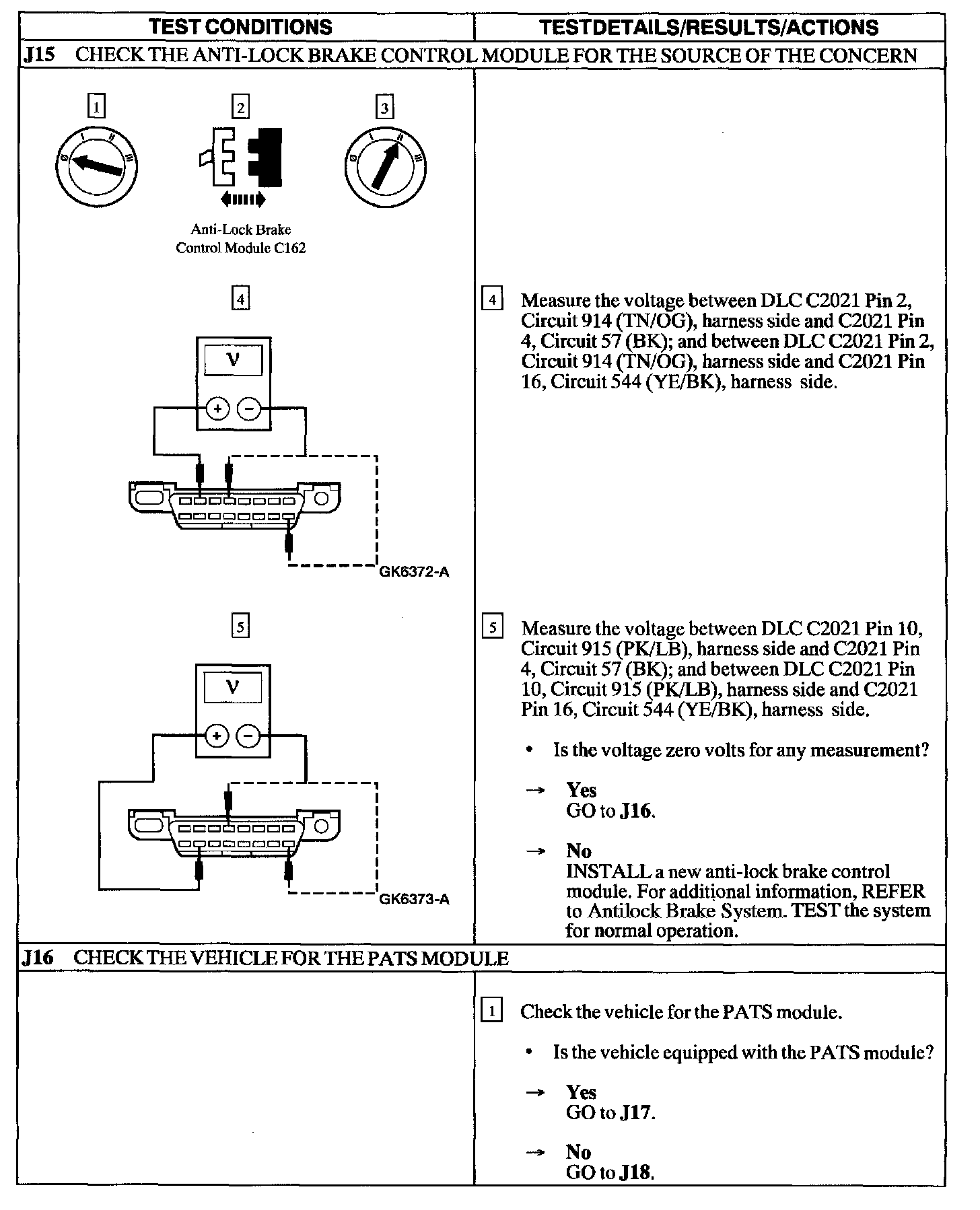

J15 - J16:

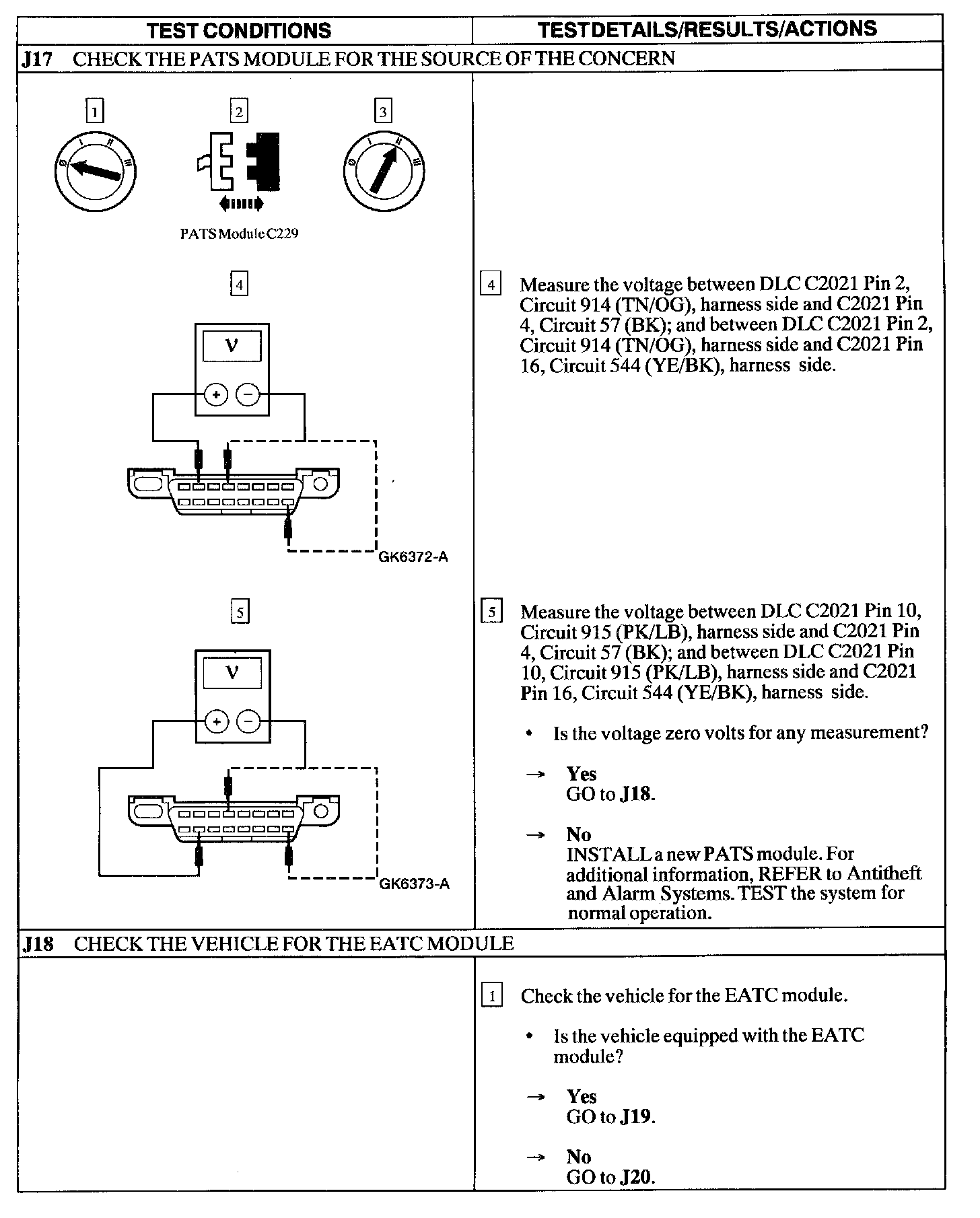

J17 - J18:

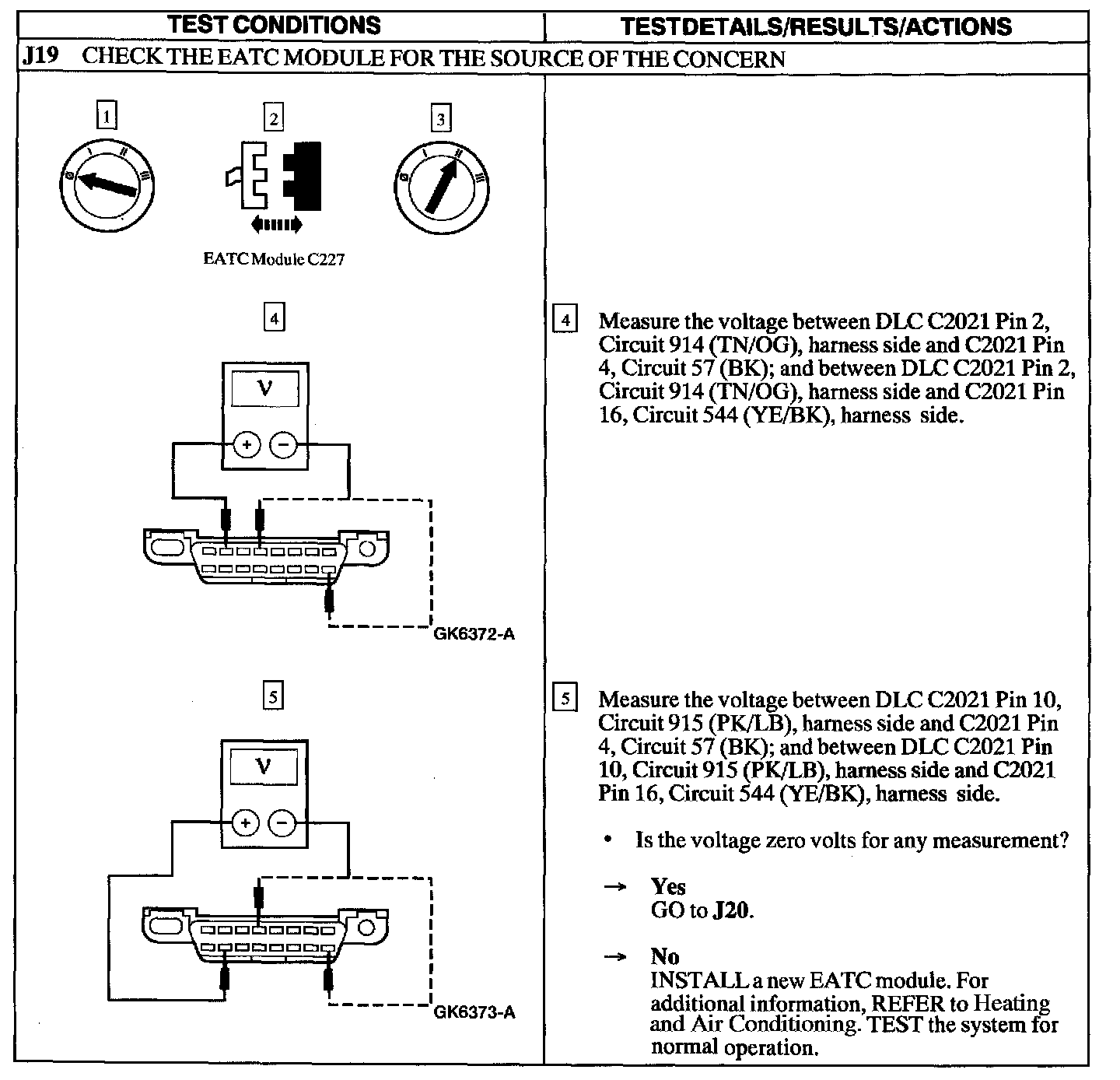

J19:

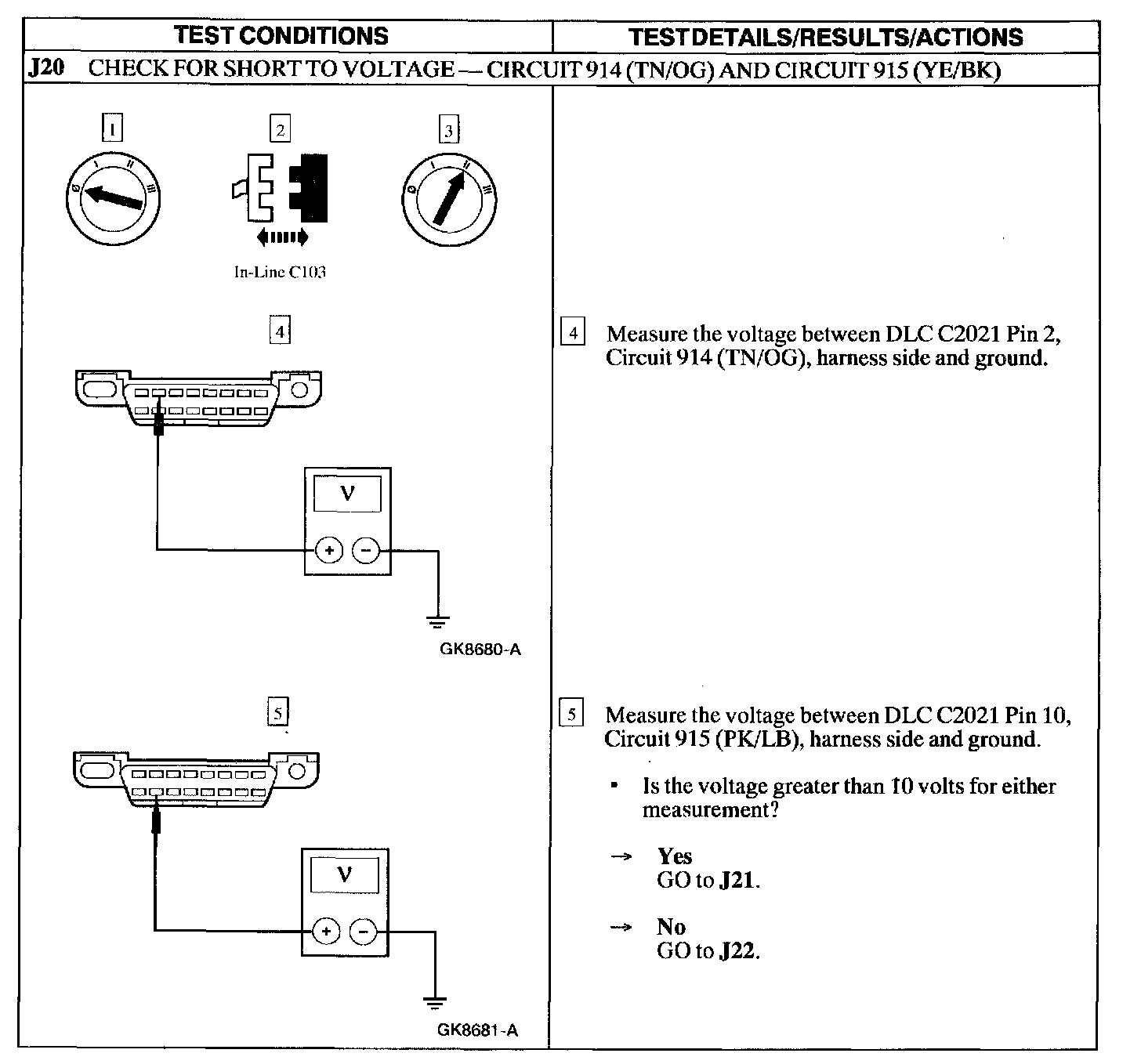

J20:

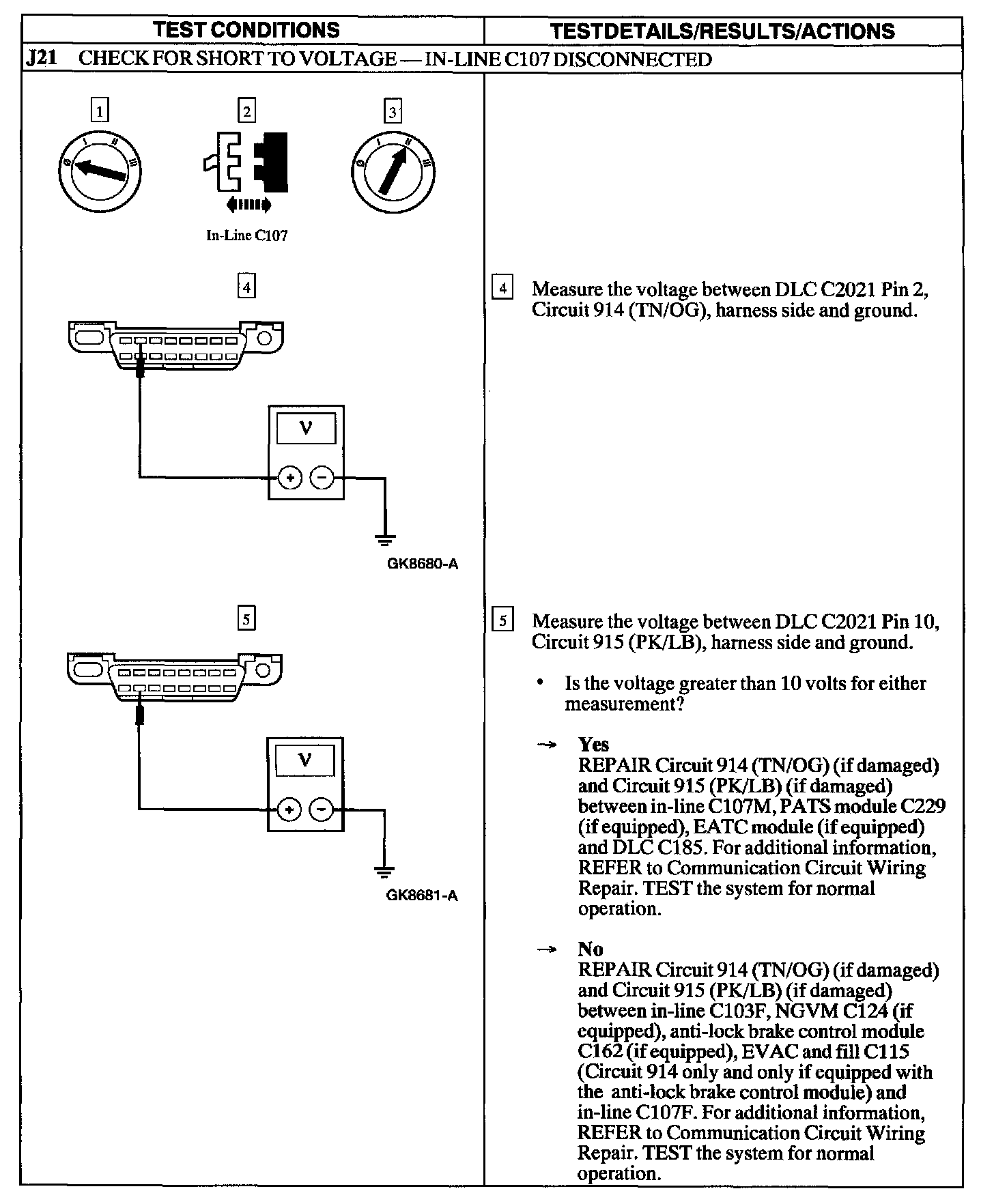

J21:

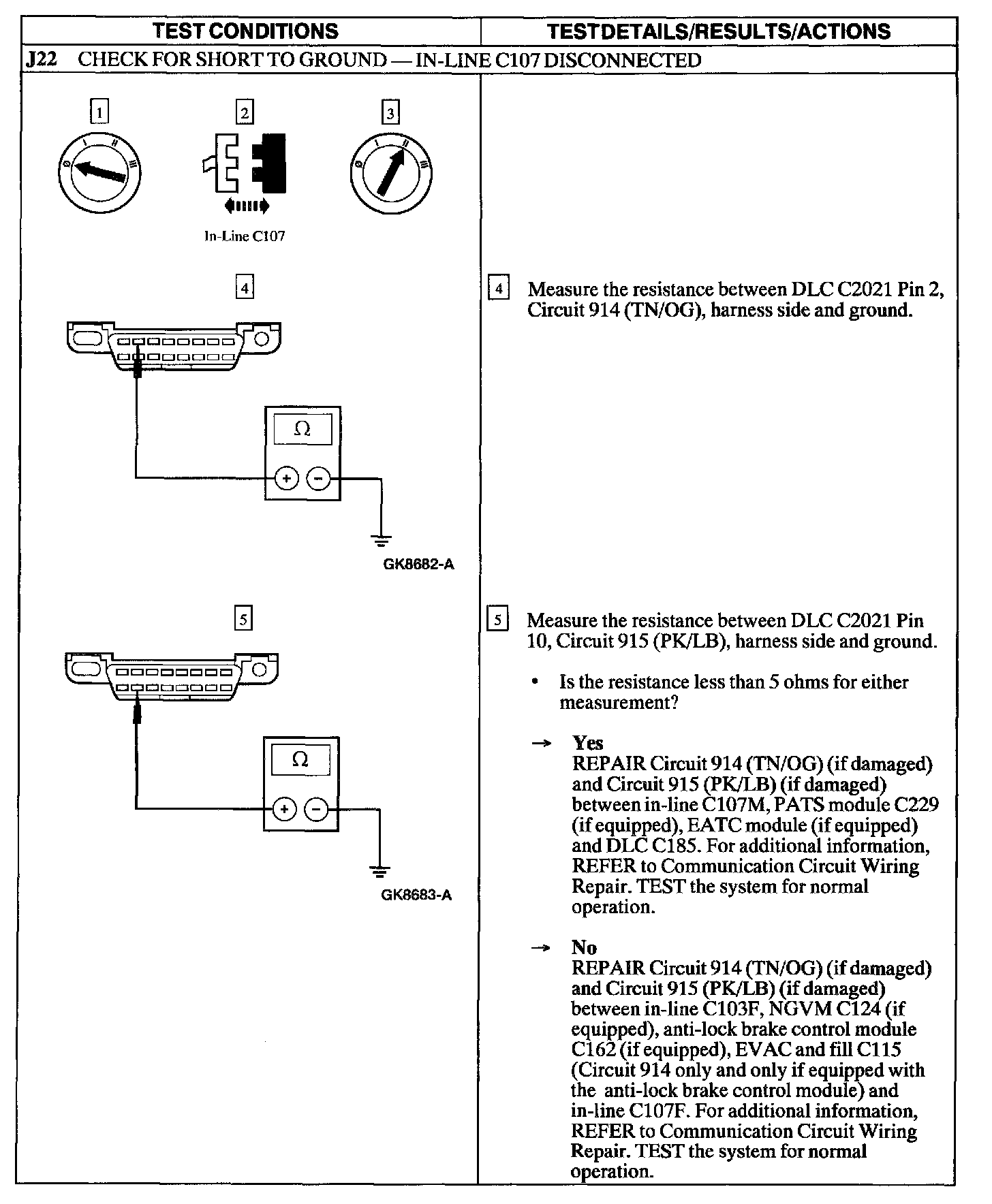

J22:
