Cruise Control Servo: Service and Repair

REMOVAL
1. Disconnect the battery ground cable.

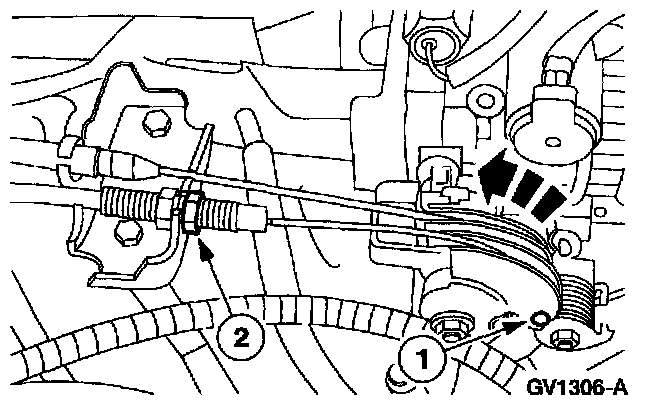

2. Remove the speed control actuator cable from the throttle.
1 Hold the throttle open and release the speed control actuator cable slug.

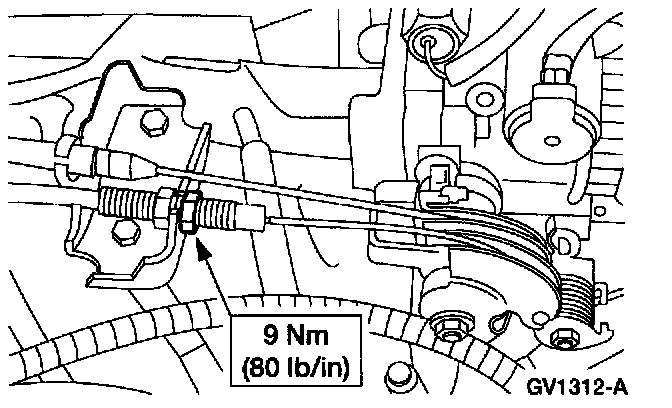

2 Loosen the speed control actuator cable adjustment nut.

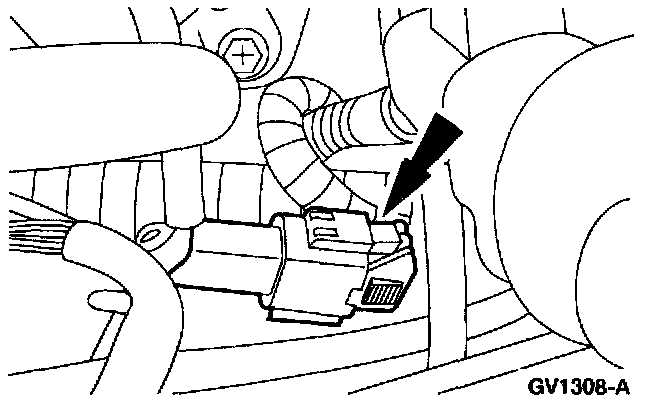

3. Disconnect the speed control servo electrical connector.

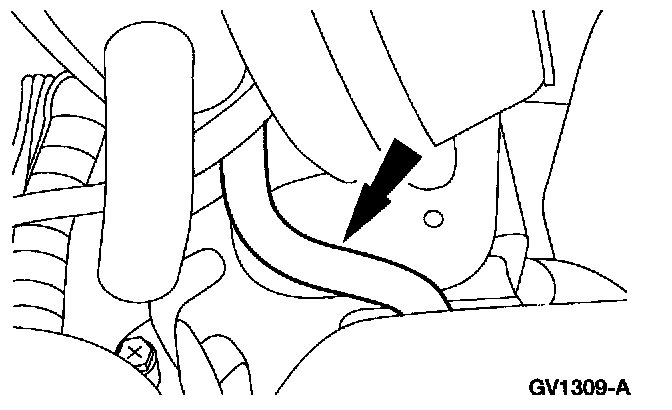

4. Disconnect the speed control servo vacuum supply hose.







5. Remove the speed control servo.
1 Remove the nuts.
2 Remove the bolts.

INSTALLATION












1. To install, reverse the removal procedure.
