Test P: The A/C Does Not Operate/Does Not Operate Correctly

P1:

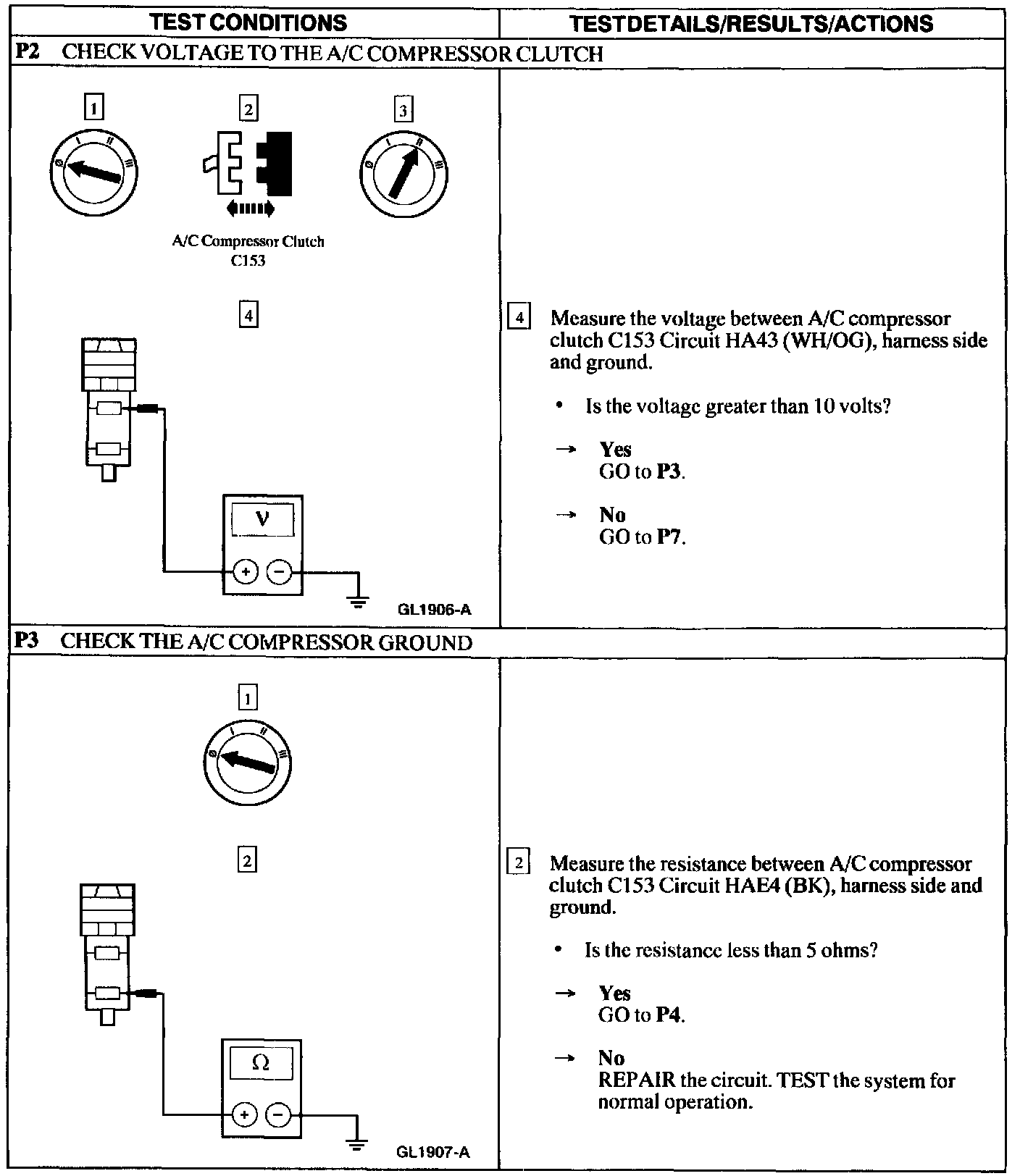

P2 - P3:

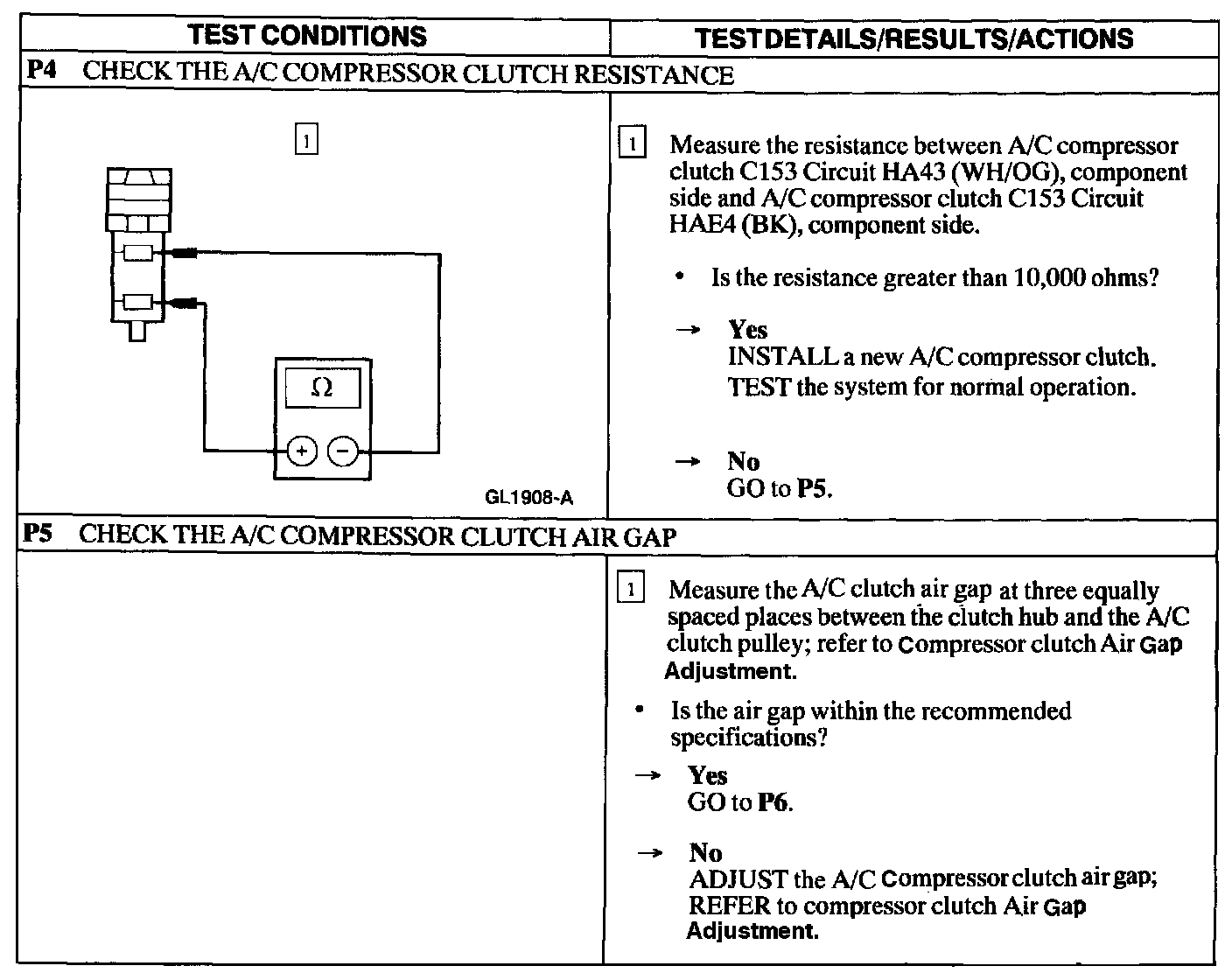

P4 - P5:

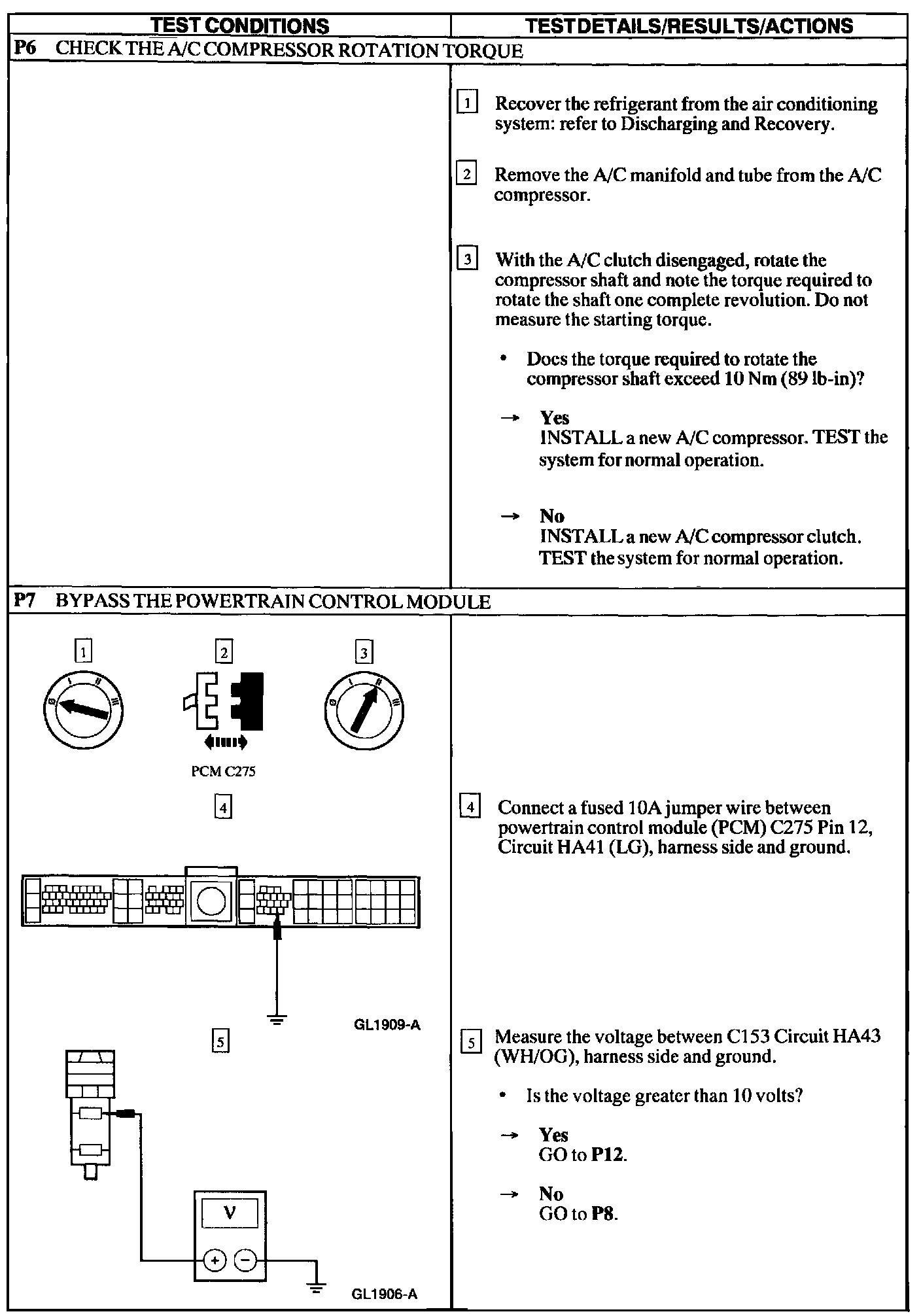

P6 - P7:

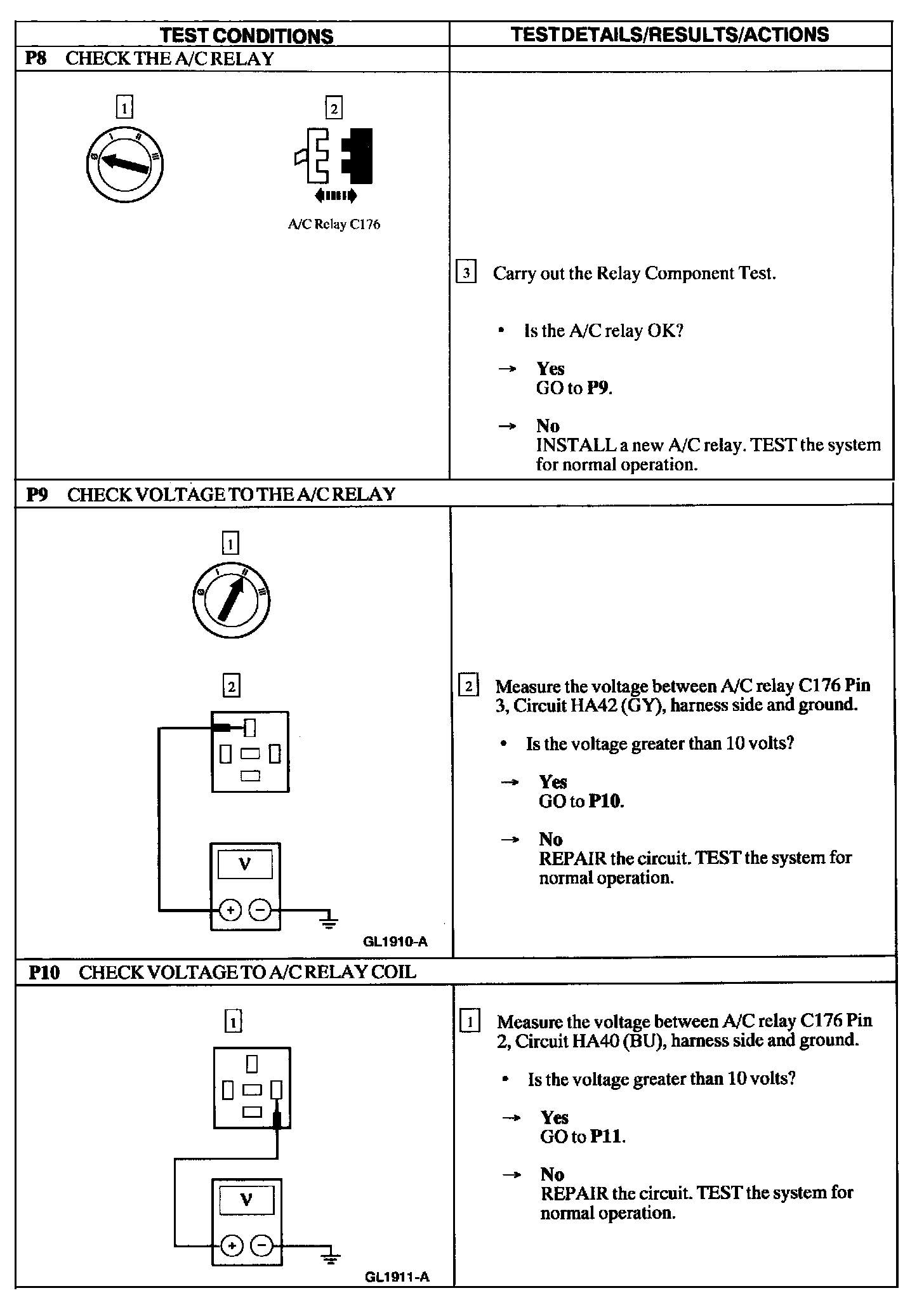

P8 - P10:

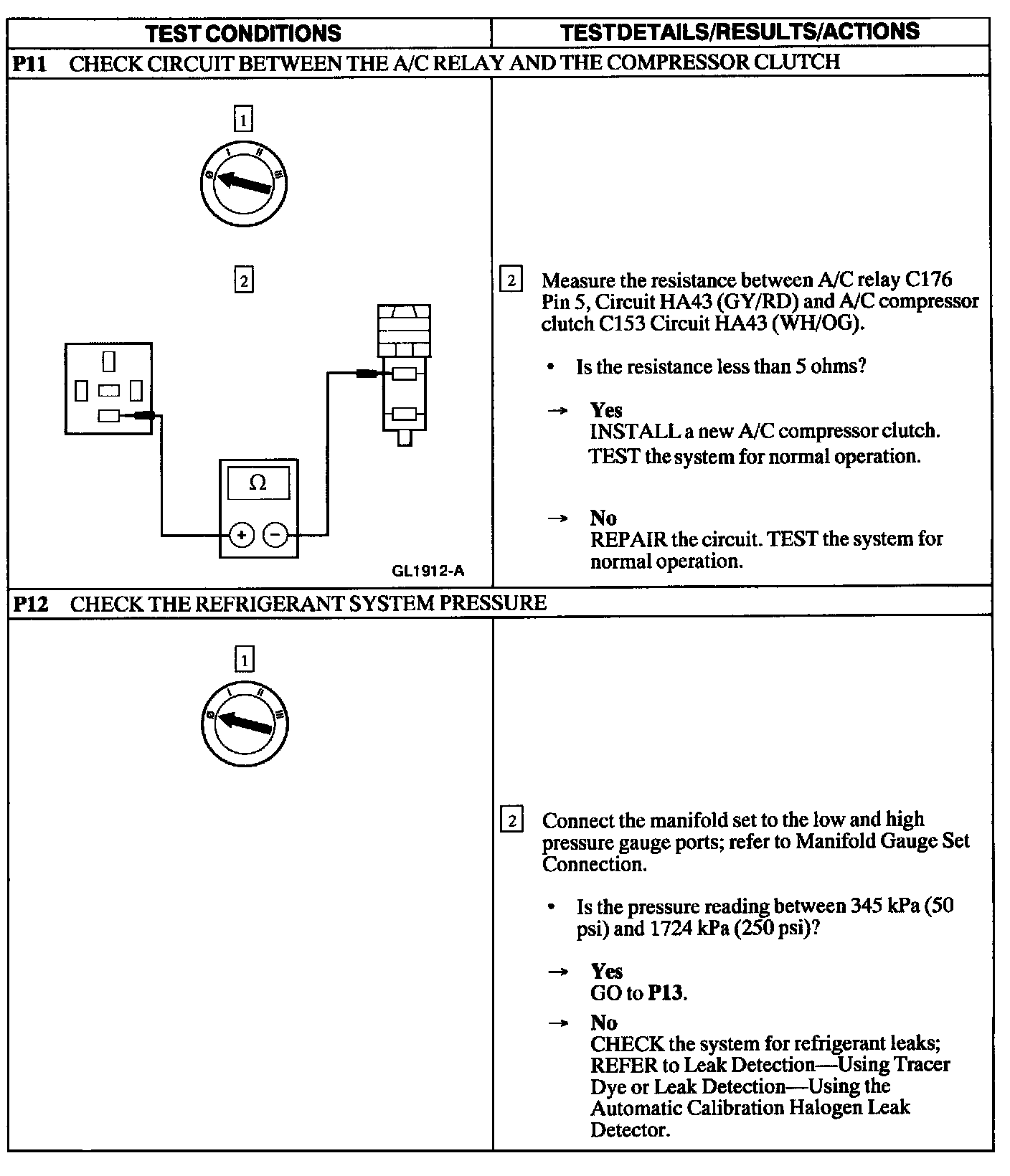

P11 - P12:

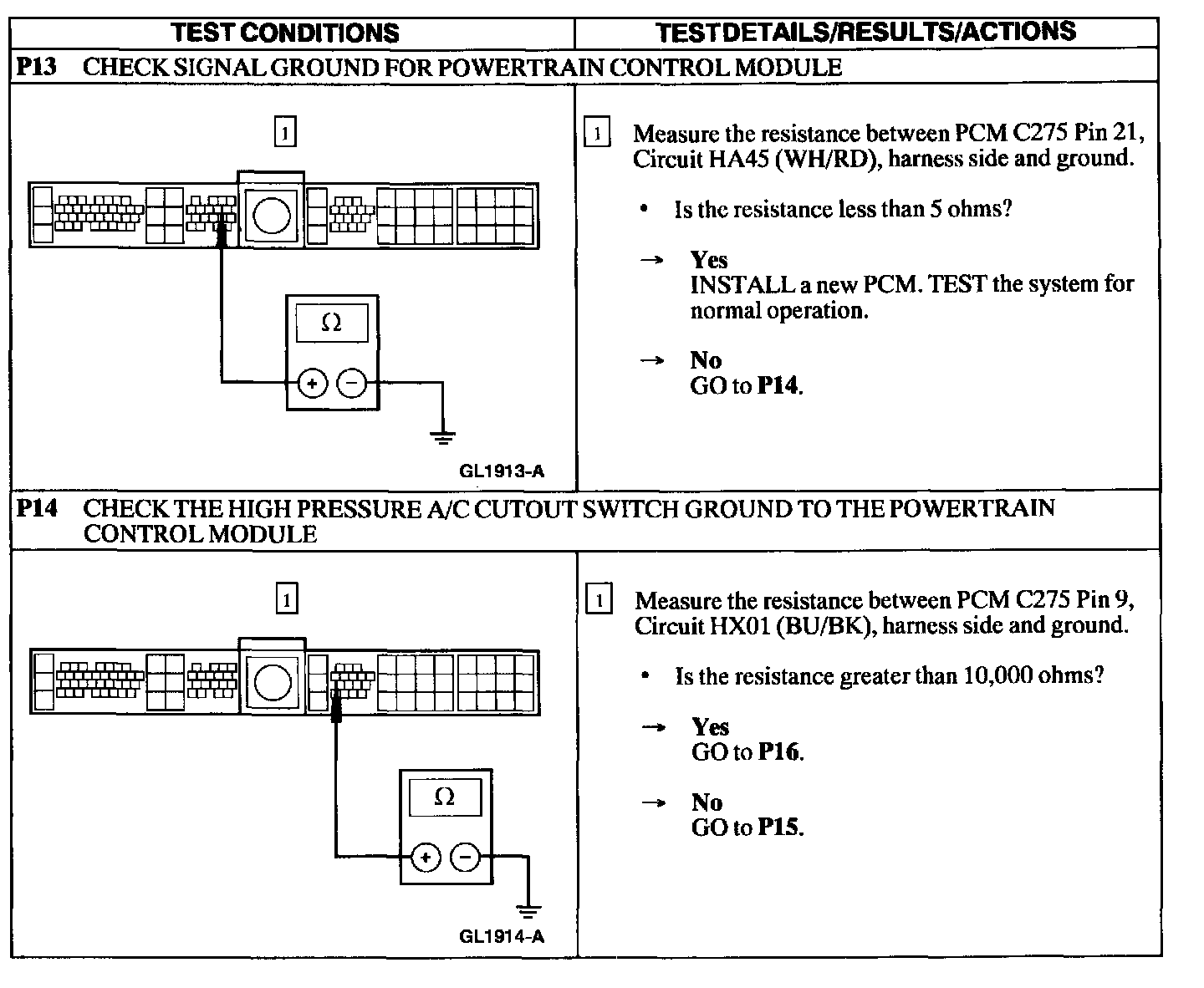

P13 - P14:

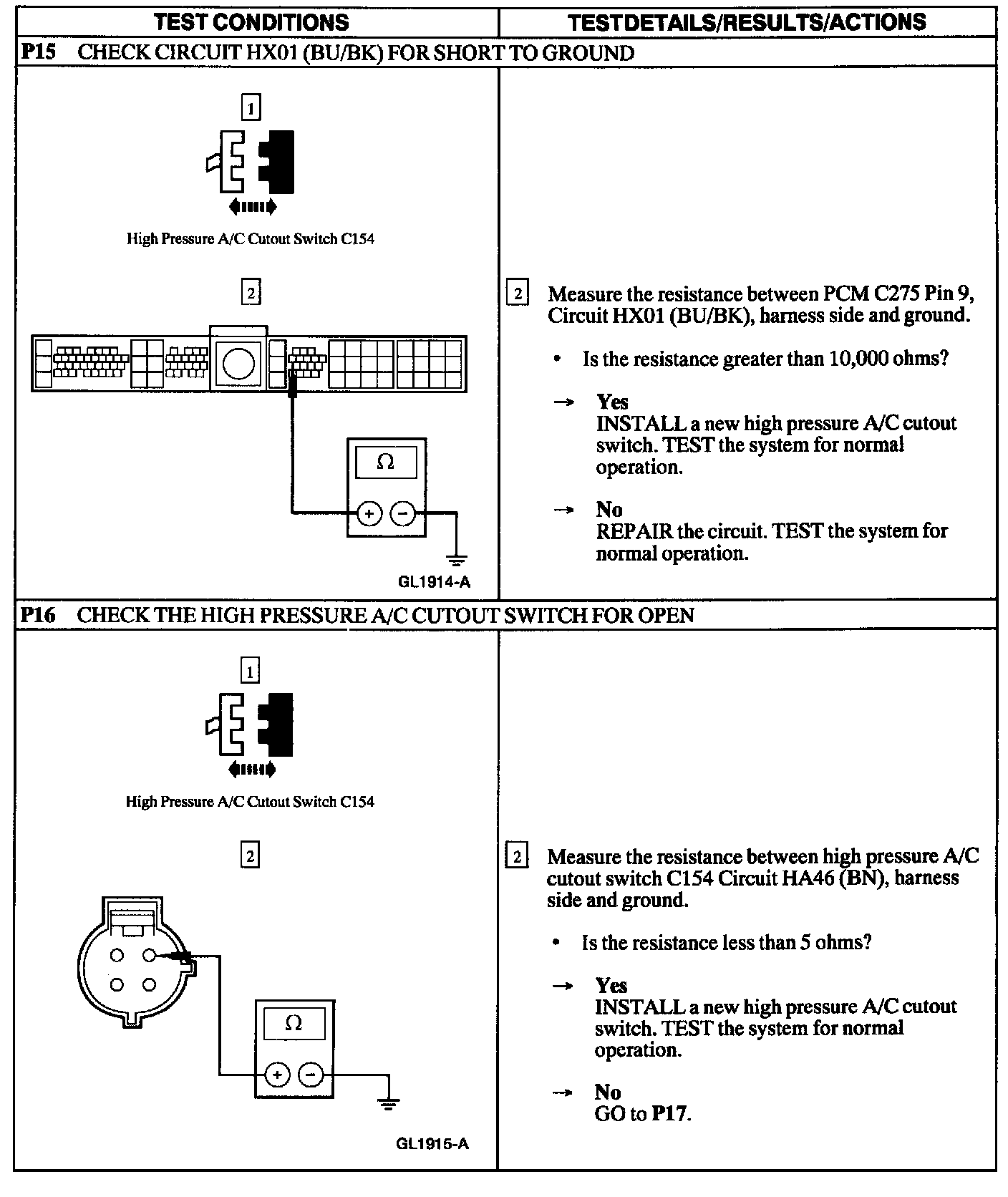

P15 - P16:

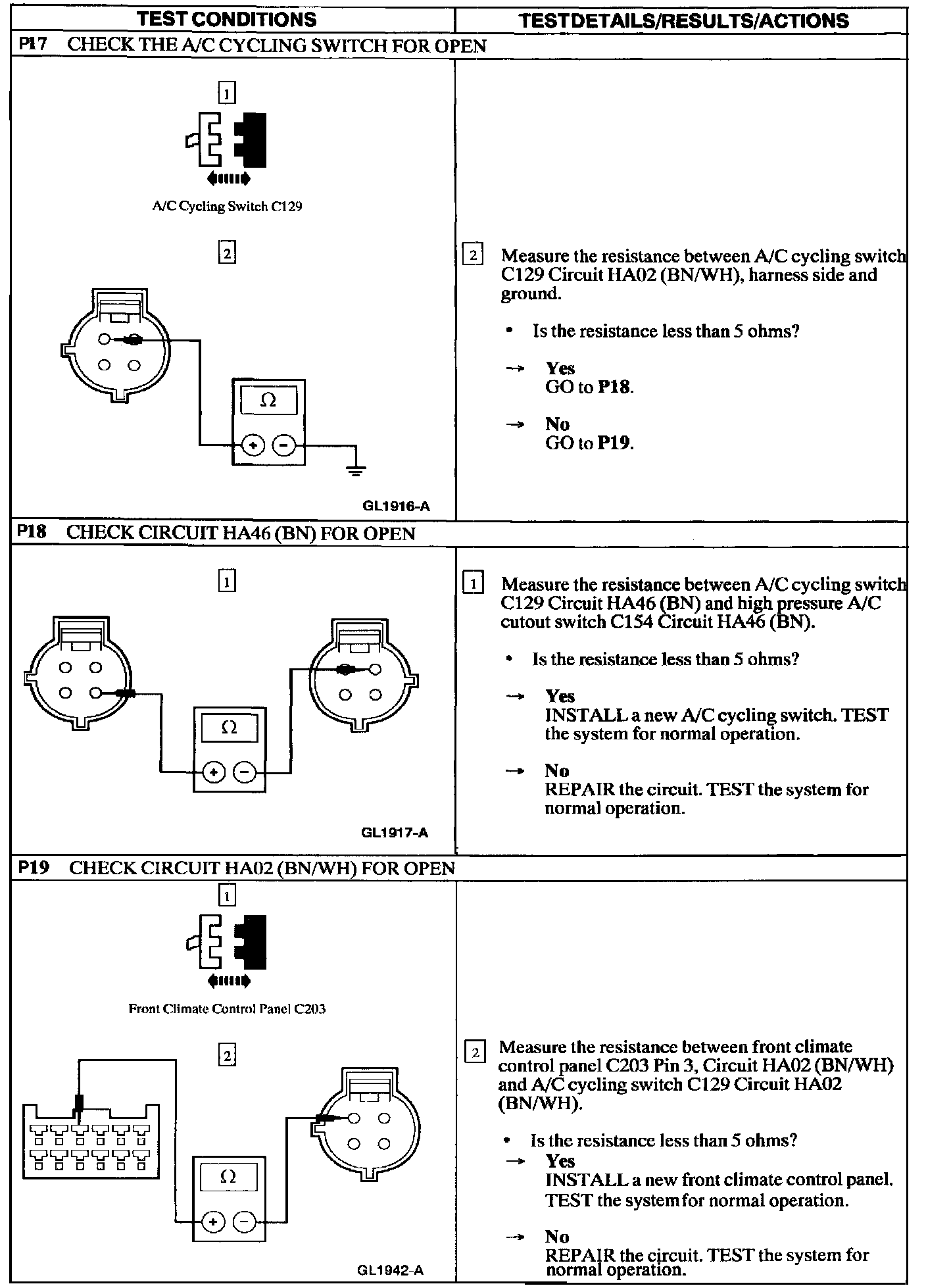

P17 - P19:
