Air Flow Meter/Sensor: Service and Repair

REMOVAL

CAUTION: The Mass Air Flow (MAF) sensor hot wire sensing element and housing are calibrated as a unit and must be repaired as a complete assembly. Do not damage the sensing element (internal to housing) or possible failure of the MAF sensor may occur.

1. Remove the air cleaner assembly. For additional information, refer to Fuel Delivery and Air Induction.







2. Remove the Mass Air Flow (MAF) sensor.
^ Disconnect the MAF sensor electrical connector.

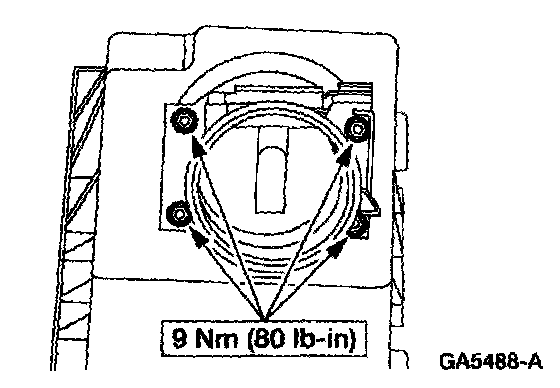

^ Remove the nuts.

INSTALLATION
1. To install, reverse the removal procedure.
