Test B: Powertrain Control Module PCM Power Relay
NOTE:This pinpoint test is intended to diagnose only the following:
-
Circuits: VPWR, PWR, GND, PCMR
-
Powertrain Control Module (PCM) relay
-
Powertrain Control Module
(PCM)Pinpoint Test Schematic And Connector:
PCM Circuit Data Sheet:

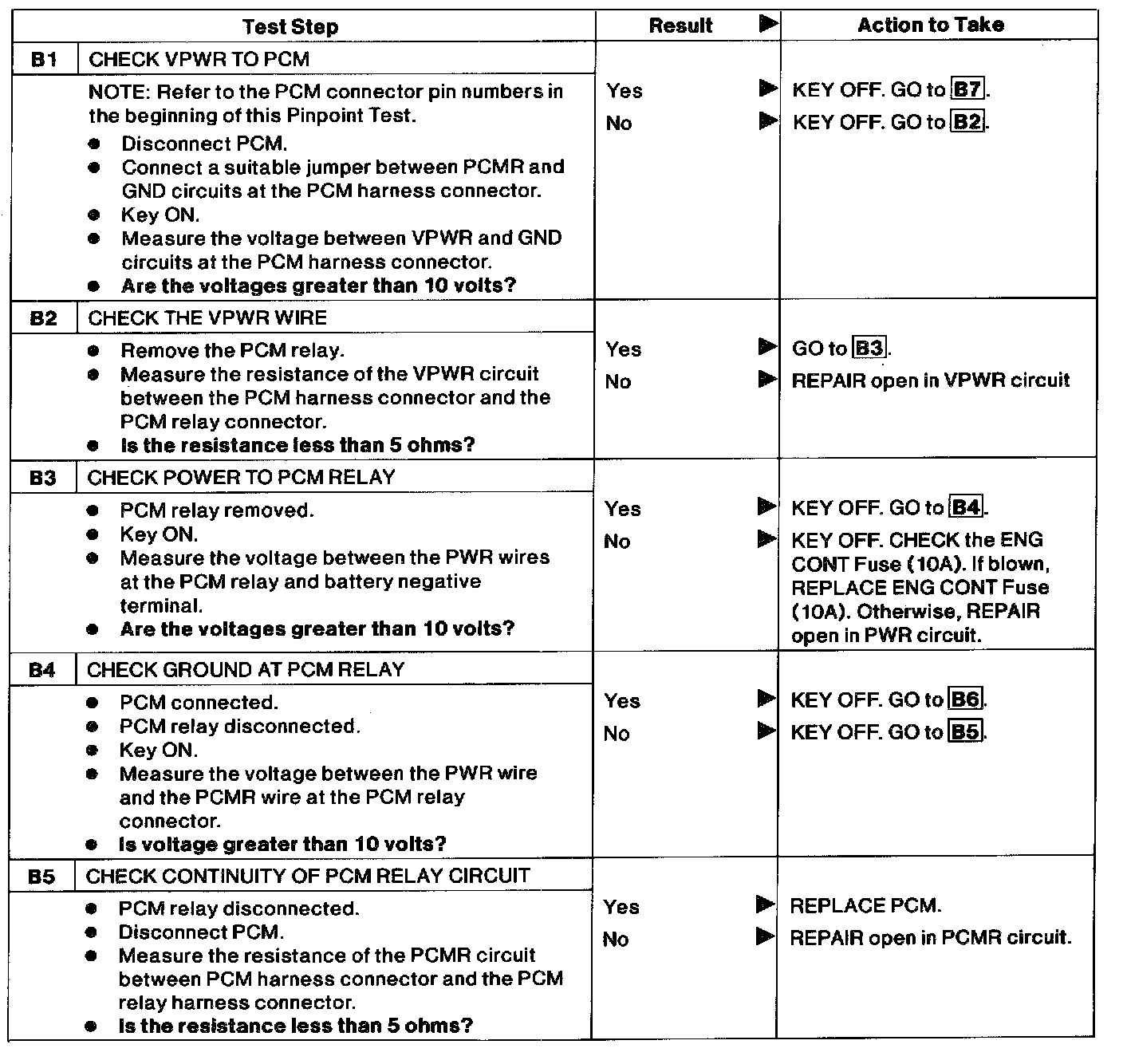

B1 - B5:

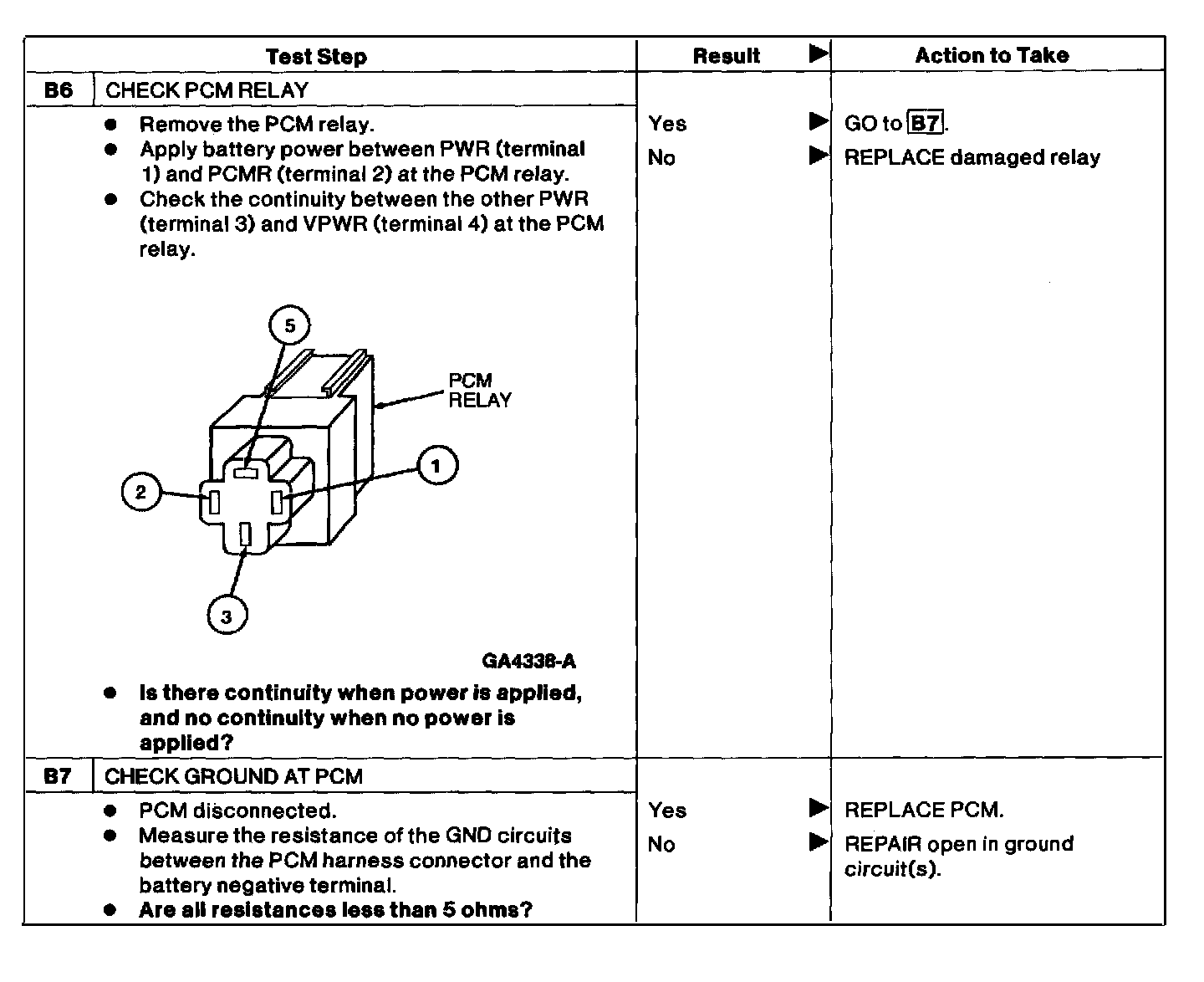

B6 - B7:
