Tests MB: Output Test Mode (OTM) Not Functioning
NOTEThis pinpoint test is intended to diagnose:
-
Connection between the scan tool and the
Powertrain Control Module (PCM) or Transaxle Control Module
(TCM) -
Connection between the scan tool and the battery power supply
-
Proper key sequence executed for output(s)

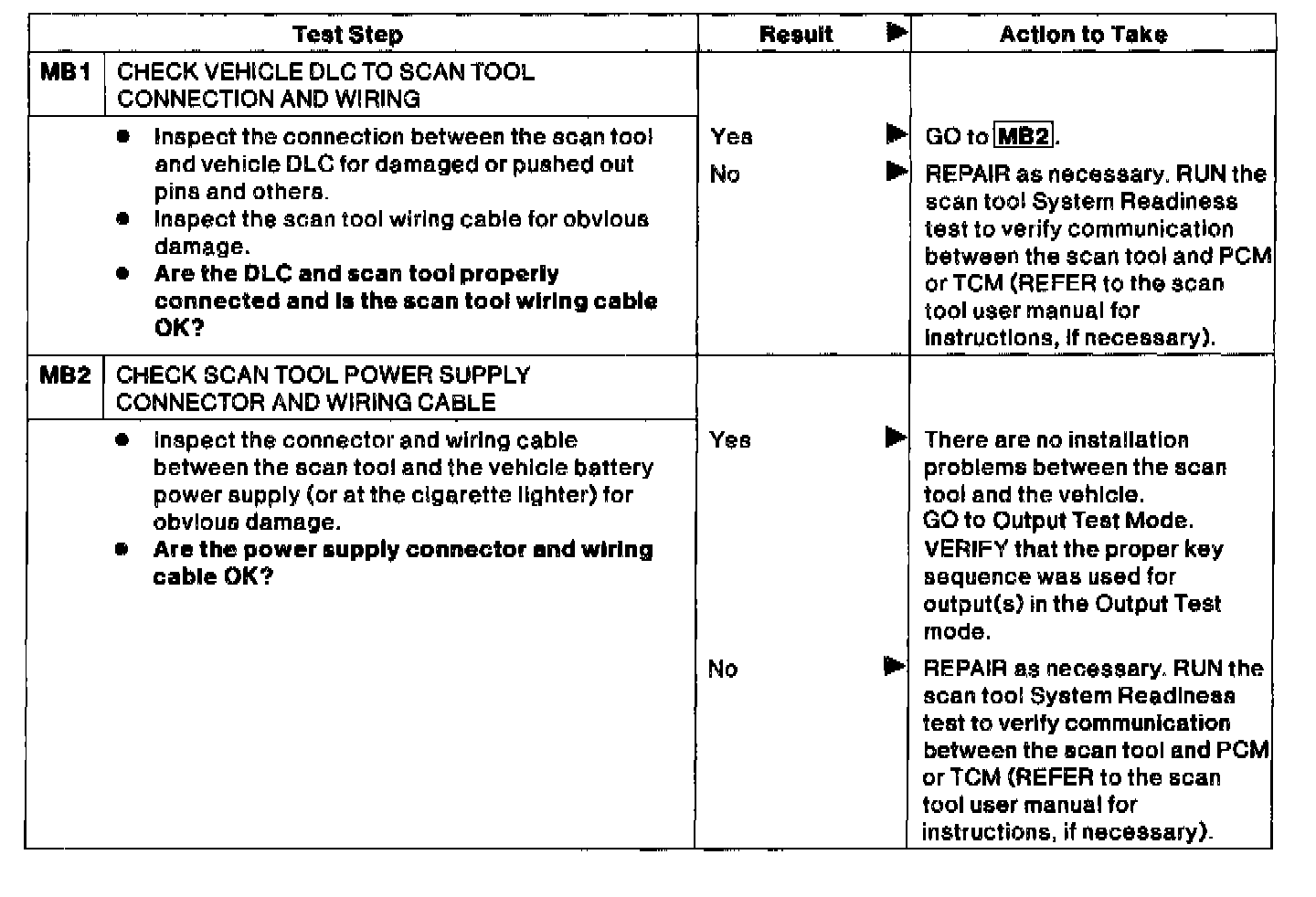

MB1 - MB2:
