Alternator: Service and Repair

1. Disconnect the battery ground cable.
2. Raise and support the vehicle.
3. Remove the engine splash shield.

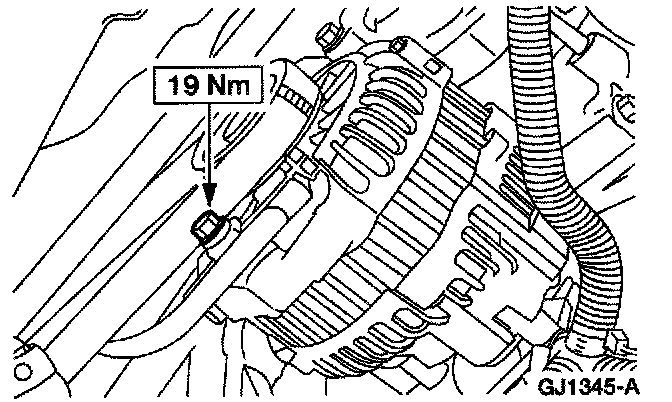

4. Remove the generator adjuster bolt.







5. Remove the two generator bolts and support the generator.







6. Disconnect the electrical connectors.

INSTALLATION












1. To install, reverse the removal procedure.

NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 16 km (10 miles) or more to relearn the strategy.
