Engine Coolant Temperature (ECT) Sensor

ENGINE COOLANT TEMPERATURE (ECT) SENSOR

REMOVAL
1. Drain the cooling system.

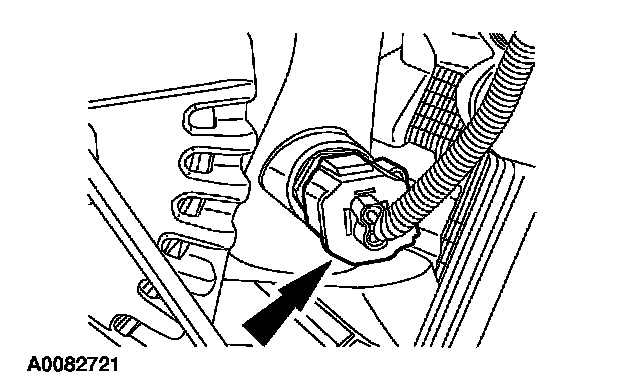

2. Disconnect the engine coolant temperature (ECT) sensor electrical connector.

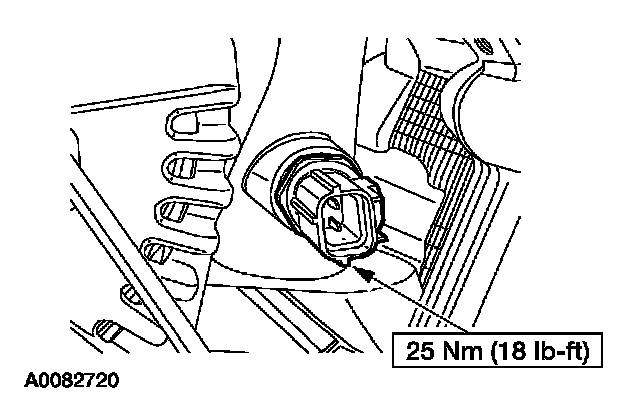

3. Remove the ECT sensor.

INSTALLATION
1. To install, reverse the removal procedure.
- Apply sealant to the ECT sensor threads.

2. Fill and bleed the cooling system.
