System Specifications
Timing chain tensioner bolts-primary
25 Nm (18 ft. lbs.)
Timing chain tensioner bolts-secondary
10 Nm (89 inch lbs.)
Crankshaft Pulley bolt and washer.
Stage 1
90 Nm (66 ft. lbs.).
Stage 2
Loosen the bolt one full turn.
Stage 3
50 Nm (37 ft. lbs.).
Stage 4
additional 85 to 95 degrees.

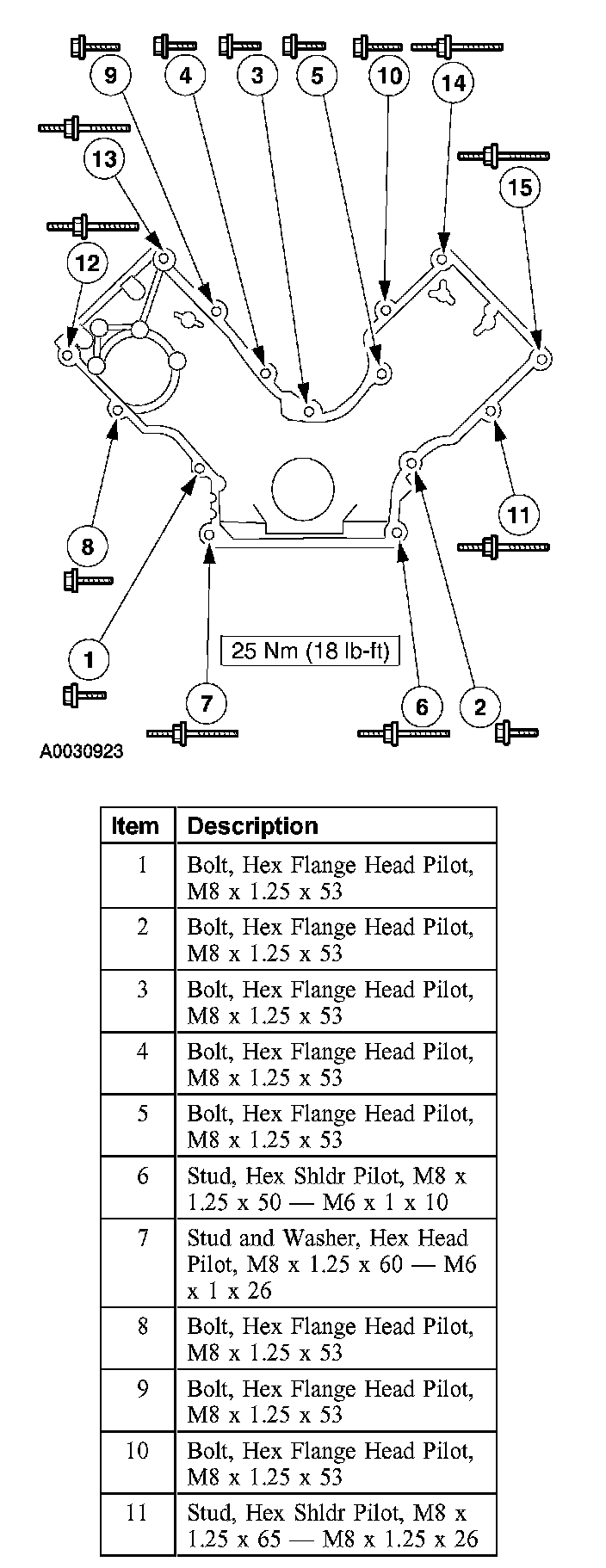

Part 1 Of 2:

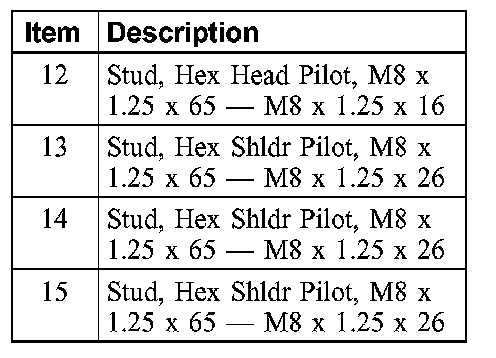

Part 2 Of 2:
Timing Cover bolts
