Cruise Control Servo Cable: Service and Repair

SPEED CONTROL CABLE

REMOVAL
1. Remove the air cleaner assembly.

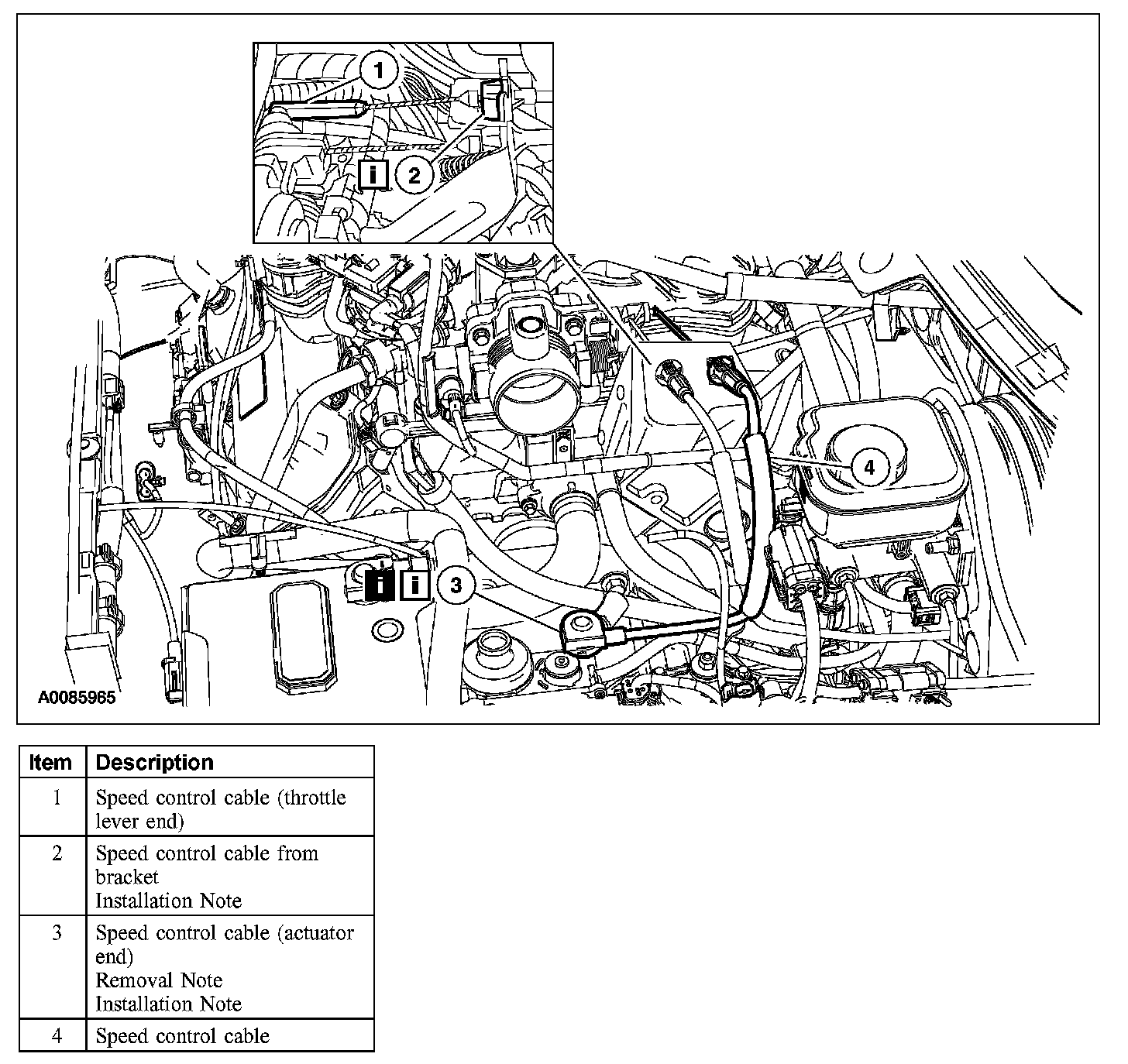

2. Remove the parts in the order indicated in the illustration and table.

Item 3: Speed Control Cable Removal Note

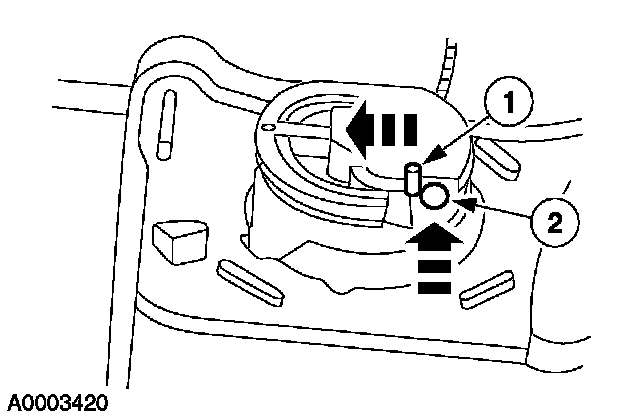

1. Remove the speed control cable cap.
1 Press the locking tab.
2 Rotate the speed control cable cap counterclockwise.

INSTALLATION
1. To install, reverse the removal procedure.

Item 3: Speed Control Cable Installation Note







1. NOTE: Incorrect wrapping of the speed control cable core wire around the speed control actuator pulley may result in a high idle condition.

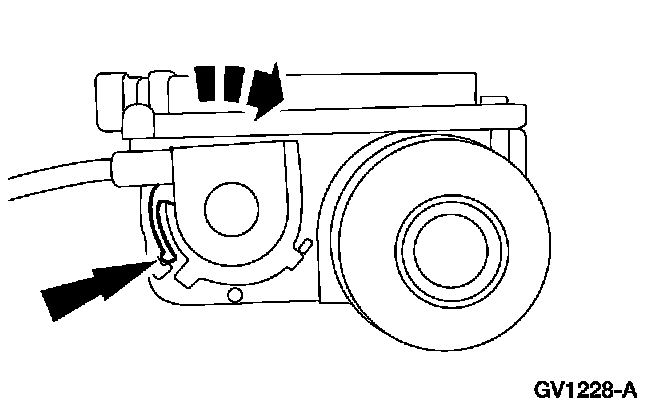

Insert the speed control cable slug into the speed control actuator pulley slot.

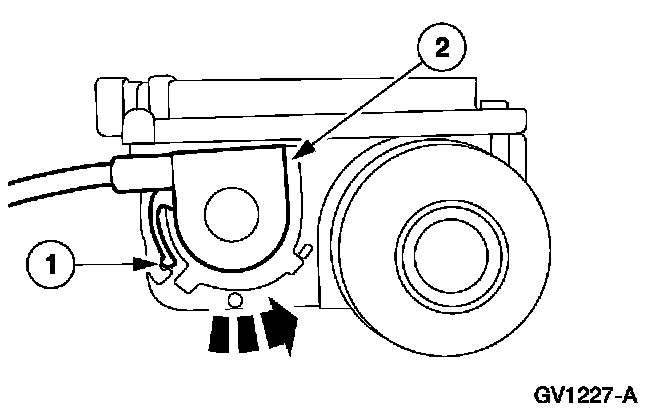

1 Gently push the retaining spring.
2 Insert the speed control cable slug completely into the speed control actuator pulley slot.







2. NOTE: Make sure the rubber seal is correctly seated onto the speed control cable cap.

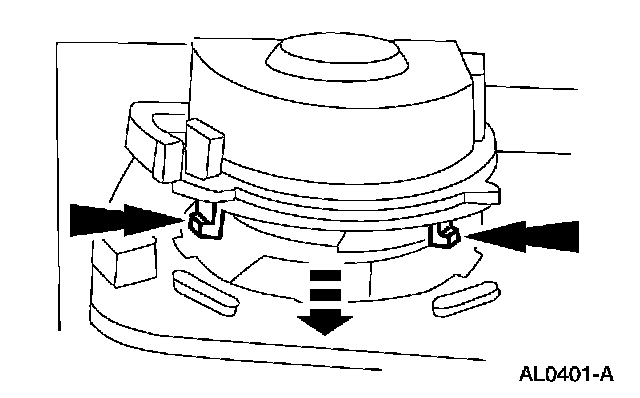

Align the speed control cable cap tabs with the slots in the speed control actuator housing and seat the speed control cable cap.







3. Rotate the speed control cable cap clockwise until the locking tab engages.

Item 2: Speed Control Cable Installation Note
1. Make sure the tabs on the speed control cable are locked in place and that the cable is fully seated in the bracket.
